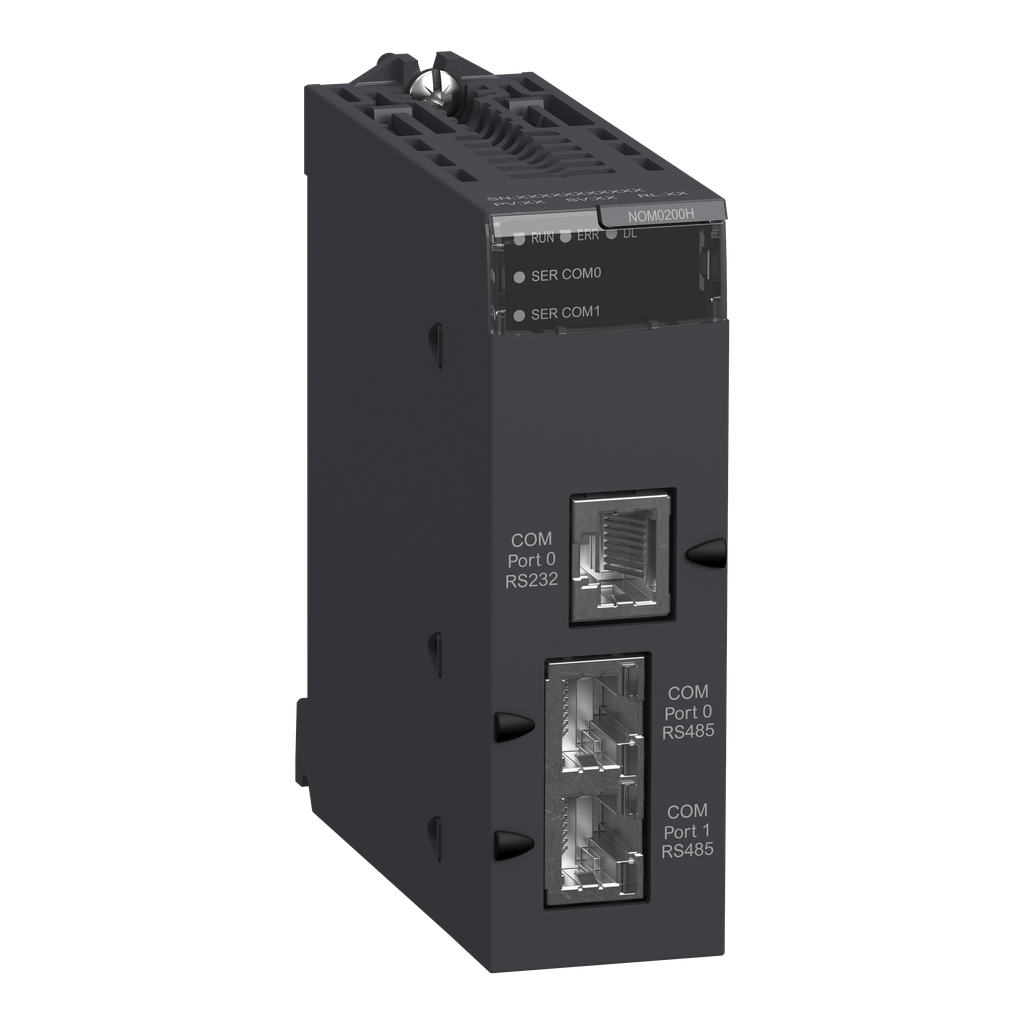

This serial link module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This module has 2 RS-485/232 ports in Modbus and character mode for harsh chemical environments. It is an RTU module with a current consumption of 80mA at 24V DC, work with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. Integrated connections are RS232 RJ45 115.2kbps and RS485 RJ45 57.6kbps. It is an IP20 rated product. It weighs 0.23kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon X80 |
---|---|
Product Or Component Type | serial links module |
Integrated Connection Type |
|
Product Specific Application | for severe environments |
Protective Treatment | conformal coating |
Concept | Serial link |
Warranty | 18 months |
Supply | internal power supply via rack |
Current Consumption | 80 mA 24 V DC |
Marking | CE |
Net Weight | 0.23 kg |
Local Signalling |
|
Module Format | standard |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP070204EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI0702004EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ambient Air Temperature For Operation | -25-70 °C |
Standards |
|
Product Certifications |
|
Environmental Characteristic |
|
Directives |
|
Relative Humidity | 10-95 % without condensation |
Ip Degree Of Protection | IP20 |
