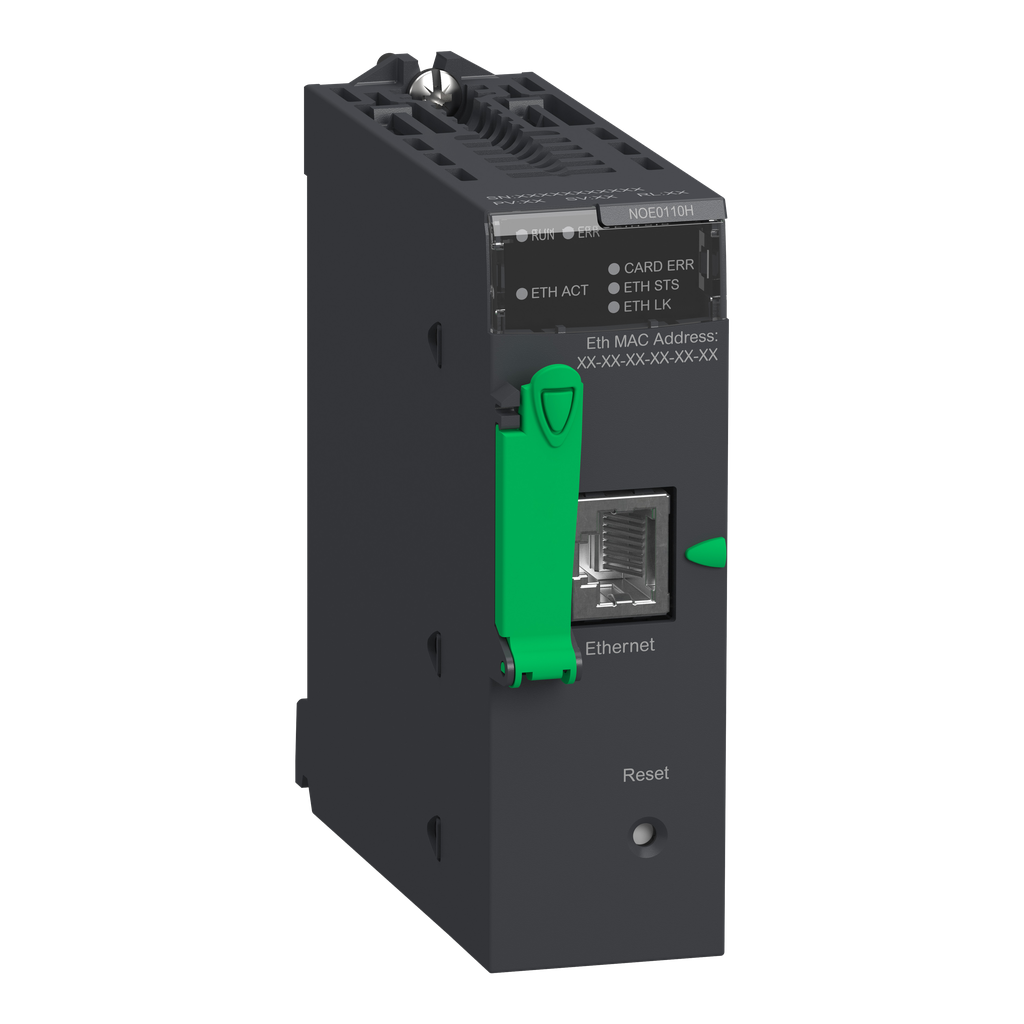

Ethernet TCP/IP network module, Modicon M340 automation platform, transparent ready class C30 server
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet TCP/IP network module supports RJ45 10/100 connection. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It has reset push-button cold control. It is an IP20 rated product. Communication services are bandwidth management, data editor (via PC, pocket PC or PDA terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable etc. It weighs 0.2kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Integrated Connection Type | Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 |
|---|---|
| Range Of Product | Modicon M340 automation platform |
| Product Specific Application | for severe environments |
| Product Or Component Type | Ethernet TCP/IP network module |
| Protective Treatment | conformal coating |
| Concept | Transparent Ready |
| Warranty | 18 months |
| Communication Service |
|
| Local Signalling |
|
| Supply | internal power supply via rack |
| Current Consumption | 90 mA 24 V DC |
| Module Format | standard |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Marking | CE |
| Net Weight | 0.2 kg |
| Memory Description |
|
| Control Type | RESET push-button cold restart |
| Memory Usage |
|
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Ambient Air Temperature For Operation | -25-70 °C |
| Directives |
|
| Standards |
|
| Relative Humidity | 10-95 % without condensation |
| Product Certifications |
|
| Environmental Characteristic |
|
| Ip Degree Of Protection | IP20 |
