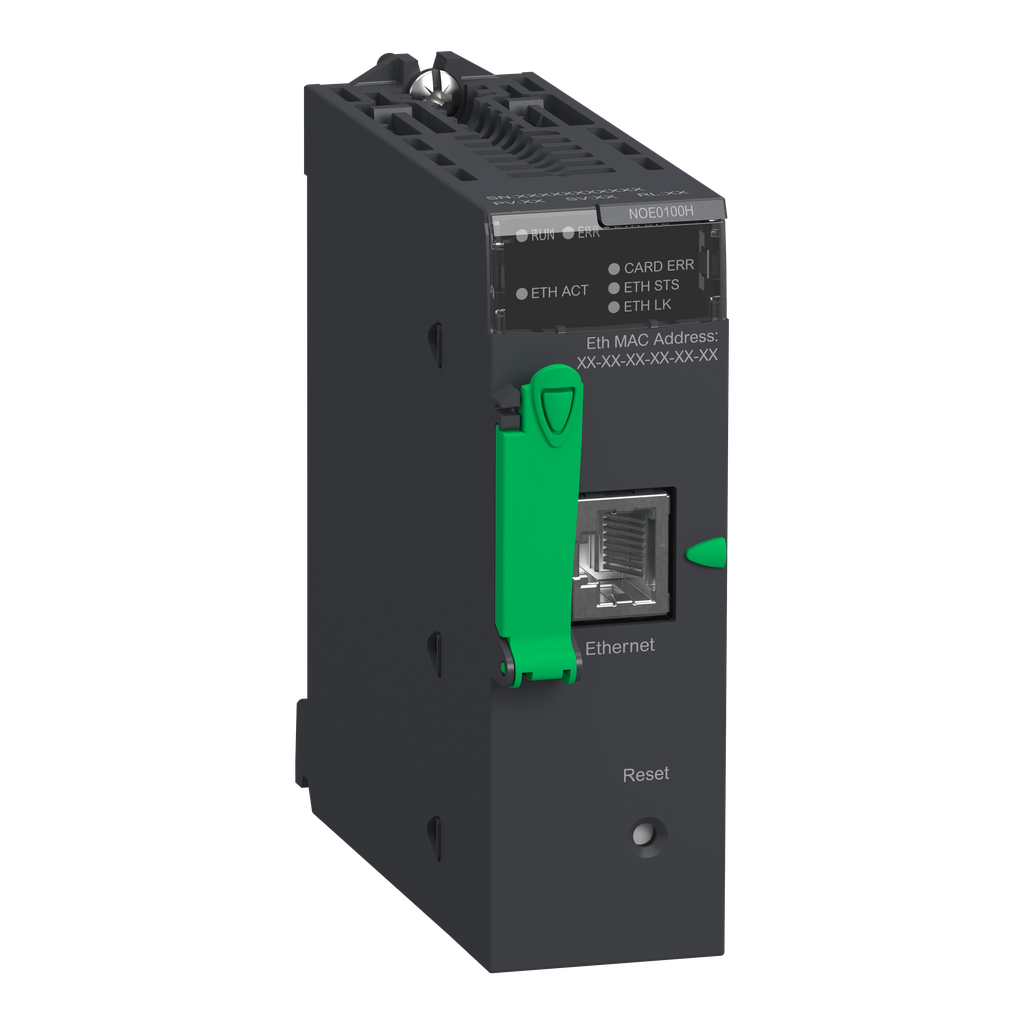

network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card, for severe environments
This Ethernet TCP/IP network module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has conformal coating. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable. It is an IP20 rated product. It weighs 0.2kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with flash memory card (BMXRWSC016M). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon M340 automation platform |
|---|---|
| Product Or Component Type | Ethernet TCP/IP network module |
| Integrated Connection Type | Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class B30 |
| Product Specific Application | for severe environments |
| Protective Treatment | conformal coating |
| Concept | Transparent Ready |
| Warranty | 18 months |
| Supply | internal power supply via rack |
| Current Consumption | 90 mA 24 V DC |
| Marking | CE |
| Net Weight | 0.2 kg |
| Control Type | RESET push-button cold restart |
| Communication Service |
|
| Local Signalling |
|
| Module Format | standard |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Memory Description | supplied Flash memory card (BMXRWSC016M) |
| Memory Usage |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Product Certifications |
|
| Environmental Characteristic |
|
| Directives |
|
| Relative Humidity | 10-95 % without condensation |
| Ip Degree Of Protection | IP20 |
