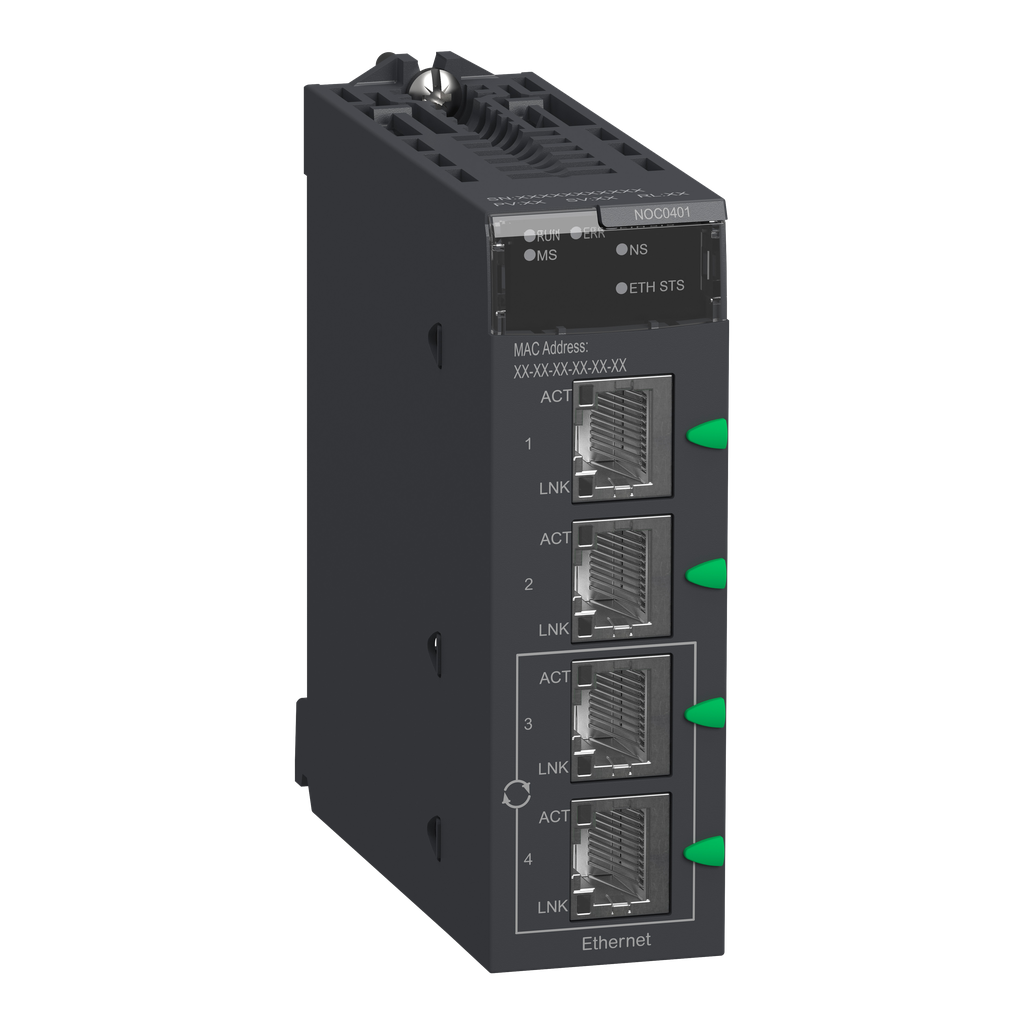

This Ethernet TCP/IP network module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has 4 x RJ45 10/100Mbps connections. It is a module with a current consumption of 555mA at 3.3V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, Modbus TCP I/O scanner and messaging, Ethernet/IP I/O scanner and messaging, embedded 4-port switch etc. It is an IP20 rated product. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE, ODVA, UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC), if equipped with a standard BMXP341000 processor or BMXP3420102, BMXP3420302, BMXP3420102CL, BMXP3420302CL Performance processor. It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon M340 automation platform |
---|---|
Product Or Component Type | Ethernet TCP/IP network module |
Integrated Connection Type | Ethernet RJ45 10/100 Mbit/s 4 twisted pairs transparent ready class B30 |
Protective Treatment | TC |
Concept | Transparent Ready |
Warranty | 18 months |
Supply | internal power supply via rack |
Current Consumption | 555 mA 3.3 V DC |
Marking | CE |
Net Weight | 0.2 kg |
Control Type | processor or system fault (ERR) |
Communication Service |
|
Local Signalling |
|
Module Format | standard |
Port Ethernet | 10BASE-T/100BASE-TX |
Memory Usage |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP070204EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI0702004EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ambient Air Temperature For Operation | 0-60 °C |
Standards |
|
Product Certifications |
|
Environmental Characteristic | hazardous location class I division 2 |
Directives |
|
Relative Humidity | 10-95 % without condensation |
Ip Degree Of Protection | IP20 |
