BMXFTW501

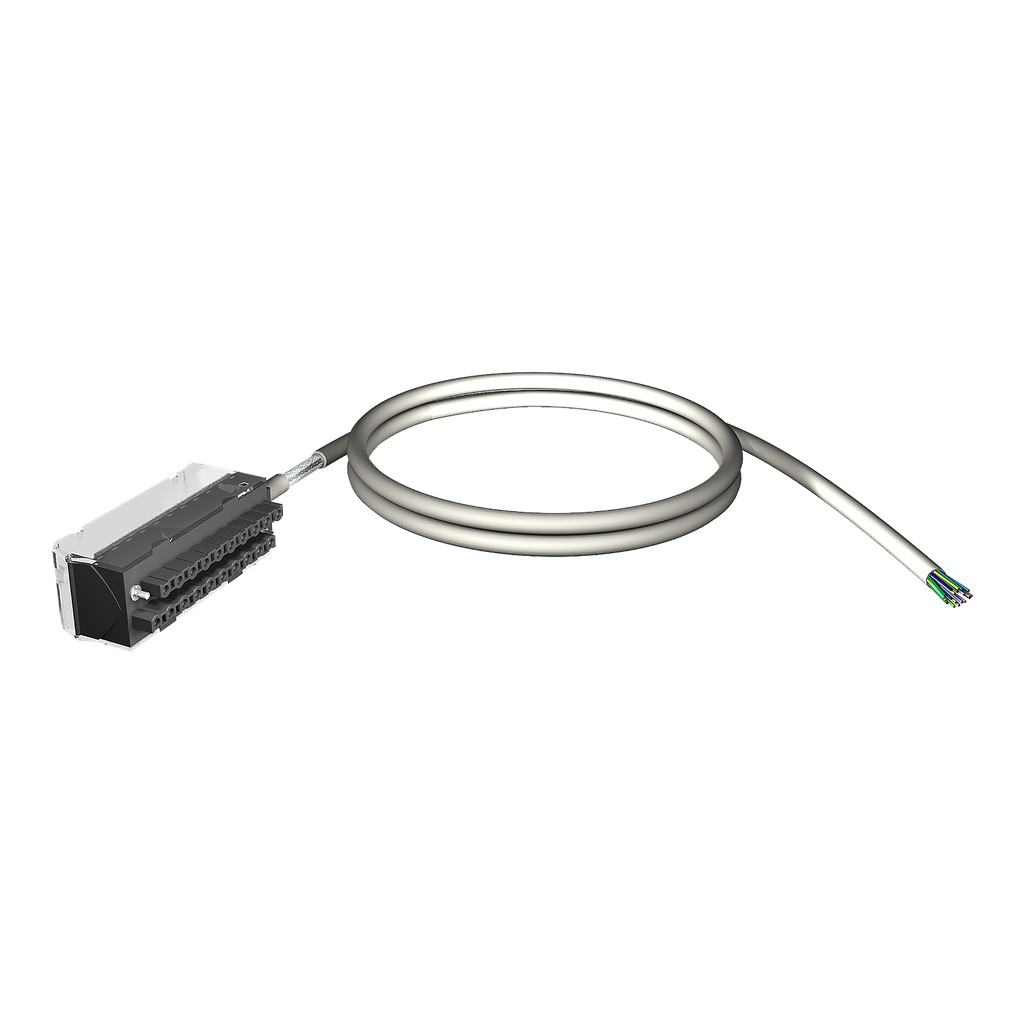

cord set, Modicon M340, 20-way terminal, one end flying leads, 5m
This preassembled cordset is part of the Modicon X80 modules. It is compatible with 16-channel I/O modules with removable terminal block. It enables the connection between the I/O of modules with 20-way removable terminal block and the sensors, preactuators. It is equipped with one 20-way spring-type removable terminal block and one end with color-coded flying leads. It is 5 meters long.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Number Of Cables | 1 |
|---|---|
| Electrical Connection |
|
| Range Of Product | Modicon X80 |
| Accessory / Separate Part Designation | preformed cordset with one end with flying leads |
| Cable Length | 5 m |
| Accessory / Separate Part Type | preformed cordset |
| Accessory / Separate Part Destination | for I/O module with removable terminal block |
| Warranty | 18 months |
| Total Number Of Wires | 20 |
| Wire Section | 0.324 mm² |
| Net Weight | 1.4 kg |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1312019EN |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
