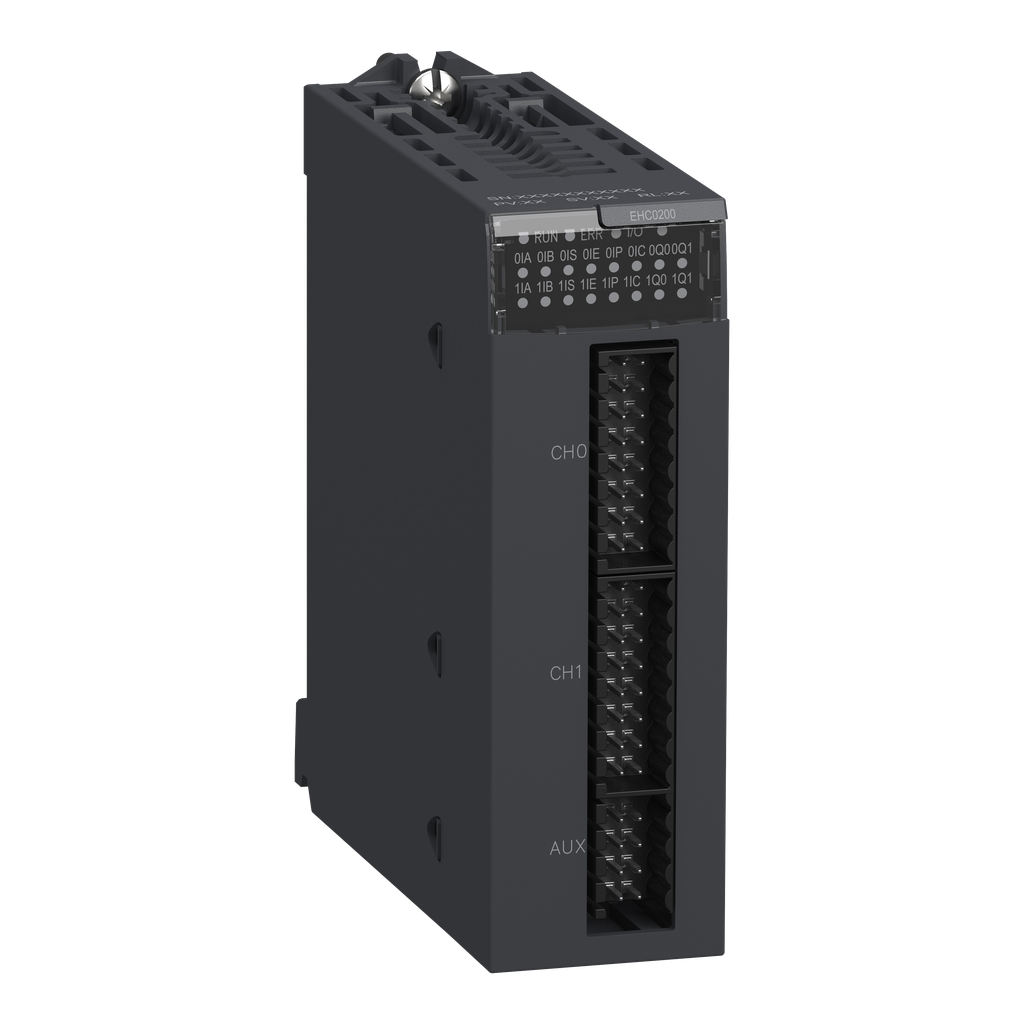

counter module, Modicon M340, high speed, 2 channels
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This high speed counter module has 2 channels, 6 inputs and 2 outputs. It is a counter module with an I/O voltage of 24V DC and a current consumption of 100mA at 3.3V DC bus, 40mA at 24V DC rack, 80mA at 24V DC sensor. Counter functions are loop (modulo) counting, width modulation, down counting etc. This product is robust, high quality and based on the latest innovative technology. It is furnished with 10-pin connector with for wiring auxiliary input and sensor power supply, 16-pin connector for wiring the sensors of counter 0 and 16-pin connector for wiring the sensors of counter 1. It is an IP20 rated product. It weighs 0.112kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 19.2V to 30V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10V to 30V totem pole. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon M340 automation platform |
|---|---|
| Product Or Component Type | counter module |
| Number Of Inputs | 6-6 |
| Input Compatibility |
|
| Number Of Channels | 2 |
| Input Voltage | 24 V DC type 3 |
| Output Voltage | 24 V DC |
| Maximum Counting Frequency | 60000 Hz |
| Number Of Outputs | 2 |
| Warranty | 18 months |
| Electrical Connection |
|
| Maximum Load Current |
|
| Discrete Output Logic | positive or negative configurable |
| Cycle Time | 1 ms |
| Counter Functions |
|
| Maximum Voltage Drop | <3 V at state 1 |
| Overlap Time | 0.2 ms |
| Current Consumption |
|
| Current State 0 Guaranteed | <= 1.5 mA |
| Input Current | 2 mA at 11 V |
| Net Weight | 0.112 kg |
| Voltage State 0 Guaranteed | < 5 V |
| Input Type |
|
| Input Voltage Limits | 30 V |
| Current State 1 Guaranteed | >= 6 mA |
| Isolation Voltage | 1500 V 60 s |
| Output Short-Circuit Protection | 1.5 A integrated |
| Output Voltage Limits | 19.2...30 V |
| Maximum Output Current |
|
| Output Overload Protection | integrated |
| Module Format | standard |
| Maximum Leakage Current | 0.1 mA at state 0 |
| Voltage State 1 Guaranteed | 11...30 V |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | 0-60 °C |
| Directives |
|
| Relative Humidity | 10-95 % without condensation |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP20 |
