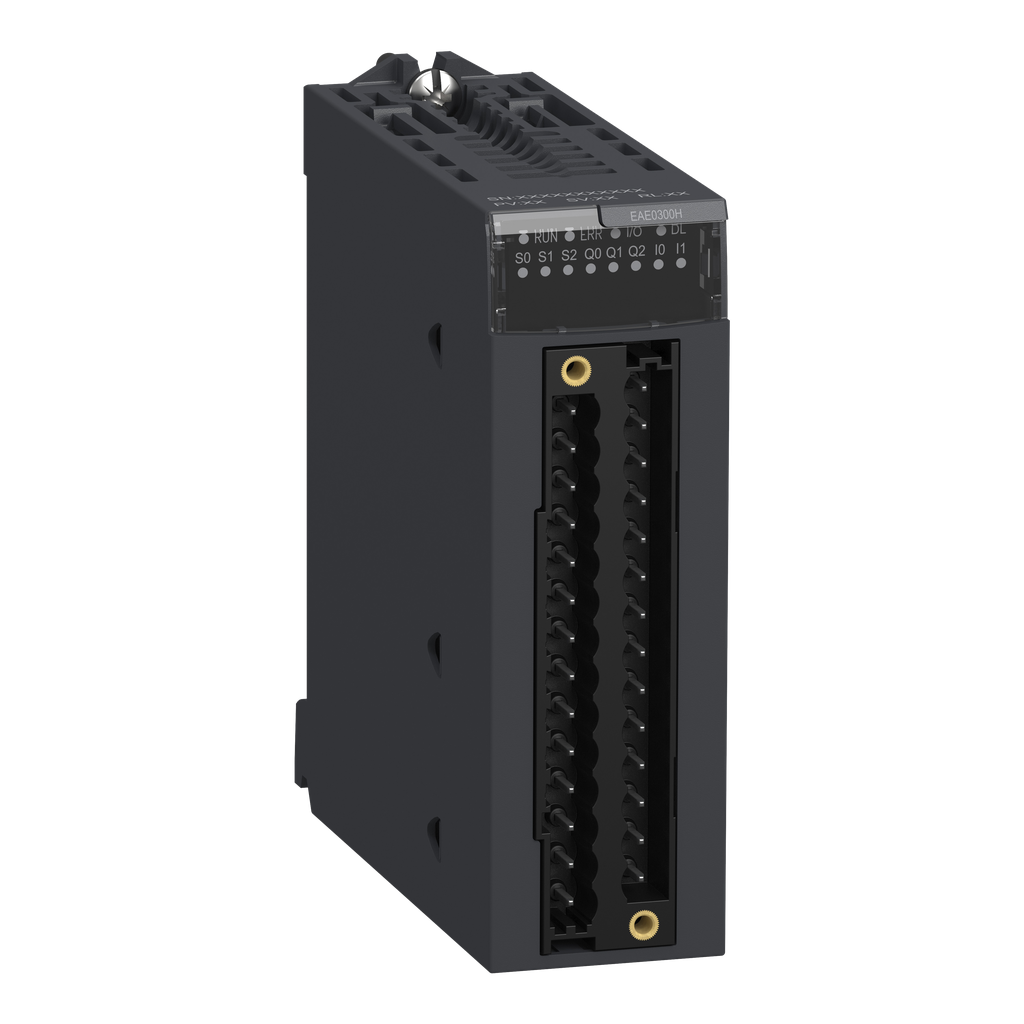

BMXEAE0300H
SSI encoder interface mod - 3 ch - upto 31 data bits/1 Mbauds - severe
Specifications
| Number Of Outputs | 1 24 V DC reflex digital output for each SSI channel |
|---|---|
| Range Of Product | Modicon X80 |
| Product Or Component Type | encoder interface module |
| Number Of Inputs | 2 24 V DC capture digital inputs for the 3 SSI channels |
| Function Available |
|
| Product Specific Application | for severe environments |
| Number Of Channels | 3 SSI channel |
| Warranty | 18 months |
| [Us] Rated Supply Voltage |
|
| Protection Type | overvoltage protection DC |
| Dielectric Strength | 1400 V DC 60 s |
| Data Format | 8...31 bits |
| Net Weight | 0.138 kg |
| Input Compatibility | 24 V DC SSI absolute encoder 19.2-30 V)200 mA per channel |
| Current Consumption |
|
| Refresh Time | 1 ms |
| Transmission Rate |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Product Certifications |
|
| Environmental Characteristic |
|
| Directives |
|
| Protective Treatment | conformal coating |
| Ip Degree Of Protection | IP20 |
| Operating Altitude | 0...13123.36 ft (0...4000 m) |
