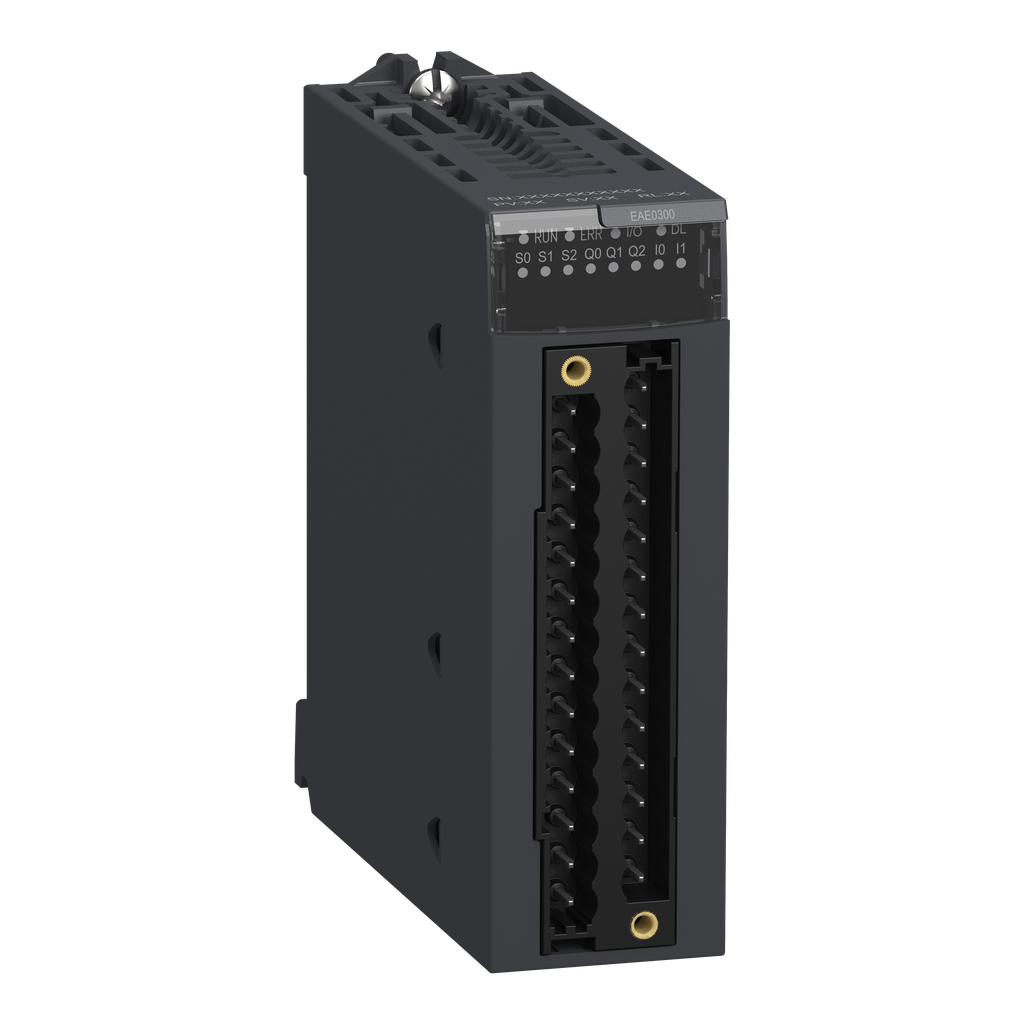

encoder interface module, Modicon X80, SSI, 3 channels, up to 31databits, 1Mbauds
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This encoder interface module has 3 SSI channels. It is an encoder interface module with a rated supply voltage of 24V DC, a current consumption of 250mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. Available functions are offset, compare, modulo, reduction and capture. The transmission rate is 500kbauds, 200kbauds, 1Mbauds, 100kbauds and 8bit to 31bit data format. It is an IP20 rated product. It weighs 0.138kg. It is suitable for medium to large process applications. This product is certified by UL, C-Tick, CSA, GOST, ATEX, CSA, CE, FM Class 1 Division 2, CCS. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input is compatible with 24V DC SSI absolute encoder for 200mA per channel. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Number Of Outputs | 1 24 V DC reflex digital output for each SSI channel |
|---|---|
| Range Of Product | Modicon X80 |
| Product Or Component Type | encoder interface module |
| Number Of Inputs | 2 24 V DC capture digital inputs for the 3 SSI channels |
| Function Available |
|
| Number Of Channels | 3 SSI channel |
| Warranty | 18 months |
| [Us] Rated Supply Voltage |
|
| Protection Type | overvoltage protection DC |
| Dielectric Strength | 1400 V DC 60 s |
| Data Format | 8...31 bits |
| Net Weight | 0.138 kg |
| Input Compatibility | 24 V DC SSI absolute encoder 19.2-30 V)200 mA per channel |
| Current Consumption |
|
| Refresh Time | 1 ms |
| Transmission Rate |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | 0-60 °C |
| Standards |
|
| Product Certifications |
|
| Directives |
|
| Ip Degree Of Protection | IP20 |
| Operating Altitude | 0...13123.36 ft (0...4000 m) |
