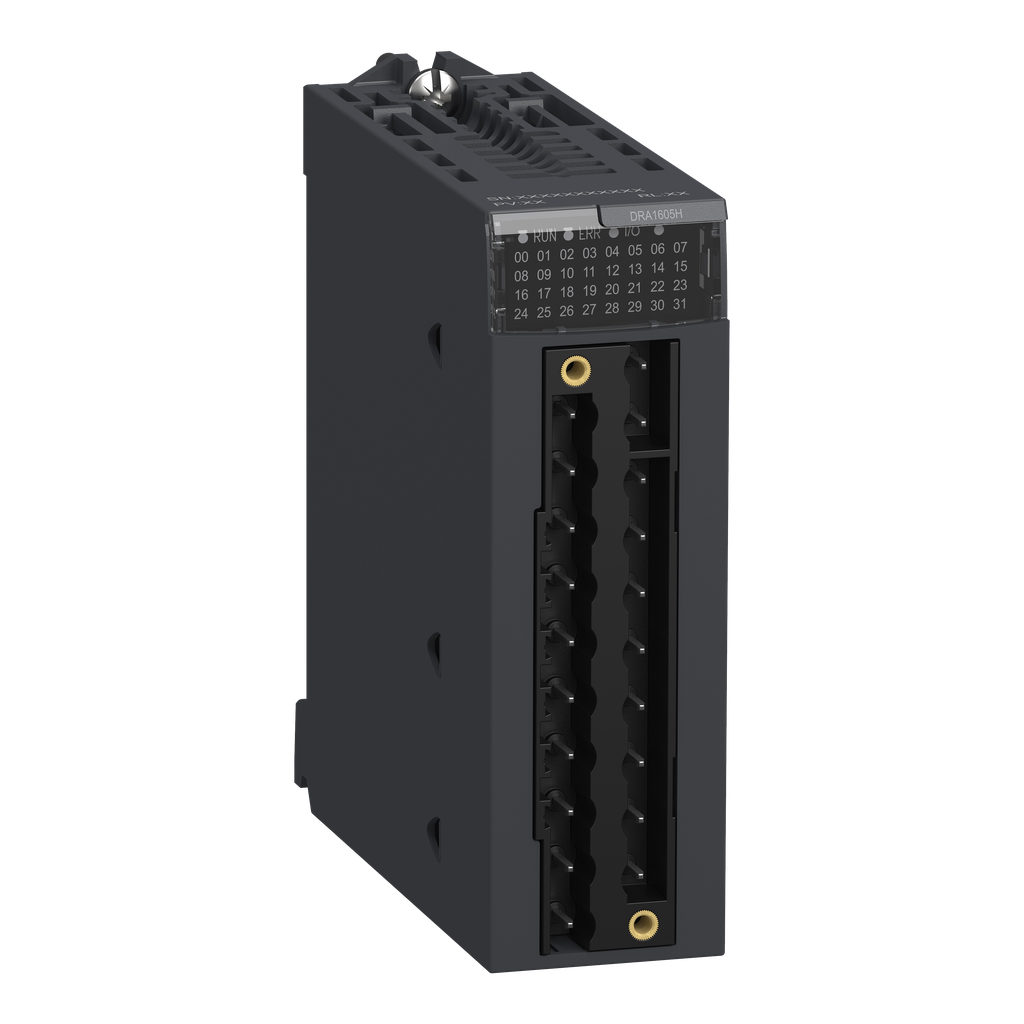

BMXDRA1605H – discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC, for severe environments
BMXDRA1605H
discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC, for severe environments

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 16 relay outputs. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, 240V, 19V AC to 264V AC, a typical current consumption of 79mA at 3.3V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It offers electrical durability of 100000, 300000, 50000, 7000 cycles and 1357810 hours of MTBF. It is an IP20 rated product. It weighs 0.15kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, EAC, Merchant Navy, CSA, RCM, CE and UL. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Discrete Output Type relay
Range Of Product Modicon X80
Discrete Output Number 16 EN/IEC 61131-2
Discrete Output Voltage
  • 24...48 V 19...60 V DC
  • 24...240 V 19…264 V AC
Product Or Component Type discrete output module
Product Specific Application for severe environments
Warranty 18 months
Mtbf Reliability 2100000 H
Minimum Switching Current 1 mA 5 V DC
Status Led
  • 1 LED (Green) RUN
  • 1 LED per channel (Green) channel diagnostic
  • 1 LED (Red) ERR
  • 1 LED (Red) I/O
Insulation Resistance > 10 MOhm 500 V DC
[Ith] Conventional Free Air Thermal Current 2 A
Power Dissipation In W 3 W
Net Weight 0.15 kg
Electrical Durability
  • AC-15 100000 cycles 240 VA 200 V 0.7 )
  • AC-15 100000 cycles 120 VA 200 V 0.35 )
  • AC-12 100000 cycles 200 VA 100 V
  • AC-12 100000 cycles 80 VA 48 V
  • AC-12 100000 cycles 50 VA 24 V
  • AC-15 100000 cycles 120 VA 100 V
  • AC-15 100000 cycles 120 VA 24 V
  • AC-15 100000 cycles 120 VA 48 V
  • DC-12 100000 cycles 24 W 24 V
  • DC-13 100000 cycles 10 W 24 V
  • DC-13 100000 cycles 10 W 48 V
  • AC-15 300000 cycles 72 VA 200 V 0.7 )
  • AC-15 300000 cycles 36 VA 200 V 0.35 )
  • AC-12 300000 cycles 200 VA 200 V
  • AC-12 300000 cycles 80 VA 100 V
  • AC-12 300000 cycles 50 VA 48 V
  • AC-15 300000 cycles 36 VA 100 V
  • AC-15 300000 cycles 72 VA 100 V
  • AC-15 300000 cycles 36 VA 48 V
  • AC-15 300000 cycles 72 VA 48 V
  • AC-15 300000 cycles 36 VA 24 V
  • AC-15 300000 cycles 72 VA 24 V
  • DC-13 300000 cycles 3 W 24 V
  • DC-13 300000 cycles 3 W 48 V
  • DC-13 7000 cycles 24 W 24 V
  • DC-13 7000 cycles 24 W 48 V
  • DC-12 50000 cycles 24 W 48 V
Typical Current Consumption 79 mA 3.3 V DC
Output Overvoltage Protection
  • use discharge diode on each output DC
  • use RC circuit on each output AC
  • use ZNO surge limiter on each output AC
Output Short-Circuit Protection use 1 fast blow fuse per channel or group of channel
Output Overload Protection use 1 fast blow fuse per channel or group of channel
Response Time On Output
  • < 8 ms activation
  • < 10 ms deactivation
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP070204EN
Sustainable Offer Status Green Premium product
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI0702004EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation -25-70 °C
Shock Resistance 30 gn
Environmental Characteristic
  • gas resistant class Gx
  • gas resistant class 3C4
  • dust resistant class 3S4
  • sand resistant class 3S4
  • salt resistant level 2
  • mold growth resistant class 3B2
  • fungal spore resistant class 3B2
Dielectric Strength 2000 V AC 50/60 Hz 1 min
Vibration Resistance 3 gn
Directives
  • 2014/35/EU - low voltage directive
  • 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage -40-85 °C
Relative Humidity 5-95 % 55-55 °C without condensation
Operating Altitude
  • 0...6561.68 ft (0...2000 m)
  • 2000...5000 m with derating factor
Protective Treatment conformal coating
Ip Degree Of Protection IP20
