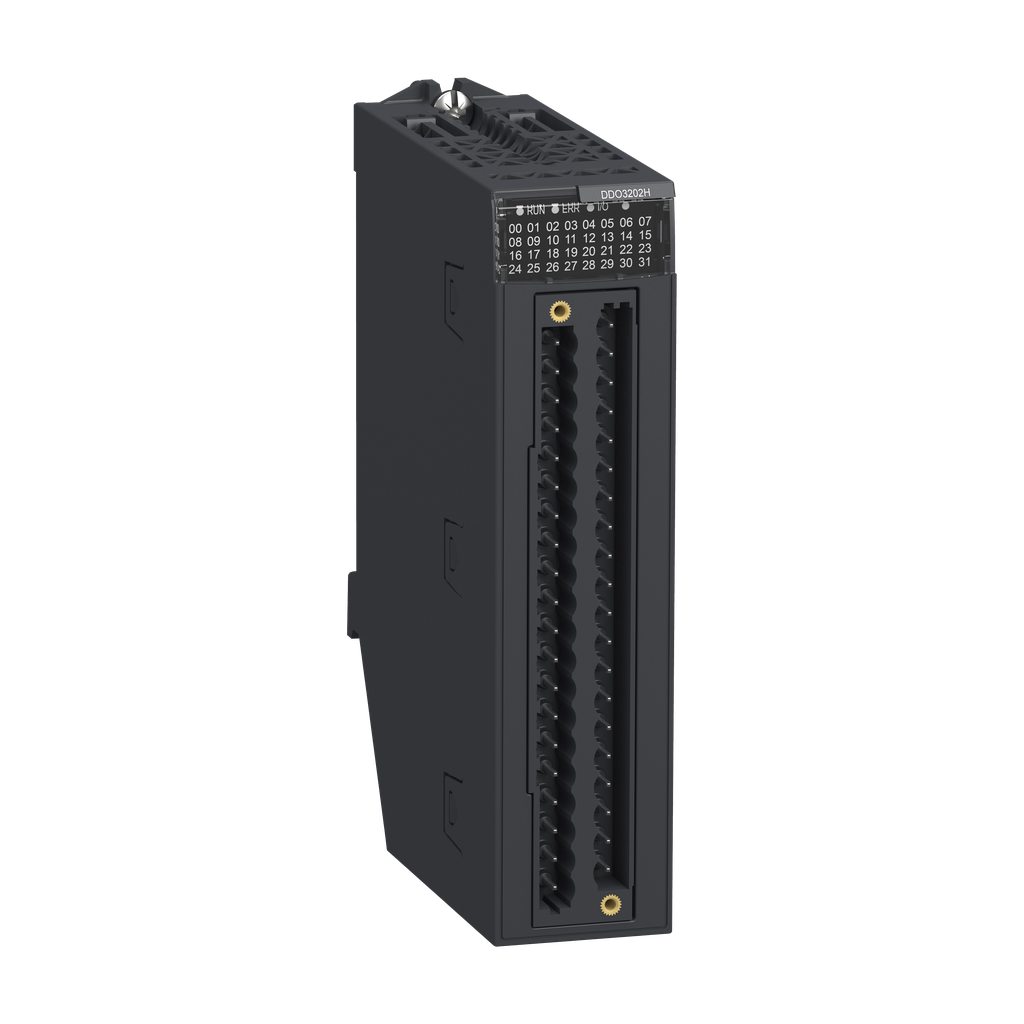

BMXDDO3202H - Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC, for severe environments

BMXDDO3202H

Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC, for severe environments

Add to Quote Catalogue

Specifications

Discrete Output Type	solid state
Range Of Product	Modicon X80
Discrete Output Number	32 EN/IEC 61131-2
Discrete Output Logic	positive
Discrete Output Voltage	12...24 V 10.8...30 V DC
Product Or Component Type	discrete output module
Discrete Output Current	0.5 A
Product Specific Application	for severe environments
Mtbf Reliability	833000 H
Maximum Current Per Module	17.6 A
Switching Frequency	0.5/LI² Hz
Status Led	1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O
Current Per Channel	0.55 A
Voltage Detection Threshold	< 14 V DC preactuator fault > 18 V DC preactuator at state 0
Maximum Voltage Drop	<1.2 V at state 1
Insulation Resistance	> 10 MOhm 500 V DC
Protection Type	external fuse reverse polarity protection short-circuit protection overload protection overvoltage protection
Power Dissipation In W	4.8 W
Net Weight	143.92 g
Maximum Leakage Current	0.1 mA at state 0
Load Impedance Ohmic	> 54.54 Ohm
Paralleling Of Outputs	yes : 3 maximum
Typical Current Consumption	56 mA 3.3 V DC
Output Overvoltage Protection	with transil diode
Output Short-Circuit Protection	with external fuse
Output Overload Protection	with electronic circuit breaker 1.5 In < Id < 2 In with current limiter
Maximum Tungsten Load	6 W 24 V 3 W 12 V
Reverse Polarity Protection	reverse mounted diode
Response Time On Output	0.3 ms
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP070204EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation	X
Circularity Profile	ENVEOLI0702004EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	30 gn
Environmental Characteristic	gas resistant class Gx gas resistant class 3C4 dust resistant class 3S4 sand resistant class 3S4 salt resistant level 2 mold growth resistant class 3B2 fungal spore resistant class 3B2
Dielectric Strength	1780 V AC 50/60 Hz 1 minute, output/ground 1 minute, output/internal logic
Vibration Resistance	3 gn
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	5-95 % 55-55 °C without condensation
Operating Altitude	0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor
Protective Treatment	conformal coating
Ip Degree Of Protection	IP20
