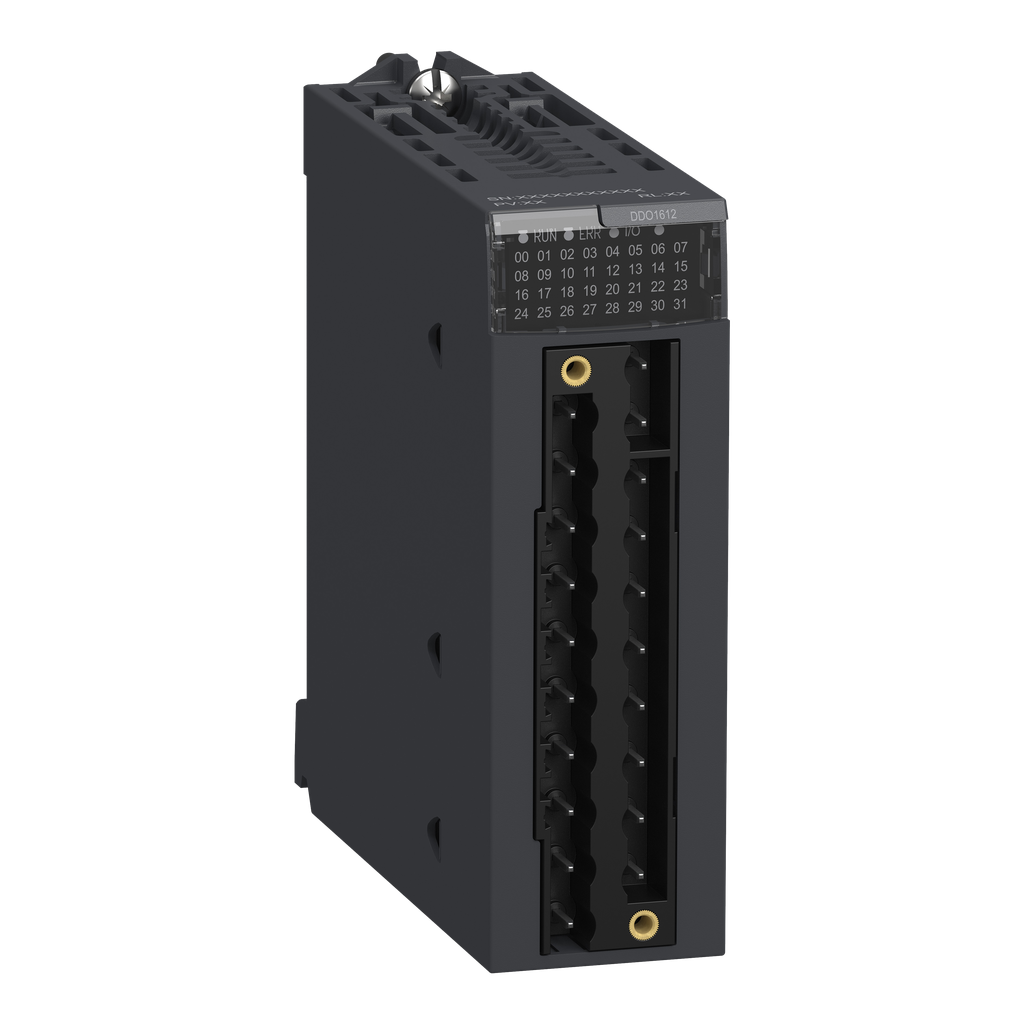

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 16 outputs with sink (positive) logic. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, a maximum power dissipation of 2.26W, a typical current consumption 79mA at 3.3V DC and 0.6A current per channel. This product is robust, high quality and based on the latest innovative technology. Protection types are reverse polarity protection, external short-circuit protection, overload protection and overvoltage protection. It is an IP20 rated product. It weighs 0.12kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand: Schneider Electric
Add to Quote CatalogueDiscrete Output Type | solid state |
---|---|
Range Of Product | Modicon X80 |
Discrete Output Number | 16 |
Discrete Output Logic | negative |
Discrete Output Voltage | 24 V 19...30 V DC |
Product Or Component Type | discrete output module |
Discrete Output Current | 0.5 A |
Warranty | 18 months |
Mtbf Reliability | 490000 H |
Maximum Current Per Module | 10 A |
Switching Frequency | 0.5/LI² Hz |
Status Led |
|
Voltage Detection Threshold |
|
Current Per Channel | 0.625 A |
Maximum Voltage Drop | <1.2 V at state 1 |
Insulation Resistance | > 10 MOhm 500 V DC |
Protection Type |
|
Power Dissipation In W | 2.26 W |
Net Weight | 0.12 kg |
Maximum Leakage Current | 0.5 mA at state 0 |
Load Impedance Ohmic | >= 48 Ohm |
Paralleling Of Outputs | yes : 3 maximum |
Typical Current Consumption | 79 mA 3.3 V DC |
Output Overvoltage Protection | with transil diode |
Output Short-Circuit Protection | with 2 A external fuse |
Output Overload Protection |
|
Maximum Tungsten Load | 6 W |
Reverse Polarity Protection | reverse mounted diode |
Response Time On Output | 1.2 ms |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP070204EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI0702004EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ambient Air Temperature For Operation | 0-60 °C |
Shock Resistance | 30 gn |
Dielectric Strength |
|
Vibration Resistance | 3 gn |
Directives |
|
Ambient Air Temperature For Storage | -40-85 °C |
Relative Humidity | 5-95 % 55-55 °C without condensation |
Operating Altitude |
|
Ip Degree Of Protection | IP20 |
