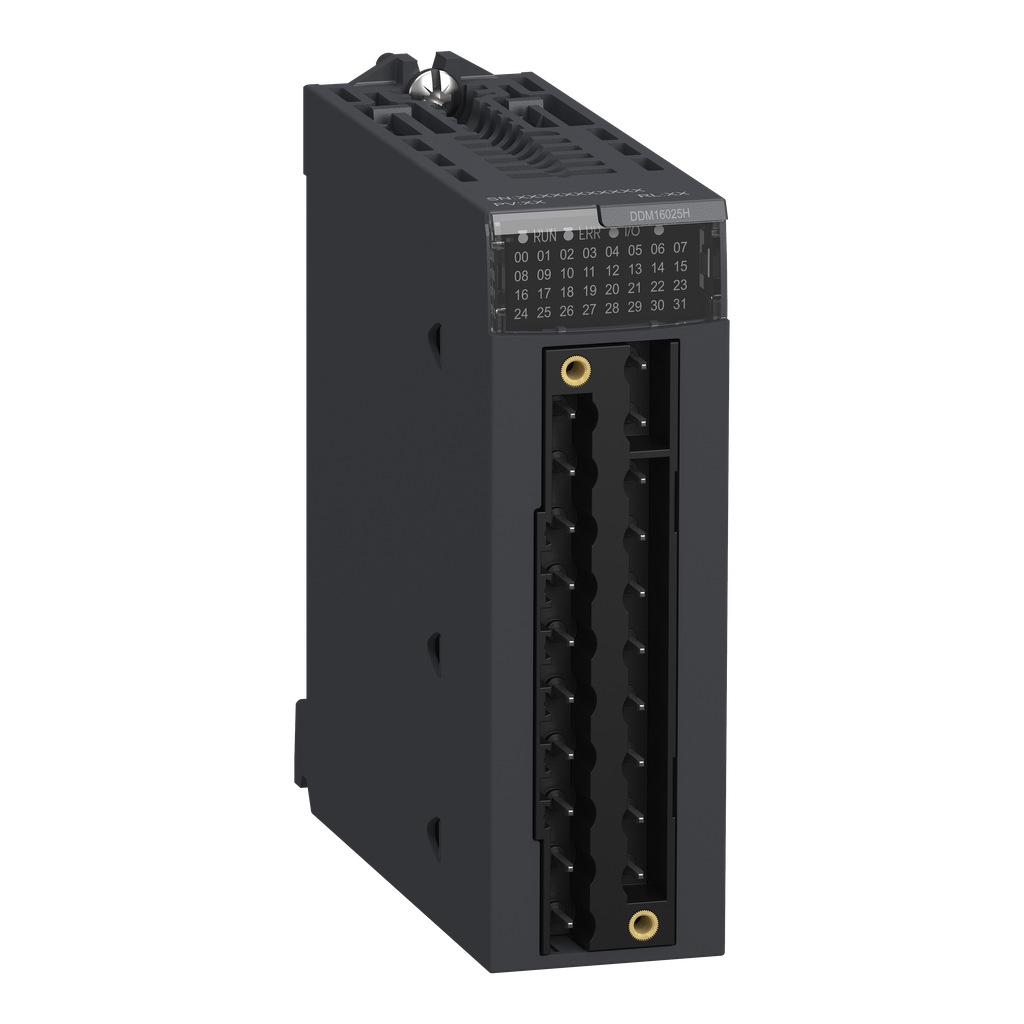

BMXDDM16025H - discrete I/O module X80 - 8 I - 24 V DC - 8 O - relay - severe

BMXDDM16025H

discrete I/O module X80 - 8 I - 24 V DC - 8 O - relay - severe

Add to Quote Catalogue

Specifications

Discrete Output Type	relay
Range Of Product	Modicon X80
Discrete Output Number	8
Discrete Input Voltage	24 V DC positive
Discrete Output Voltage	24 V 19...30 V DC 24...240 V 19...264 V AC
Product Or Component Type	discrete I/O module
Discrete Output Current	2000 mA
Input Type	current sink (logic positive)
Discrete Input Number	8
Product Specific Application	for severe environments
Discrete Input Current	3.5 mA
Warranty	18 months
Mtbf Reliability	940000 H
Voltage Range	19...30 V 60 °C 21.1...29.0 V 70 °C
Minimum Switching Current	1 mA 5 V DC
Switching Frequency	1 Hz
Status Led	1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O
Voltage Detection Threshold	< 14 V DC sensor fault > 18 V DC sensor OK
Insulation Resistance	> 10 MOhm 500 V DC
Current State 1 Guaranteed	>= 2 mA
Protection Type	1 external fuse per group of input channel 0.5 A fast blow reverse polarity protection on input 1 external fuse per output channel or group of output channel fast blow
Power Dissipation In W	3.1 W
Net Weight	0.135 kg
Maximum Switching Voltage	125 V DC 264 V AC
Paralleling Of Inputs	no
Dc Typical Filtering Time	4 ms
Input Compatibility	with 2-wire/3-wire proximity sensors IEC 60947-5-2 with 2-wire/3-wire proximity sensors IEC 61131-2 type 3
Electrical Durability	AC-14 100000 cycles 120 VA 240 V 70-70 °C 0.7 ) AC-14 100000 cycles 150 VA 200 V 70-70 °C 0.7 ) AC-14 100000 cycles 240 VA 240 V -25-60 °C 0.7 ) AC-14 100000 cycles 300 VA 200 V -25-60 °C 0.7 ) AC-15 100000 cycles 100 VA 200 V 70-70 °C 0.35 ) AC-15 100000 cycles 120 VA 240 V -25-60 °C 0.35 ) AC-15 100000 cycles 200 VA 200 V -25-60 °C 0.35 ) AC-15 100000 cycles 60 VA 240 V 70-70 °C 0.35 ) DC-13 100000 cycles 12 W 24 V 70-70 °C DC-13 100000 cycles 24 W 24 V -25-60 °C AC-14 300000 cycles 36 VA 240 V 70-70 °C 0.7 ) AC-14 300000 cycles 40 VA 200 V 70-70 °C 0.7 ) AC-14 300000 cycles 72 VA 240 V -25-60 °C 0.7 ) AC-14 300000 cycles 80 VA 200 V -25-60 °C 0.7 ) AC-15 300000 cycles 18 VA 240 V 70-70 °C 0.35 ) AC-15 300000 cycles 30 VA 200 V 70-70 °C 0.35 ) AC-15 300000 cycles 36 VA 240 V -25-60 °C 0.35 ) AC-15 300000 cycles 60 VA 200 V -25-60 °C 0.35 ) DC-13 300000 cycles 3.6 W 24 V 70-70 °C DC-13 300000 cycles 7.2 W 24 V -25-60 °C
Typical Current Consumption	79 mA 3.3 V DC
Current State 0 Guaranteed	<= 1.5 mA
Mechanical Durability	20000000 cycles
Input Impedance	6800 Ohm
Dc Maximum Filtering Time	7 ms
Response Time On Output	<= 8 ms deactivation <= 10 ms activation
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP070204EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI0702004EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	30 gn
Environmental Characteristic	gas resistant class Gx gas resistant class 3C4 dust resistant class 3S4 sand resistant class 3S4 salt resistant level 2 mold growth resistant class 3B2 fungal spore resistant class 3B2
Dielectric Strength	1500 V AC 50/60 Hz 1 minute, primary/secondary 2830 V AC 50/60 Hz 1 minute, output relay 500 V DC 1 minute, between group of I/O
Vibration Resistance	3 gn
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	5-95 % 55-55 °C without condensation
Operating Altitude	0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor
Protective Treatment	conformal coating
Ip Degree Of Protection	IP20
