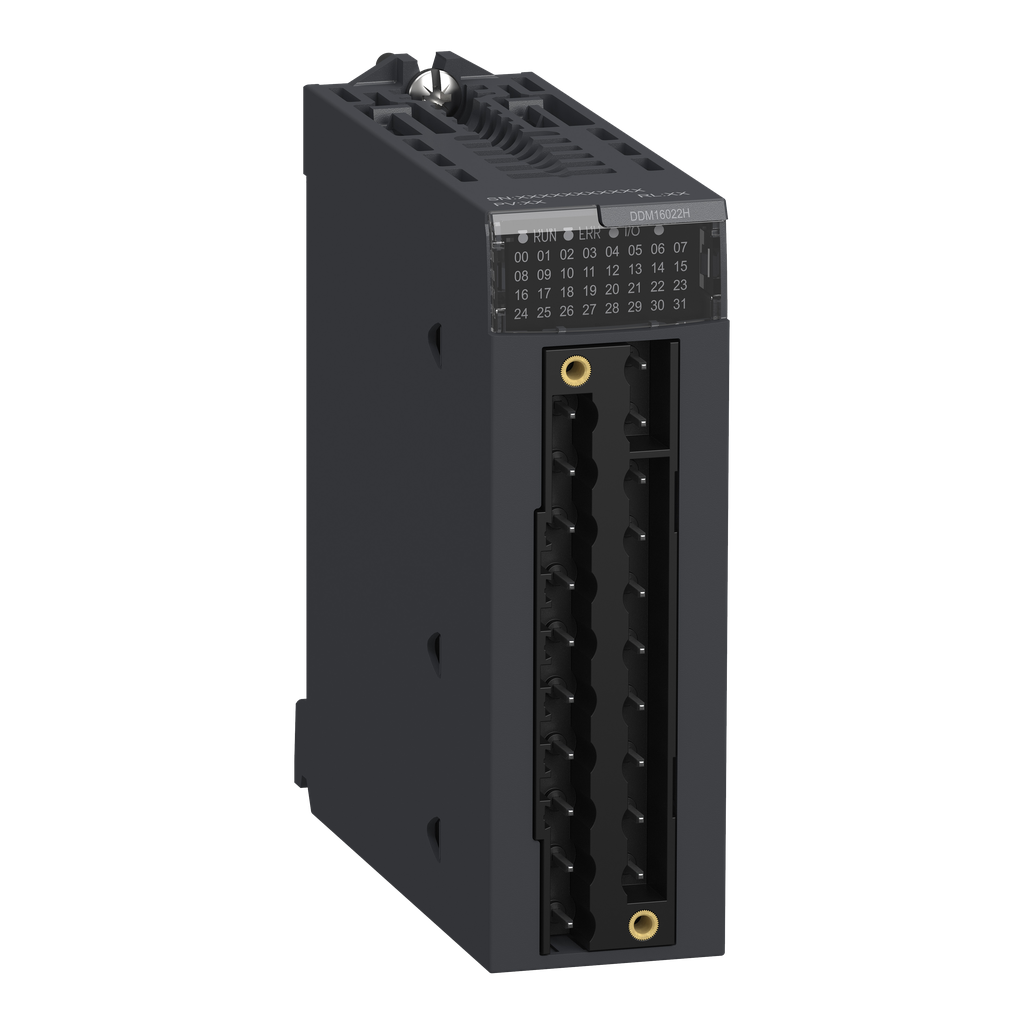

BMXDDM16022H - discrete I/O module X80 - 8 I - 24 V DC - 8 O - solid state- severe

BMXDDM16022H

discrete I/O module X80 - 8 I - 24 V DC - 8 O - solid state- severe

Add to Quote Catalogue

Specifications

Discrete Output Type	solid state
Range Of Product	Modicon X80
Discrete Output Number	8
Discrete Input Voltage	24 V DC positive
Discrete Output Voltage	24 V 19...30 V DC 60 °C 24 V 26.4 V DC 70 °C
Product Or Component Type	discrete I/O module
Discrete Output Current	0.5 A
Input Type	current sink (logic positive)
Discrete Input Number	8
Product Specific Application	for severe environments
Discrete Input Current	3.5 mA
Warranty	18 months
Mtbf Reliability	450000 H
Voltage Range	21.1...29.0 V 70 °C 19...30 V 60 °C
Maximum Current Per Module	5 A 60 °C 4.4 A 70 °C
Switching Frequency	0.5/LI² Hz
Maximum Overload Time	15 ms
Status Led	1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O
Voltage Detection Threshold	< 14 V DC preactuator fault < 14 V DC sensor fault > 18 V DC preactuator OK > 18 V DC sensor OK
Current Per Channel	0.55 A 70 °C 0.625 A 60 °C
Maximum Voltage Drop	<1.2 V at state 1
Current Consumption	<= 111 mA 3.3 V DC <= 67 mA 24 V DC
Insulation Resistance	> 10 MOhm 500 V DC
Current State 1 Guaranteed	>= 3 mA
Protection Type	1 external fuse per group of input channel 0.5 A fast blow overvoltage protection on output reverse polarity protection on input reverse polarity protection on output
Power Dissipation In W	3.7 W
Net Weight	0.115 kg
Maximum Leakage Current	0.5 mA at state 0
Load Impedance Ohmic	>= 48 Ohm
Paralleling Of Outputs	yes : 2 maximum
Dc Typical Filtering Time	4 ms
Input Compatibility	with 2-wire/3-wire proximity sensors IEC 60947-5-2 with 2-wire/3-wire proximity sensors IEC 61131-2 type 3
Typical Current Consumption	79 mA 3.3 V DC 59 mA 24 V DC
Current State 0 Guaranteed	<= 1.5 mA
Output Overvoltage Protection	with transil diode
Output Short-Circuit Protection	with 2 A external fuse
Output Overload Protection	with electronic circuit breaker 1.5 In < Id < 2 In with current limiter
Input Impedance	6800 Ohm
Maximum Tungsten Load	6 W
Reverse Polarity Protection	reverse mounted diode
Dc Maximum Filtering Time	7 ms
Response Time On Output	1.2 ms
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP070204EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI0702004EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	30 gn
Environmental Characteristic	gas resistant class Gx gas resistant class 3C4 dust resistant class 3S4 sand resistant class 3S4 salt resistant level 2 mold growth resistant class 3B2 fungal spore resistant class 3B2
Dielectric Strength	1500 V AC 50/60 Hz 1 minute, output/ground 1500 V AC 50/60 Hz 1 minute, output/internal logic 1500 V AC 50/60 Hz 1 minute, primary/secondary 500 V DC 1 minute, between group of inputs and outputs
Vibration Resistance	3 gn
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	5-95 % 55-55 °C without condensation
Operating Altitude	0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor
Protective Treatment	conformal coating
Ip Degree Of Protection	IP20
