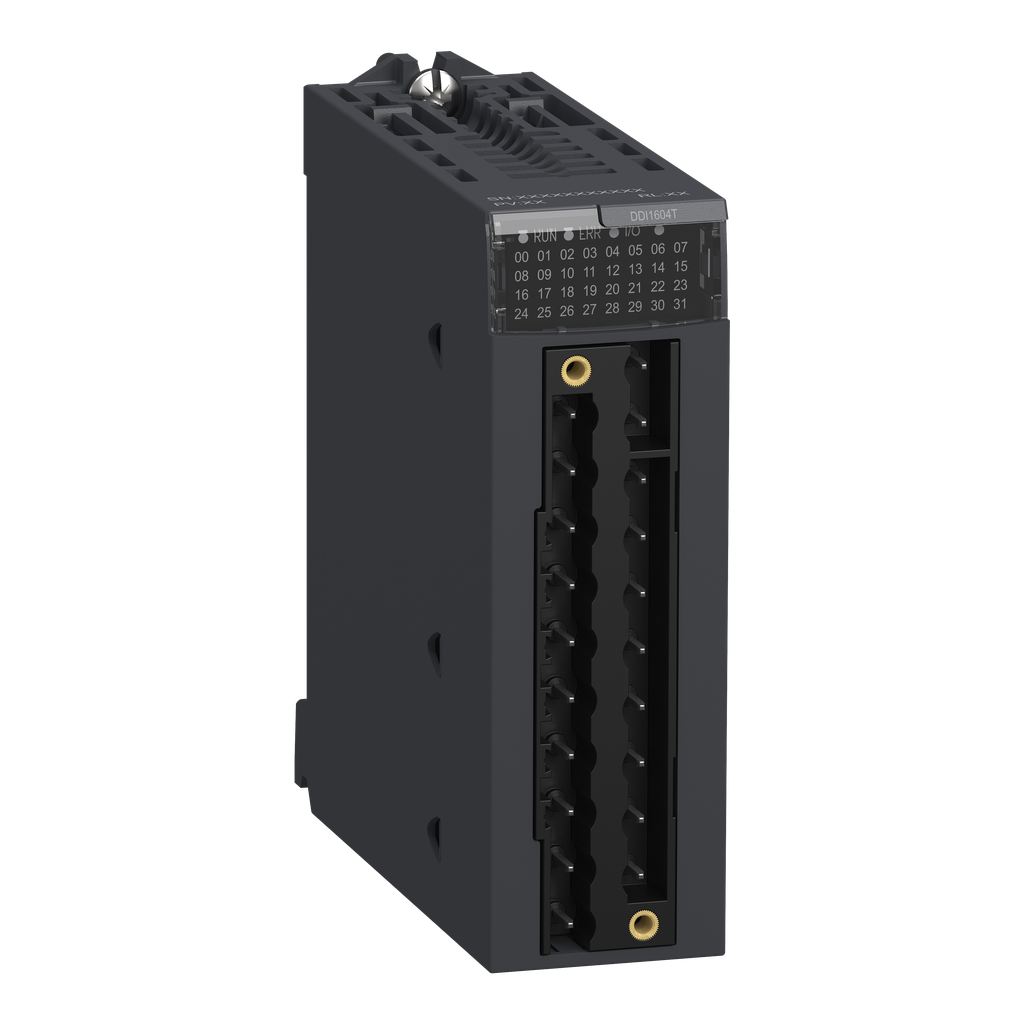

discrete input module, Modicon X80, 16 inputs, 125V DC positive, extended temperature
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 16 inputs with sink (positive) logic. It is an input module with an input voltage of 125V DC, a current consumption of 76mA at 3.3V DC and a power dissipation 8.5W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per group of channel 0.5A and reverse polarity protection fast blow protection type. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process and extended temperature applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon X80 |
|---|---|
| Discrete Input Voltage | 125 V DC positive |
| Product Or Component Type | discrete input module |
| Input Type | current sink (logic positive) |
| Discrete Input Type | isolated |
| Discrete Input Number | 16 |
| Product Specific Application | extended temperature |
| Discrete Input Current | 2.4 mA |
| Warranty | 18 months |
| Voltage Range | 100...150 V |
| Status Led |
|
| Voltage Detection Threshold |
|
| Current Consumption | <= 107 mA 3.3 V DC |
| Insulation Resistance | > 10 MOhm 500 V DC |
| Current State 1 Guaranteed | >= 2 mA |
| Protection Type |
|
| Power Dissipation In W |
|
| Net Weight | 0.115 kg |
| Paralleling Of Inputs | yes |
| Dc Typical Filtering Time | 5 ms |
| Typical Current Consumption | 76 mA 3.3 V DC |
| Current State 0 Guaranteed | <= 0.5 mA |
| Input Impedance | 50000 Ohm |
| Dc Maximum Filtering Time | 9 ms |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -25-70 °C |
| Shock Resistance | 30 gn |
| Environmental Characteristic |
|
| Dielectric Strength | 2500 V AC 50/60 Hz 1 minute, primary/secondary |
| Vibration Resistance | 3 gn |
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Operating Altitude |
|
| Protective Treatment | conformal coating |
| Ip Degree Of Protection | IP20 |
