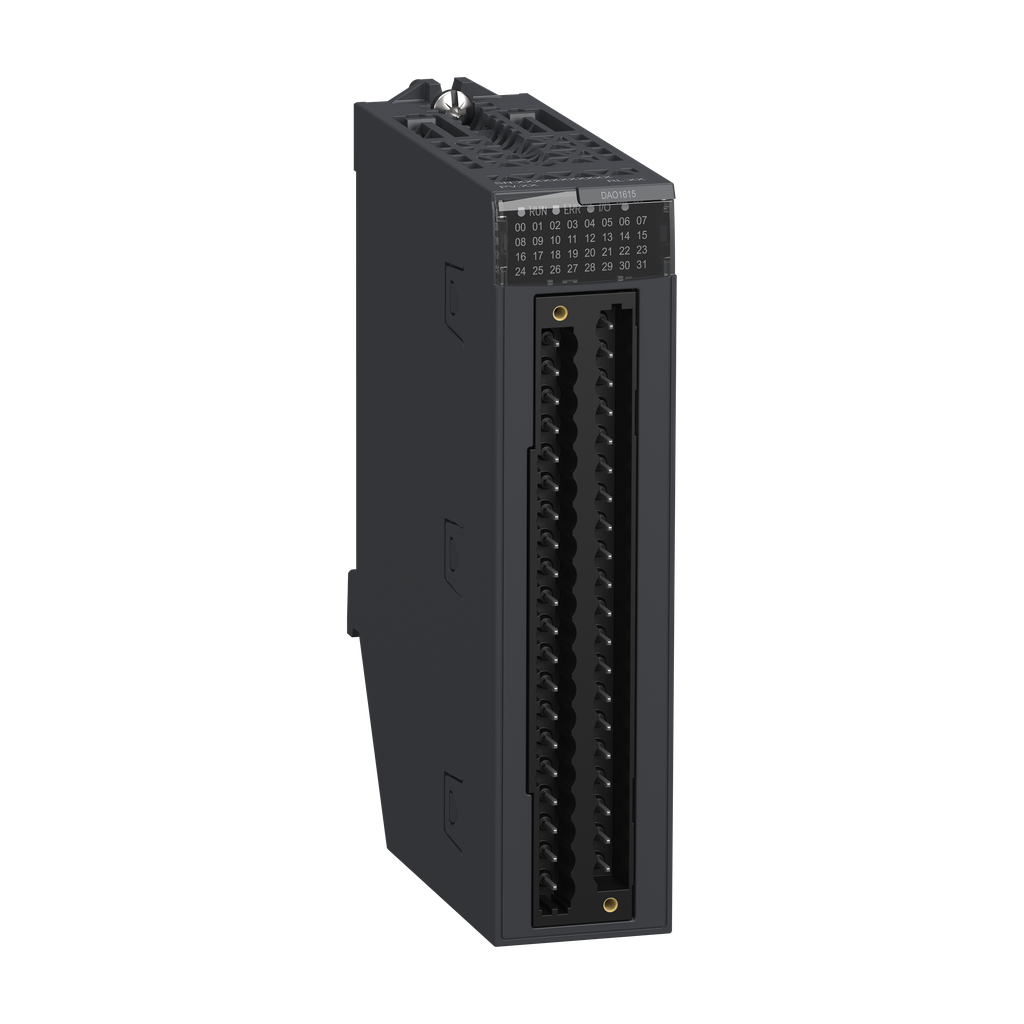

BMXDAO1615 - discrete output module, Modicon X80, 16 isolated triac outputs, 24 to 240V AC

BMXDAO1615

discrete output module, Modicon X80, 16 isolated triac outputs, 24 to 240V AC

Add to Quote Catalogue

Specifications

Discrete Output Type	triac
Range Of Product	Modicon X80
Discrete Output Number	16 EN/IEC 61131-2
Discrete Output Voltage	24...240 V 20...264 V AC
Product Or Component Type	discrete output module
Discrete Output Current	3 A
Mtbf Reliability	500000 H
Network Frequency	50/60 Hz
Voltage Range	20...264 V
Maximum Current Per Module	10 A 40 °C 4 A 60 °C
Inrush Current	30 A
Status Led	1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O
Maximum Current Per Output Common	4 A
Current Per Channel	3 A 40 °C 1.2 A 60 °C
Maximum Voltage Drop	<1.55 V at state 1
Output Current Limits	0.005-10 A
Insulation Resistance	> 10 MOhm 500 V DC
Network Frequency Limits	47-63 Hz
Protection Type	1 external fuse 4 A fast blow
Power Dissipation In W	1.45 W
Net Weight	0.264 kg
Maximum Leakage Current	1 mA at state 0 24 V 1 mA at state 0 48 V 2 mA at state 0 115 V 2.5 mA at state 0 240 V
Typical Current Consumption	61 mA 3.3 V DC 50 mA 24 V DC
Output Overload Protection	with varistor
Response Time On Output	<= 10 ms resistive activation <= 10 ms resistive deactivation
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP070204EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI0702004EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	0-60 °C
Shock Resistance	30 gn
Dielectric Strength	3000 V AC 50/60 Hz 1 min
Vibration Resistance	3 gn
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	0-95 % 0-60 °C without condensation
Operating Altitude	0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor
Ip Degree Of Protection	IP20
