BMXDAI1602 - discrete input module, Modicon X80, 16 inputs, 24V AC or DC, positive or negative

BMXDAI1602

discrete input module, Modicon X80, 16 inputs, 24V AC or DC, positive or negative

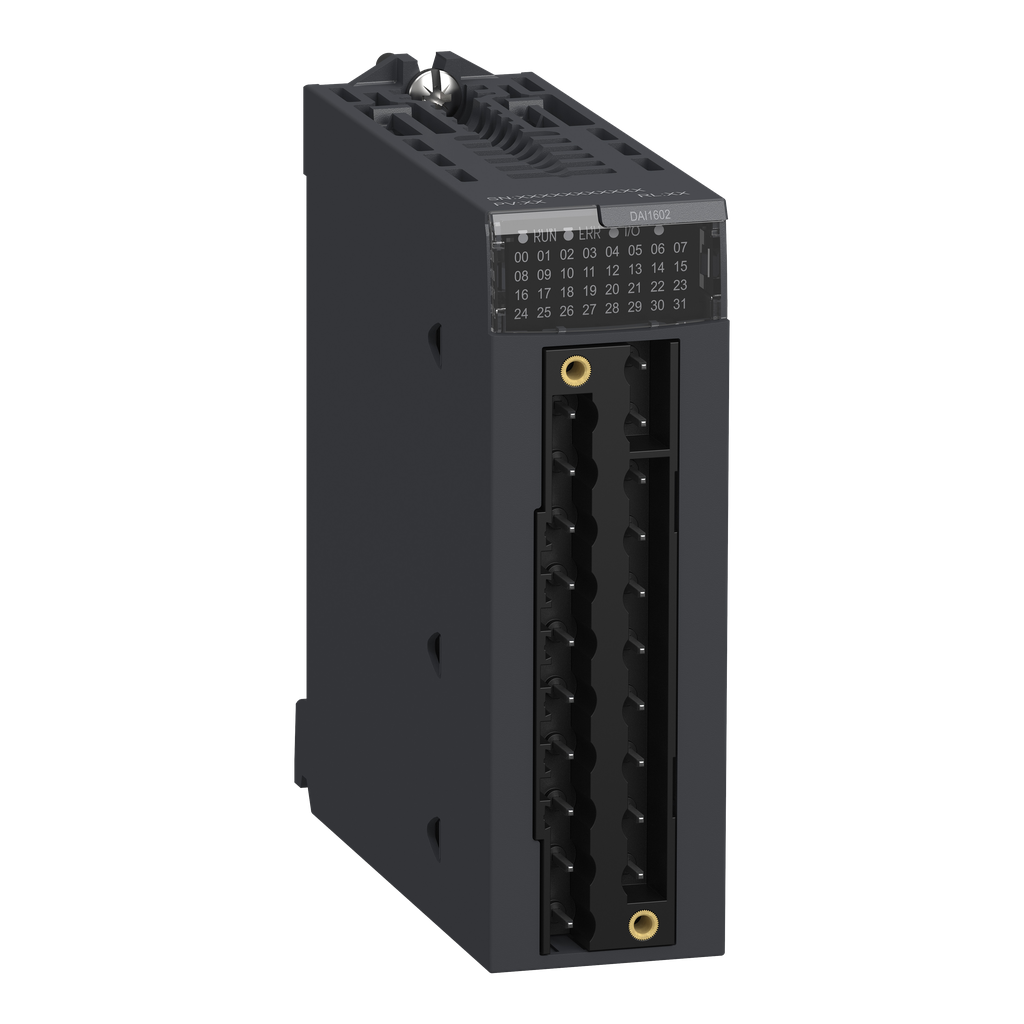

This discrete input module is part of the Modicon X80 modules. It has 16 isolated inputs and it is supplied with 24V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	Modicon X80
Discrete Input Voltage	24 V DC positive or negative 24 V AC
Product Or Component Type	discrete input module
Input Type	resistive
Discrete Input Type	isolated
Discrete Input Number	16
Discrete Input Current	3 mA 24 V AC 3.9 mA 24 V DC
Warranty	18 months
Mtbf Reliability	1125000 H
Network Frequency	50/60 Hz
Voltage Range	20...26 V AC 19...30 V DC
Ac Activation Filtering Time	15 ms
Status Led	1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O
Voltage Detection Threshold	< 14 V AC/DC sensor fault > 18 V AC/DC sensor OK
Insulation Resistance	> 10 MOhm 500 V DC
Network Frequency Limits	47-63 Hz
Current State 1 Guaranteed	>= 2 mA AC >= 2 mA DC
Protection Type	1 external fuse per group of channel 0.5 A fast blow
Power Dissipation In W	3 W
Net Weight	0.115 kg
Paralleling Of Inputs	no
Input Compatibility	with 2-wire/3-wire proximity sensors IEC 60947-5-2 with 2-wire/3-wire proximity sensors AC IEC 61131-2 Type 1
Ac Deactivation Filtering Time	20 ms
Typical Current Consumption	76 mA 3.3 V DC
Current State 0 Guaranteed	<= 1 mA AC <= 0.5 mA DC
Input Impedance	6 kOhm
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP070204EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI0702004EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	0-60 °C
Shock Resistance	30 gn
Dielectric Strength	1500 V AC 50/60 Hz 1 minute, primary/secondary
Vibration Resistance	3 gn
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	5-95 % 55-55 °C without condensation
Operating Altitude	0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor
Ip Degree Of Protection	IP20
