remote IO drop E/IP, Modicon X80, standard

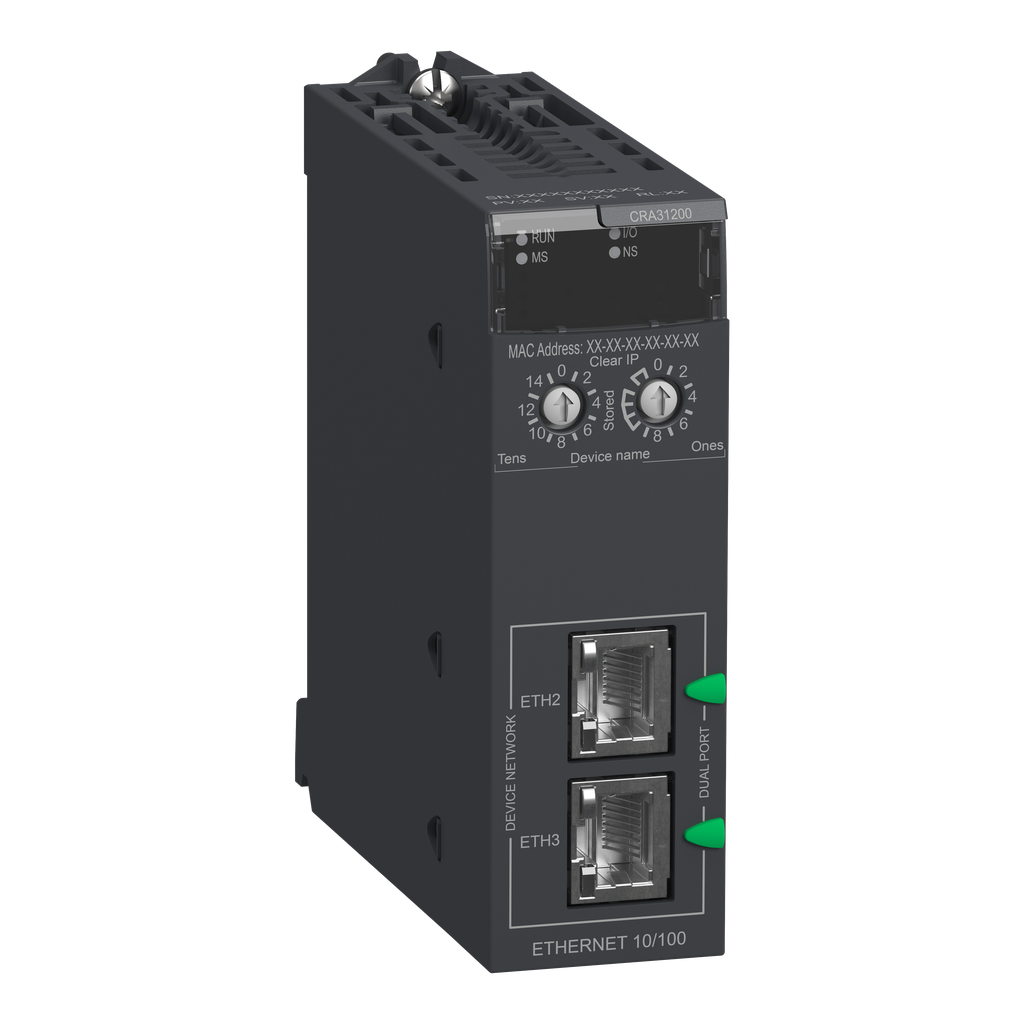

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet Remote Input Output (RIO) drop adaptor has 2 ports. Integrated connection is EtherNet/IP for device network. This product is robust, high quality and based on the latest innovative technology. The input data are collected and published to the remote I/O head adaptor and output modules are updated with the data received from remote I/O head adaptor. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This adaptor is compatible with 0 to 128 discrete channels and 0 to 16 analogue channels. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon X80 |
|---|---|
| Product Or Component Type | I/O expansion module |
| Product Specific Application | for remote I/O modules |
| Range Compatibility |
|
| Device Application | X80 Ethernet RIO drop adaptor |
| Warranty | 18 months |
| Product Compatibility |
|
| Communication Network Type | IPv4 (internet protocol) |
| Height | 100 mm |
| Fixing Mode | by screws |
| Communication Service |
|
| Exchange Mode | half duplex, full duplex, autonegotiation, auto MDIX |
| Net Weight | 0.225 kg |
| Current Consumption | 1200 mA |
| Topology | ring |
| Connector Type | 2 RJ45 |
| Function Available |
|
| Communication Port Protocol | EtherNet/IP |
| Mounting Mode | rack-mounted |
| Number Of Port | 2 |
| Integrated Connection Type | 2 port Ethernet RIO Network (RSTP) |
| Bus Type | bus X across the remote backplane |
| Input Voltage | 3.3 V DC |
| Relative Humidity | 95-95 % without condensation |
| Local Signalling |
|
| Data Recording | 10 ms time stamps |
| Cybersecurity | Syslog protocol support |
| Module Format | standard |
| Port Ethernet | 10/100BASE-TX |
| Width | 32 mm |
| Transmission Rate | 10/100 Mbit/s |
| Depth | 87.5 mm |
| Maximum Altitude Transport | 3000 m |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -0-60 °C |
| Standards |
|
| Product Certifications |
|
| Environmental Characteristic | standard environment |
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Operating Altitude | <= 6561.68 ft (2000 m) |
| Ip Degree Of Protection | IP20 |
