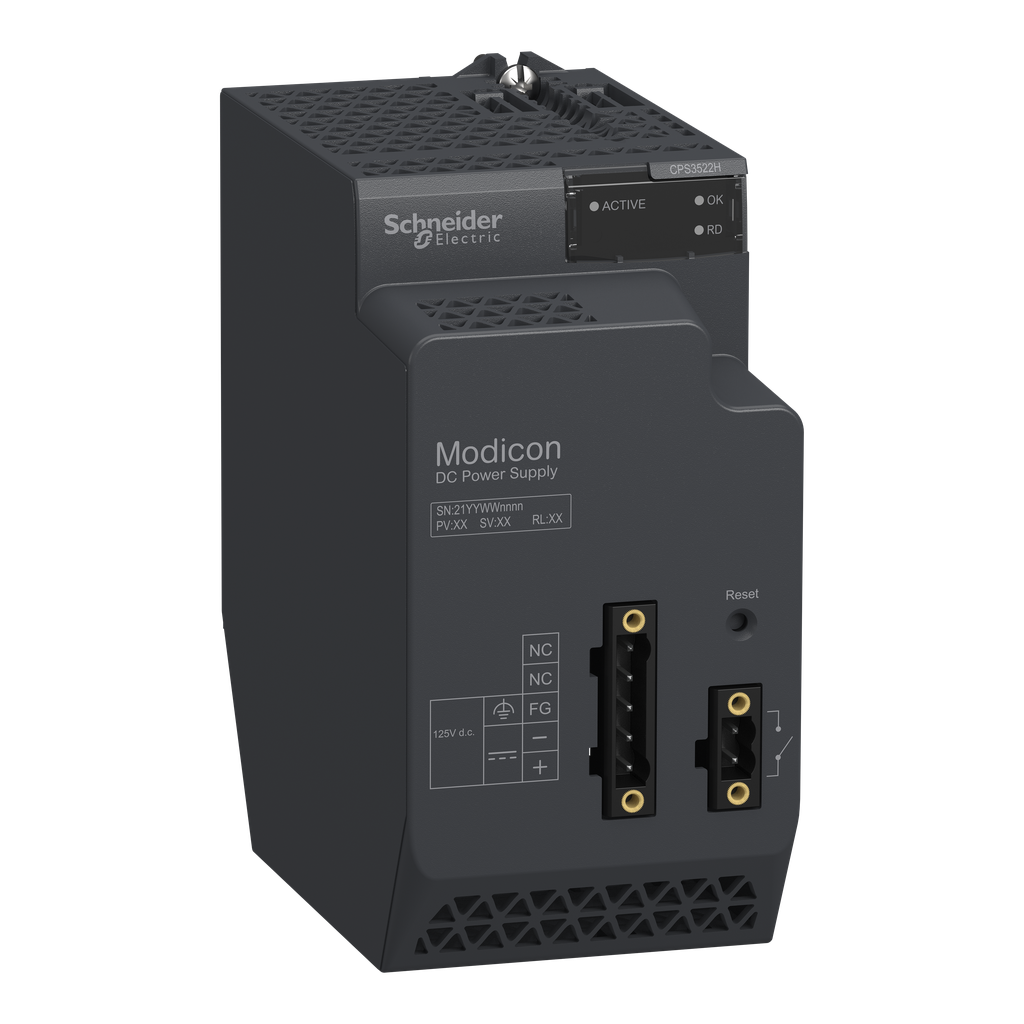

BMXCPS3522H - redundant power supply module X80 - 125 V DC - for severe environments

BMXCPS3522H

redundant power supply module X80 - 125 V DC - for severe environments

Add to Quote Catalogue

Specifications

Primary Voltage	125 V
Range Of Product	Modicon X80
Product Or Component Type	power supply module
Function Available	temperature sensing redundancy information redundancy test uptime duration remaining lifetime
Secondary Power	18 W 3.3 V DC -25-70 °C I/O module logic power supply 40 W 24 V DC -25-70 °C I/O module power supply and processor if 3.3 V not loaded
Product Specific Application	for severe environments
Supply Circuit Type	DC
Product Compatibility	all backplane
Mtbf Reliability	830000 H
Primary Voltage Limit	100...150 V
It On Activation	0.09 A.s 125 V
Status Led	1 LED (Green) presence of voltages (OK) 1 LED (Green) redundancy OK 1 LED (Green) power supply status
I²T On Activation	2.5 A².s 125 V
Input Current	600 mA 125 V
Current At Secondary Voltage	1.67 A 24 V DC I/O module power supply and processor 5 A 3.3 V DC I/O module logic power supply
Insulation Resistance	>= 100 MOhm primary/ground >= 100 MOhm primary/secondary
Net Weight	0.61 kg
Control Type	RESET push-button cold restart
Maximum Power Dissipation In W	8.5 W
Electrical Connection	1 connector 2 alarm relay 1 connector 5 line supply, protective earth
Inrush Current	60 A 125 V
Protection Type	internal fuse not accessible primary circuit overload protection secondary circuit overvoltage protection secondary circuit short-circuit protection secondary circuit
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1710011EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1710011EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	-25-70 °C
Immunity To Microbreaks	1 ms
Standards	EN 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G
Product Certifications	CE UL CSA RCM EAC Merchant Navy
Environmental Characteristic	gas resistant class Gx ISA S71.04 gas resistant class 3C4 IEC 60721-3-3 dust resistant class 3S4 IEC 60721-3-3 sand resistant class 3S4 IEC 60721-3-3 salt resistant level 2 IEC 68252 mold growth resistant class 3B2 IEC 60721-3-3 fungal spore resistant class 3B2 IEC 60721-3-3 hazardous location class I division 2
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	10-95 % without condensation
Protective Treatment	conformal coating
Ip Degree Of Protection	IP20
Dielectric Strength	1500 V primary/secondary I/O module logic power supply 1500 V primary/secondary I/O module power supply and processor 2300 V primary/secondary sensor power supply 1500 V primary/ground
