Home > Schneider Electric > Automation & Control > PLC, HMI & Data Acquisition > BMXART0814H – analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative, for severe environments

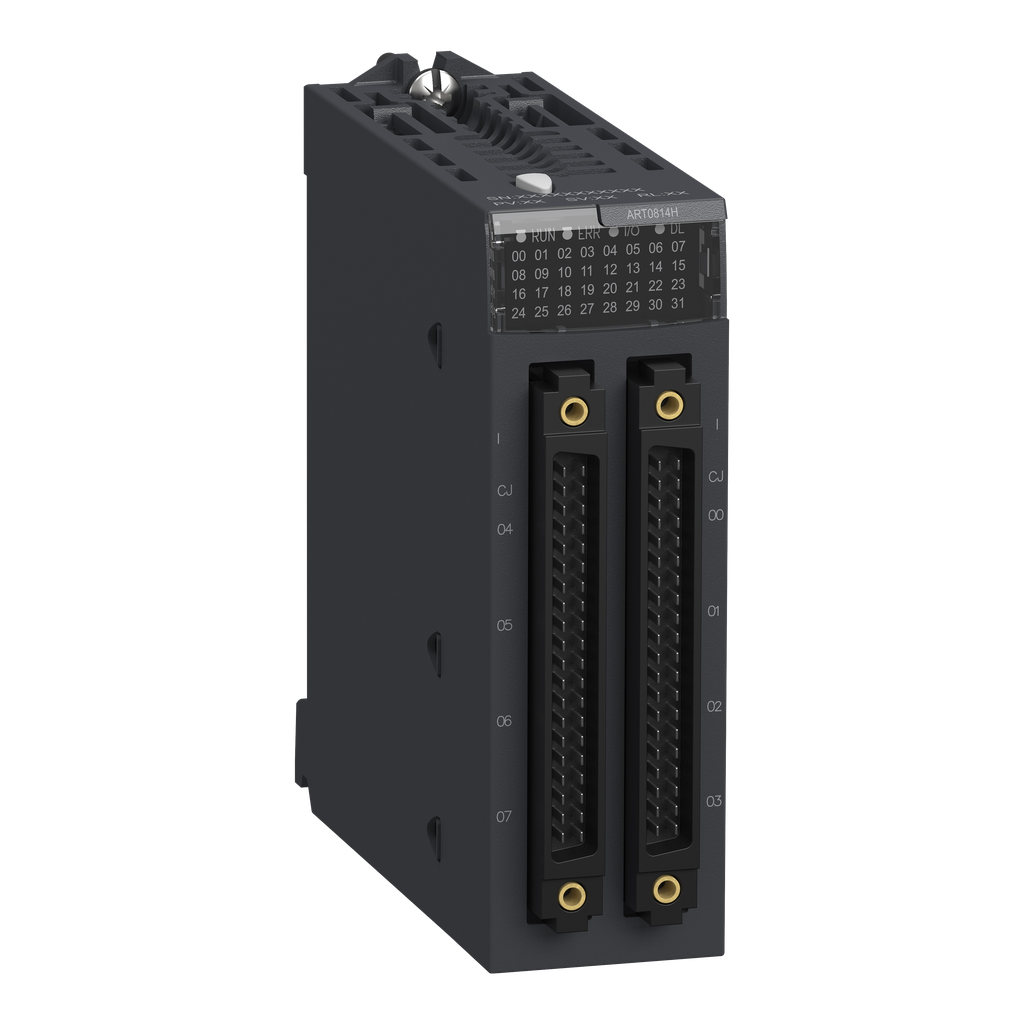

BMXART0814H – analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative, for severe environments
BMXART0814H
analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative, for severe environments

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an analogue input module with a current consumption of 150mA at 3.3V DC. There is an isolation between channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 40-way connector for electrical connection. It is an IP20 rated product. It weighs 0.165kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Modicon X80
Product Or Component Type analog input module
Input Level low level
Electrical Connection 40 ways 2 connectors
Input Output Isolation isolated
Analogue Input Number 8
Product Specific Application for severe environments
Analogue Input Type
  • voltage +/- 1.28 V
  • voltage +/- 160 mV
  • voltage +/- 320 mV
  • voltage +/- 40 mV
  • voltage +/- 640 mV
  • voltage +/- 80 mV
  • resistor 400 Ohm 2 wires
  • resistor 400 Ohm 3 wires
  • resistor 400 Ohm 4 wires
  • resistor 4000 Ohm 2 wires
  • resistor 4000 Ohm 3 wires
  • resistor 4000 Ohm 4 wires
  • temperature probe -100...+260 °C Cu 10
  • temperature probe -100...+450 °C Pt 100 UL/JIS
  • temperature probe -100...+450 °C Pt 1000 UL/JIS
  • temperature probe -200...+850 °C Pt 100 IEC
  • temperature probe -200...+850 °C Pt 1000 IEC
  • temperature probe -60...+180 °C Ni 100
  • temperature probe -60...+180 °C Ni 1000
  • thermocouple +130...+1820 °C thermocouple B
  • thermocouple +270...+1300 °C thermocouple N
  • thermocouple -200...+600 °C thermocouple U
  • thermocouple -200...+760 °C thermocouple J
  • thermocouple -200...+900 °C thermocouple L
  • thermocouple -270...+1000 °C thermocouple E
  • thermocouple -270...+1370 °C thermocouple K
  • thermocouple -270...+400 °C thermocouple T
  • thermocouple -50...+1769 °C thermocouple R
  • thermocouple -50...+1769 °C thermocouple S
Warranty 18 months
Mtbf Reliability 900000 H
Measurement Error
  • +/- 0.7 °C Ni 1000 25 °C
  • +/- 2.1 °C Ni 100 25 °C
  • +/- 2.1 °C Pt 100 25 °C
  • +/- 2.1 °C Pt 1000 25 °C
  • +/- 2.7 °C thermocouple U 25 °C
  • +/- 2.8 °C thermocouple J 25 °C
  • +/- 3 °C thermocouple L 25 °C
  • +/- 3.2 °C thermocouple R 25 °C
  • +/- 3.2 °C thermocouple S 25 °C
  • +/- 3.5 °C thermocouple B 25 °C
  • +/- 3.7 °C thermocouple E 25 °C
  • +/- 3.7 °C thermocouple K 25 °C
  • +/- 3.7 °C thermocouple N 25 °C
  • +/- 3.7 °C thermocouple T 25 °C
  • +/- 4 °C Cu 10 25 °C
  • 0.05 % of full scale +/- 1.28 V 25 °C
  • 0.05 % of full scale +/- 160 mV 25 °C
  • 0.05 % of full scale +/- 320 mV 25 °C
  • 0.05 % of full scale +/- 40 mV 25 °C
  • 0.05 % of full scale +/- 640 mV 25 °C
  • 0.05 % of full scale +/- 80 mV 25 °C
  • 0.12 % of full scale 400 Ohm 25 °C
  • 0.12 % of full scale 4000 Ohm 25 °C
  • +/- 1.5 °C Ni 1000 - 25...70 °C
  • +/- 3.5 °C Ni 100 - 25...70 °C
  • +/- 3.5 °C Pt 100 - 25...70 °C
  • +/- 3.5 °C Pt 1000 - 25...70 °C
  • +/- 4.5 °C Cu 10 - 25...70 °C
  • +/- 5.5 °C thermocouple J - 25...70 °C
  • +/- 5.5 °C thermocouple L - 25...70 °C
  • +/- 5.5 °C thermocouple R - 25...70 °C
  • +/- 5.5 °C thermocouple S - 25...70 °C
  • +/- 5.5 °C thermocouple U - 25...70 °C
  • +/- 6 °C thermocouple B - 25...70 °C
  • +/- 6 °C thermocouple E - 25...70 °C
  • +/- 6 °C thermocouple K - 25...70 °C
  • +/- 6 °C thermocouple N - 25...70 °C
  • +/- 6 °C thermocouple T - 25...70 °C
  • <= 0.2 % of full scale +/- 1.28 V - 25...70 °C
  • <= 0.2 % of full scale +/- 160 mV - 25...70 °C
  • <= 0.2 % of full scale +/- 320 mV - 25...70 °C
  • <= 0.2 % of full scale +/- 40 mV - 25...70 °C
  • <= 0.2 % of full scale +/- 640 mV - 25...70 °C
  • <= 0.2 % of full scale +/- 80 mV - 25...70 °C
  • <= 0.3 % of full scale 400 Ohm - 25...70 °C
  • <= 0.3 % of full scale 4000 Ohm - 25...70 °C
Maximum Conversion Value
  • +/- 100 % 400 Ohm
  • +/- 100 % 4000 Ohm
  • +/- 102.5 % +/- 1.28 V
  • +/- 102.5 % +/- 160 mV
  • +/- 102.5 % +/- 320 mV
  • +/- 102.5 % +/- 40 mV
  • +/- 102.5 % +/- 640 mV
  • +/- 102.5 % +/- 80 mV
Type Of Filter first order digital filtering
Status Led
  • 1 LED (Green) RUN
  • 1 LED per channel (Green) channel diagnostic
  • 1 LED (Red) ERR
  • 1 LED (Red) I/O
Temperature Drift
  • 25 ppm/°C 400 Ohm
  • 25 ppm/°C 4000 Ohm
  • 25 ppm/°C Ni 1000
  • 25 ppm/°C thermocouple B
  • 25 ppm/°C thermocouple E
  • 25 ppm/°C thermocouple J
  • 25 ppm/°C thermocouple K
  • 25 ppm/°C thermocouple L
  • 25 ppm/°C thermocouple N
  • 25 ppm/°C thermocouple R
  • 25 ppm/°C thermocouple S
  • 25 ppm/°C thermocouple T
  • 25 ppm/°C thermocouple U
  • 30 ppm/°C +/- 1.28 V
  • 30 ppm/°C +/- 160 mV
  • 30 ppm/°C +/- 320 mV
  • 30 ppm/°C +/- 40 mV
  • 30 ppm/°C +/- 640 mV
  • 30 ppm/°C +/- 80 mV
  • 30 ppm/°C Cu 10
  • 30 ppm/°C Ni 100
  • 30 ppm/°C Pt 100
  • 30 ppm/°C Pt 1000
Recalibration internal
Cold Junction Compensation external by Pt100 probe
Current Consumption
  • 220 mA 3.3 V DC
  • 50 mA 24 V DC
Analogue Input Resolution 15 bits + sign
Net Weight 0.165 kg
Differential Mode Rejection 60 dB 50/60 Hz
Nominal Read Cycle Time
  • 400 ms with temperature probe
  • 200 ms with thermocouple
Detection Type
  • open circuit Cu 10
  • open circuit Ni 100
  • open circuit Ni 1000
  • open circuit Pt 100
  • open circuit Pt 1000
  • open circuit thermocouple B
  • open circuit thermocouple E
  • open circuit thermocouple J
  • open circuit thermocouple K
  • open circuit thermocouple L
  • open circuit thermocouple N
  • open circuit thermocouple R
  • open circuit thermocouple S
  • open circuit thermocouple T
  • open circuit thermocouple U
Maximum Wiring Resistance
  • 20 Ohm 2 wires Cu 10
  • 20 Ohm 2 wires Ni 100
  • 20 Ohm 2 wires Pt 100
  • 20 Ohm 3 wires Cu 10
  • 20 Ohm 3 wires Ni 100
  • 20 Ohm 3 wires Pt 100
  • 200 Ohm 2 wires Ni 1000
  • 200 Ohm 2 wires Pt 1000
  • 200 Ohm 3 wires Ni 1000
  • 200 Ohm 3 wires Pt 1000
  • 50 Ohm 4 wires Cu 10
  • 50 Ohm 4 wires Ni 100
  • 50 Ohm 4 wires Pt 100
  • 500 Ohm 4 wires Ni 1000
  • 500 Ohm 4 wires Pt 1000
Operating Altitude
  • 0...6561.68 ft (0...2000 m)
  • 2000...5000 m with derating factor
Common Mode Rejection 120 dB 50/60 Hz
Analog/Digital Conversion sigma delta 16 bits
Measurement Resolution
  • 0.1 °C Cu 10
  • 0.1 °C Ni 100
  • 0.1 °C Ni 1000
  • 0.1 °C Pt 100
  • 0.1 °C Pt 1000
  • 0.1 °C thermocouple B
  • 0.1 °C thermocouple E
  • 0.1 °C thermocouple J
  • 0.1 °C thermocouple K
  • 0.1 °C thermocouple L
  • 0.1 °C thermocouple N
  • 0.1 °C thermocouple R
  • 0.1 °C thermocouple S
  • 0.1 °C thermocouple T
  • 0.1 °C thermocouple U
  • 1280/2exp14 mV +/- 1.28 V
  • 160/2exp14 mV +/- 160 mV
  • 320/2exp14 mV +/- 320 mV
  • 40/2exp14 mV +/- 40 mV
  • 12.5 mOhm 400 Ohm
  • 125 mOhm 4000 Ohm
  • 640/2exp14 mV +/- 640 mV
  • 80/2exp14 mV +/- 80 mV
Permitted Overload On Inputs
  • +/- 7.5 V +/- 1.28 V
  • +/- 7.5 V +/- 160 mV
  • +/- 7.5 V +/- 320 mV
  • +/- 7.5 V +/- 40 mV
  • +/- 7.5 V +/- 640 mV
  • +/- 7.5 V +/- 80 mV
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP070204EN
Sustainable Offer Status Green Premium product
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI0702004EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • CSA
  • UL
  • IEC-Ex
  • CE
  • Merchant Navy
  • RCM
  • ATEX
  • EAC
Ambient Air Temperature For Operation -25-70 °C
Standards
  • EN 61131-2
  • EN 61000-6-4
  • EN 61000-6-2
  • EN 61010-2-201
Shock Resistance 30 gn
Environmental Characteristic
  • gas resistant class Gx
  • gas resistant class 3C4
  • dust resistant class 3S4
  • sand resistant class 3S4
  • salt resistant level 2
  • mold growth resistant class 3B2
  • fungal spore resistant class 3B2
  • hazardous location class I division 2
Vibration Resistance 3 gn
Directives
  • 2014/35/EU - low voltage directive
  • 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage -40-85 °C
Relative Humidity 5-95 % 55-55 °C without condensation
Protective Treatment conformal coating
Ip Degree Of Protection IP20
