| Range Of Product |

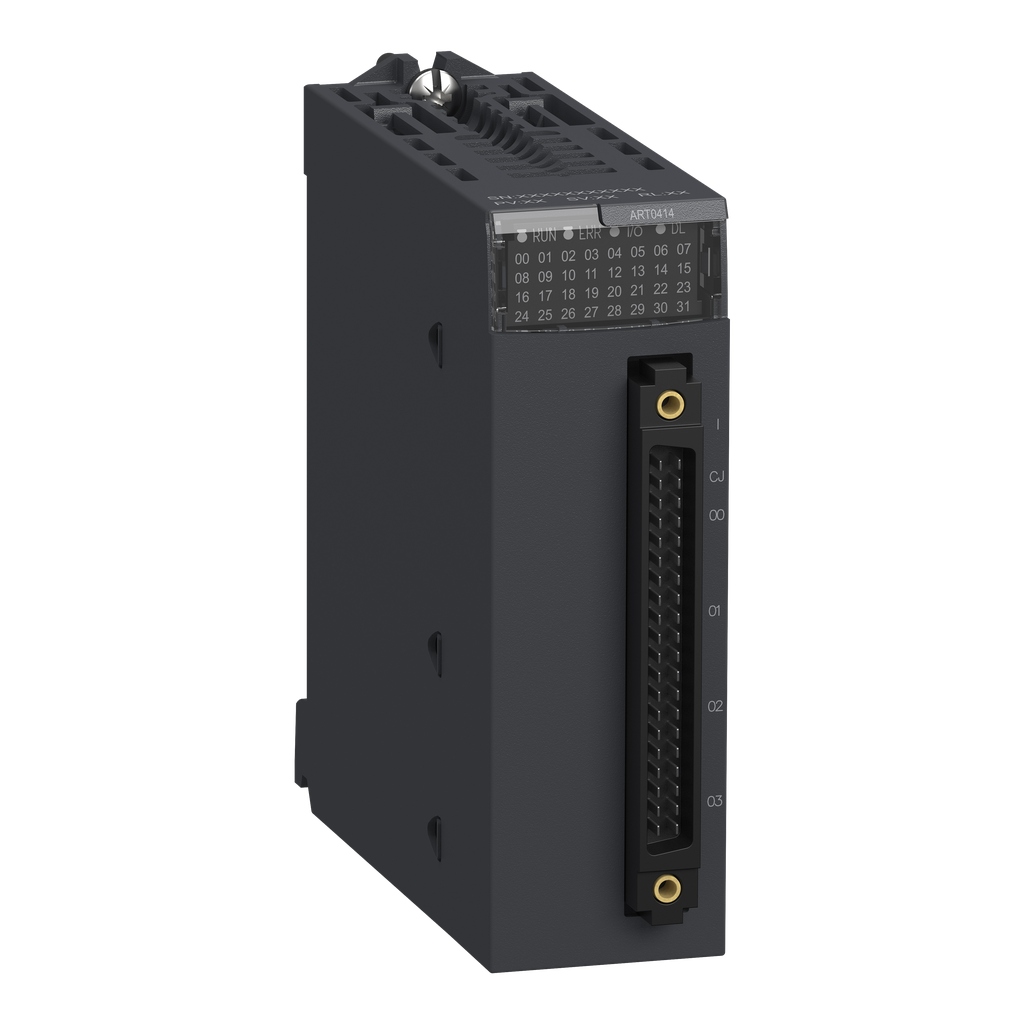

Modicon X80
|
| Product Or Component Type |
analog input module
|
| Input Level |
low level
|
| Electrical Connection |
40 ways 1 connector
|
| Input Output Isolation |
isolated
|
| Analogue Input Number |
4
|
| Analogue Input Type |
- voltage +/- 1.28 V
- voltage +/- 160 mV
- voltage +/- 320 mV
- voltage +/- 40 mV
- voltage +/- 640 mV
- voltage +/- 80 mV
- resistor 400 Ohm 2 wires
- resistor 400 Ohm 3 wires
- resistor 400 Ohm 4 wires
- resistor 4000 Ohm 2 wires
- resistor 4000 Ohm 3 wires
- resistor 4000 Ohm 4 wires
- temperature probe -100...+260 °C Cu 10
- temperature probe -100...+450 °C Pt 100 UL/JIS
- temperature probe -100...+450 °C Pt 1000 UL/JIS
- temperature probe -200...+850 °C Pt 100 IEC
- temperature probe -200...+850 °C Pt 1000 IEC
- temperature probe -60...+180 °C Ni 100
- temperature probe -60...+180 °C Ni 1000
- thermocouple +130...+1820 °C thermocouple B
- thermocouple +270...+1300 °C thermocouple N
- thermocouple -200...+600 °C thermocouple U
- thermocouple -200...+760 °C thermocouple J
- thermocouple -200...+900 °C thermocouple L
- thermocouple -270...+1000 °C thermocouple E
- thermocouple -270...+1370 °C thermocouple K
- thermocouple -270...+400 °C thermocouple T
- thermocouple -50...+1769 °C thermocouple R
- thermocouple -50...+1769 °C thermocouple S
|
| Warranty |
18 months
|
| Mtbf Reliability |
1400000 H
|
| Measurement Error |
- +/- 0.7 °C Ni 1000 25 °C
- +/- 1.3 °C Ni 1000 0...60 °C
- +/- 2 °C Pt 100 0...60 °C
- +/- 2 °C Pt 1000 0...60 °C
- +/- 2.1 °C Ni 100 25 °C
- +/- 2.1 °C Pt 100 25 °C
- +/- 2.1 °C Pt 1000 25 °C
- +/- 2.7 °C thermocouple U 25 °C
- +/- 2.8 °C thermocouple J 25 °C
- +/- 3 °C Ni 100 0...60 °C
- +/- 3 °C thermocouple L 25 °C
- +/- 3.2 °C thermocouple R 25 °C
- +/- 3.2 °C thermocouple S 25 °C
- +/- 3.5 °C thermocouple B 25 °C
- +/- 3.7 °C thermocouple E 25 °C
- +/- 3.7 °C thermocouple K 25 °C
- +/- 3.7 °C thermocouple N 25 °C
- +/- 3.7 °C thermocouple T 25 °C
- +/- 4 °C Cu 10 0...60 °C
- +/- 4 °C Cu 10 25 °C
- +/- 4.5 °C thermocouple J 0...60 °C
- +/- 4.5 °C thermocouple L 0...60 °C
- +/- 4.5 °C thermocouple R 0...60 °C
- +/- 4.5 °C thermocouple S 0...60 °C
- +/- 4.5 °C thermocouple U 0...60 °C
- +/- 5 °C thermocouple B 0...60 °C
- +/- 5 °C thermocouple E 0...60 °C
- +/- 5 °C thermocouple K 0...60 °C
- +/- 5 °C thermocouple N 0...60 °C
- +/- 5 °C thermocouple T 0...60 °C
- <= 0.15 % of full scale +/- 1.28 V 0...60 °C
- <= 0.15 % of full scale +/- 160 mV 0...60 °C
- <= 0.15 % of full scale +/- 320 mV 0...60 °C
- <= 0.15 % of full scale +/- 40 mV 0...60 °C
- <= 0.15 % of full scale +/- 640 mV 0...60 °C
- <= 0.15 % of full scale +/- 80 mV 0...60 °C
- <= 0.2 % of full scale 400 Ohm 0...60 °C
- <= 0.2 % of full scale 4000 Ohm 0...60 °C
- 0.05 % of full scale +/- 1.28 V 25 °C
- 0.05 % of full scale +/- 160 mV 25 °C
- 0.05 % of full scale +/- 320 mV 25 °C
- 0.05 % of full scale +/- 40 mV 25 °C
- 0.05 % of full scale +/- 640 mV 25 °C
- 0.05 % of full scale +/- 80 mV 25 °C
- 0.12 % of full scale 400 Ohm 25 °C
- 0.12 % of full scale 4000 Ohm 25 °C
|
| Maximum Conversion Value |
- +/- 100 % 400 Ohm
- +/- 100 % 4000 Ohm
- +/- 102.5 % +/- 1.28 V
- +/- 102.5 % +/- 160 mV
- +/- 102.5 % +/- 320 mV
- +/- 102.5 % +/- 40 mV
- +/- 102.5 % +/- 640 mV
- +/- 102.5 % +/- 80 mV
|
| Type Of Filter |
first order digital filtering
|
| Status Led |
- 1 LED (Green) RUN
- 1 LED per channel (Green) channel diagnostic
- 1 LED (Red) ERR
- 1 LED (Red) I/O
|
| Temperature Drift |
- 25 ppm/°C 400 Ohm
- 25 ppm/°C 4000 Ohm
- 25 ppm/°C Ni 1000
- 25 ppm/°C thermocouple B
- 25 ppm/°C thermocouple E
- 25 ppm/°C thermocouple J
- 25 ppm/°C thermocouple K
- 25 ppm/°C thermocouple L
- 25 ppm/°C thermocouple N
- 25 ppm/°C thermocouple R
- 25 ppm/°C thermocouple S
- 25 ppm/°C thermocouple T
- 25 ppm/°C thermocouple U
- 30 ppm/°C +/- 1.28 V
- 30 ppm/°C +/- 160 mV
- 30 ppm/°C +/- 320 mV
- 30 ppm/°C +/- 40 mV
- 30 ppm/°C +/- 640 mV
- 30 ppm/°C +/- 80 mV
- 30 ppm/°C Cu 10
- 30 ppm/°C Ni 100
- 30 ppm/°C Pt 100
- 30 ppm/°C Pt 1000
|
| Recalibration |
internal
|
| Cold Junction Compensation |
external by Pt100 probe
|
| Current Consumption |
- 150 mA 3.3 V DC
- 40 mA 24 V DC
|
| Analogue Input Resolution |
15 bits + sign
|
| Net Weight |
0.135 kg
|
| Isolation Voltage |
- 1400 V DC between channels and bus
- 750 V DC between channels
- 750 V DC between channels and ground
|
| Differential Mode Rejection |
60 dB 50/60 Hz
|
| Nominal Read Cycle Time |
- 400 ms with temperature probe
- 200 ms with thermocouple
|
| Detection Type |
- open circuit Cu 10
- open circuit Ni 100
- open circuit Ni 1000
- open circuit Pt 100
- open circuit Pt 1000
- open circuit thermocouple B
- open circuit thermocouple E
- open circuit thermocouple J
- open circuit thermocouple K
- open circuit thermocouple L
- open circuit thermocouple N
- open circuit thermocouple R
- open circuit thermocouple S
- open circuit thermocouple T
- open circuit thermocouple U
|
| Maximum Wiring Resistance |
- 20 Ohm 2 wires Cu 10
- 20 Ohm 2 wires Ni 100
- 20 Ohm 2 wires Pt 100
- 20 Ohm 3 wires Cu 10
- 20 Ohm 3 wires Ni 100
- 20 Ohm 3 wires Pt 100
- 200 Ohm 2 wires Ni 1000
- 200 Ohm 2 wires Pt 1000
- 200 Ohm 3 wires Ni 1000
- 200 Ohm 3 wires Pt 1000
- 50 Ohm 4 wires Cu 10
- 50 Ohm 4 wires Ni 100
- 50 Ohm 4 wires Pt 100
- 500 Ohm 4 wires Ni 1000
- 500 Ohm 4 wires Pt 1000
|
| Operating Altitude |
- 0...6561.68 ft (0...2000 m)
- 2000...5000 m with derating factor
|
| Common Mode Rejection |
120 dB 50/60 Hz
|
| Analog/Digital Conversion |
sigma delta 16 bits
|
| Measurement Resolution |
- 0.1 °C Cu 10
- 0.1 °C Ni 100
- 0.1 °C Ni 1000
- 0.1 °C Pt 100
- 0.1 °C Pt 1000
- 0.1 °C thermocouple B
- 0.1 °C thermocouple E
- 0.1 °C thermocouple J
- 0.1 °C thermocouple K
- 0.1 °C thermocouple L
- 0.1 °C thermocouple N
- 0.1 °C thermocouple R
- 0.1 °C thermocouple S
- 0.1 °C thermocouple T
- 0.1 °C thermocouple U
- 1280/2exp14 mV +/- 1.28 V
- 160/2exp14 mV +/- 160 mV
- 320/2exp14 mV +/- 320 mV
- 40/2exp14 mV +/- 40 mV
- 12.5 mOhm 400 Ohm
- 125 mOhm 4000 Ohm
- 640/2exp14 mV +/- 640 mV
- 80/2exp14 mV +/- 80 mV
|
| Permitted Overload On Inputs |
- +/- 7.5 V +/- 1.28 V
- +/- 7.5 V +/- 160 mV
- +/- 7.5 V +/- 320 mV
- +/- 7.5 V +/- 40 mV
- +/- 7.5 V +/- 640 mV
- +/- 7.5 V +/- 80 mV
|
| Rohs Exemption Information |
Yes
|
| Mercury Free |
Yes
|
| Environmental Disclosure |
ENVPEP070204EN
|
| Sustainable Offer Status |
Green Premium product
|
| Reach Regulation |
Reference contains Substances of Very High Concern above the threshold
|
| California Proposition 65 |
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
| Weee |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
|
| China Rohs Regulation |
X
|
| Circularity Profile |
ENVEOLI0702004EN
|
| Eu Rohs Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
|
| Product Certifications |
- EAC
- RCM
- UL
- Merchant Navy
- CSA
- CE
|
| Ambient Air Temperature For Operation |
0-60 °C
|
| Standards |
- EN 61131-2
- EN 61000-6-4
- EN 61000-6-2
- EN 61010-2-201
|
| Shock Resistance |
30 gn
|
| Vibration Resistance |
3 gn
|
| Directives |
- 2014/35/EU - low voltage directive
- 2014/30/EU - electromagnetic compatibility
|
| Ambient Air Temperature For Storage |
-40-85 °C
|
| Relative Humidity |
5-95 % 55-55 °C without condensation
|
| Ip Degree Of Protection |
IP20
|
