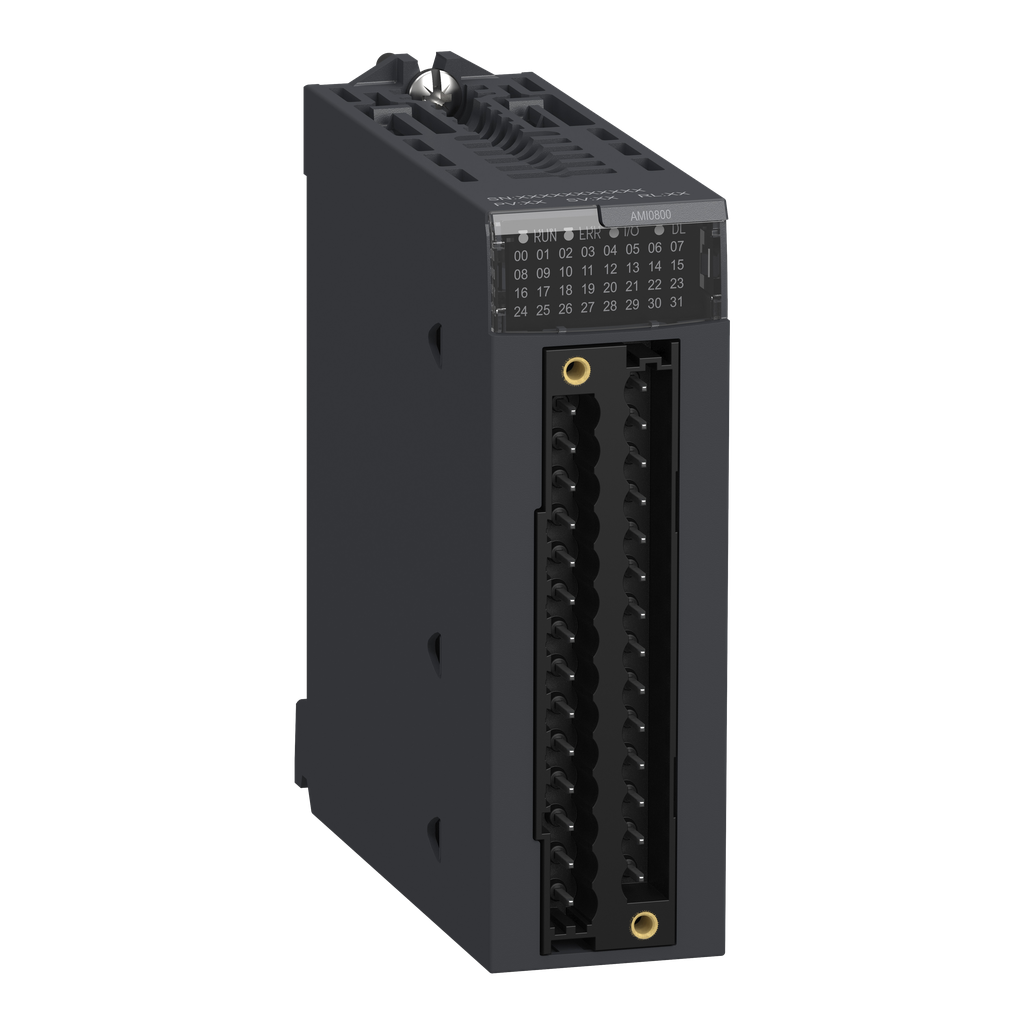

BMXAMI0800 – analog non isolated high level input module, Modicon X80, 8 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
BMXAMI0800
analog non isolated high level input module, Modicon X80, 8 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an analogue input module with a power consumption of 1.04W at 24V DC. This product is robust, high quality and based on the latest innovative technology. There is no isolation between channels. It is furnished with 28-way connector for electrical connection. It is an IP20 rated product. It weighs 0.165kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Modicon X80
Product Or Component Type analog input module
Input Level high level
Electrical Connection 28 ways 1 connector
Input Output Isolation non isolated
Analogue Input Number 8
Analogue Input Type
  • current +/- 20 mA
  • current 0...20 mA
  • current 4...20 mA
  • voltage +/- 10 V
  • voltage +/- 5 V
  • voltage 0...10 V
  • voltage 0...5 V
  • voltage 1...5 V
Warranty 18 months
Mtbf Reliability 1700000 H
Measurement Error
  • <= 0.1 % of full scale +/- 10 V 0...60 °C
  • <= 0.1 % of full scale +/- 5 V 0...60 °C
  • <= 0.1 % of full scale 0...10 V 0...60 °C
  • <= 0.1 % of full scale 0...5 V 0...60 °C
  • <= 0.1 % of full scale 1...5 V 0...60 °C
  • <= 0.3 % of full scale +/- 20 mA 0...60 °C
  • <= 0.3 % of full scale 0...20 mA 0...60 °C
  • <= 0.3 % of full scale 4...20 mA 0...60 °C
  • 0.15 % of full scale +/- 20 mA 25 °C
  • 0.15 % of full scale 0...20 mA 25 °C
  • 0.15 % of full scale 4...20 mA 25 °C
  • 0.075 % of full scale +/- 10 V 25 °C
  • 0.075 % of full scale 0...10 V 25 °C
  • 0.075 % of full scale 0...5 V 25 °C
  • 0.075 % of full scale 1...5 V 25 °C
  • 0.075 % of full scale +/- 5 V 25 °C
Maximum Conversion Value
  • +/- 11.4 V +/- 10 V
  • +/- 11.4 V 0...10 V
  • +/- 11.4 V 0...5 V
  • +/- 11.4 V 1...5 V
  • 0...30 mA +/- 20 mA
  • 0...30 mA 0...20 mA
  • 0...30 mA 4...20 mA
  • 0...30 mA +/- 5 V
Type Of Filter first order digital filtering
Status Led
  • 1 LED (Green) RUN
  • 1 LED per channel (Green) channel diagnostic
  • 1 LED (Red) ERR
  • 1 LED (Red) I/O
Precision Of Internal Conversion Resistor 0.1 % - 15 ppm/°C
Temperature Drift
  • 30 ppm/°C +/- 10 V
  • 30 ppm/°C +/- 5 V
  • 30 ppm/°C 0...10 V
  • 30 ppm/°C 0...5 V
  • 30 ppm/°C 1...5 V
  • 50 ppm/°C +/- 20 mA
  • 50 ppm/°C 0...20 mA
  • 50 ppm/°C 4...20 mA
Recalibration factory calibrated
Common Mode Rejection 100 dB
Current Consumption
  • 150 mA 3.3 V DC
  • 41 mA 24 V DC
Analogue Input Resolution 15 bits + sign
Minimum Crosstalk Attenuation 80 dB
Net Weight 0.165 kg
Input Impedance
  • 10 MOhm in voltage mode
  • 250 Ohm in current mode
Isolation Voltage
  • 1400 V DC between channels and ground
  • 1400 V DC between channels and bus
  • 50 V DC between channels
Fast Read Cycle Time 1 ms + 1 ms x number of channels used
Power Consumption In W
  • 0.90 W 24 V DC typical
  • 1.10 W 24 V DC maximum
  • 0.32 W 3.3 V DC typical
  • 0.48 W 3.3 V DC maximum
Digital Value Format
  • 32768 to + 32767 in maximum user scale
  • +/- 10000 by default
Nominal Read Cycle Time 9 ms for 8 channels
Operating Altitude
  • 0...6561.68 ft (0...2000 m)
  • 2000...5000 m with derating factor
Analog/Digital Conversion 16 bits
Measurement Resolution
  • 0.36 mV +/- 10 V
  • 0.36 mV 0...10 V
  • 0.36 mV 0...5 V
  • 0.36 mV 1...5 V
  • 0.36 mV +/- 5 V
  • 1.4 µA +/- 20 mA
  • 1.4 µA 0...20 mA
  • 1.4 µA 4...20 mA
Permitted Overload On Inputs
  • +/- 30 mA 0...20 mA
  • +/- 30 mA 4...20 mA
  • +/- 30 V +/- 10 V
  • +/- 30 V +/- 5 V
  • +/- 30 V 0...10 V
  • +/- 30 V 0...5 V
  • +/- 30 V 1...5 V
  • +/- 30 mA +/- 20 mA
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP070204EN
Sustainable Offer Status Green Premium product
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI0702004EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • CE
  • RCM
  • CSA
  • EAC
  • Merchant Navy
  • UL
Ambient Air Temperature For Operation 0-60 °C
Standards
  • EN/IEC 61010-2-201
  • EN/IEC 61131-2
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201
Shock Resistance 30 gn
Vibration Resistance 3 gn
Directives
  • 2014/35/EU - low voltage directive
  • 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage -40-85 °C
Relative Humidity 5-95 % 55-55 °C without condensation
Ip Degree Of Protection IP20
