BMXAMI0410 – analog isolated high level input module, Modicon X80, 4 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
BMXAMI0410

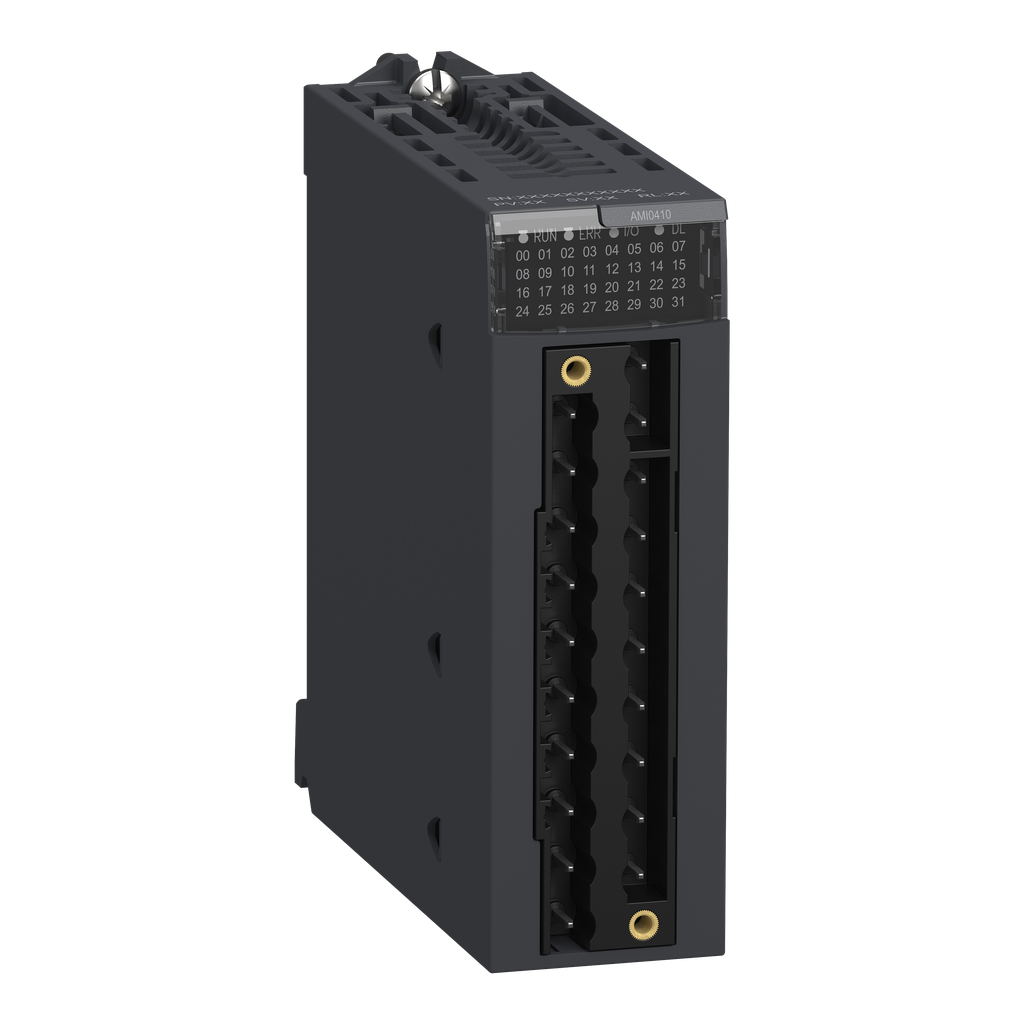

analog isolated high level input module, Modicon X80, 4 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative

This high level analog input module is part of the Modicon X80 modules. It has 4 isolated analog inputs (16 bits) and is used with sensors or transmitters. This module is connected via 20-way removable terminal block. It performs monitoring, measurement, and process control functions for continuous processes. The module offers different ranges of voltage or current for each of the inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Modicon X80
Product Or Component Type analog input module
Input Level high level
Electrical Connection 20 ways 1 connector
Input Output Isolation isolated
Analogue Input Number 4
Analogue Input Type
  • current +/- 20 mA
  • current 0...20 mA
  • current 4...20 mA
  • voltage +/- 10 V
  • voltage +/- 5 V
  • voltage 0...10 V
  • voltage 0...5 V
  • voltage 1...5 V
Warranty 18 months
Mtbf Reliability 1200000 H
Measurement Error
  • <= 0.1 % of full scale +/- 10 V 0...60 °C
  • <= 0.1 % of full scale +/- 5 V 0...60 °C
  • <= 0.1 % of full scale 0...10 V 0...60 °C
  • <= 0.1 % of full scale 0...5 V 0...60 °C
  • <= 0.1 % of full scale 1...5 V 0...60 °C
  • <= 0.3 % of full scale +/- 20 mA 0...60 °C
  • <= 0.3 % of full scale 0...20 mA 0...60 °C
  • <= 0.3 % of full scale 4...20 mA 0...60 °C
  • 0.075 % of full scale +/- 10 V 25 °C
  • 0.075 % of full scale +/- 5 V 25 °C
  • 0.075 % of full scale 0...10 V 25 °C
  • 0.075 % of full scale 0...5 V 25 °C
  • 0.075 % of full scale 1...5 V 25 °C
  • 0.15 % of full scale +/- 20 mA 25 °C
  • 0.15 % of full scale 0...20 mA 25 °C
  • 0.15 % of full scale 4...20 mA 25 °C
Maximum Conversion Value
  • +/- 11.4 V +/- 10 V
  • +/- 11.4 V +/- 5 V
  • +/- 11.4 V 0...10 V
  • +/- 11.4 V 0...5 V
  • +/- 11.4 V 1...5 V
  • 0...30 mA +/- 20 mA
  • 0...30 mA 0...20 mA
  • 0...30 mA 4...20 mA
Type Of Filter first order digital filtering
Status Led
  • 1 LED (Green) RUN
  • 1 LED per channel (Green) channel diagnostic
  • 1 LED (Red) ERR
  • 1 LED (Red) I/O
Precision Of Internal Conversion Resistor 0.1 % - 15 ppm/°C
Temperature Drift
  • 15 ppm/°C +/- 10 V
  • 15 ppm/°C +/- 5 V
  • 15 ppm/°C 0...10 V
  • 15 ppm/°C 0...5 V
  • 15 ppm/°C 1...5 V
  • 30 ppm/°C +/- 20 mA
  • 30 ppm/°C 0...20 mA
  • 30 ppm/°C 4...20 mA
Recalibration internal
Common Mode Rejection 90 dB
Current Consumption
  • 150 mA 3.3 V DC
  • 45 mA 24 V DC
Analogue Input Resolution 16 bits
Minimum Crosstalk Attenuation 80 dB
Net Weight 0.143 kg
Input Impedance
  • 10 MOhm in voltage mode
  • 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode
Isolation Voltage
  • 300 V DC between channels
  • 1400 V DC between channels and ground
  • 1400 V DC between channels and bus
Fast Read Cycle Time 1 ms + 1 ms x number of channels used
Power Consumption In W
  • 0.82 W 24 V DC typical
  • 1.30 W 24 V DC maximum
  • 0.32 W 3.3 V DC typical
  • 0.48 W 3.3 V DC maximum
Digital Value Format
  • 32768 to + 32767 in maximum user scale
  • +/- 10000 by default
Nominal Read Cycle Time 5 ms for 4 channels
Operating Altitude
  • 0...6561.68 ft (0...2000 m)
  • 2000...5000 m with derating factor
Analog/Digital Conversion 24 bits
Measurement Resolution
  • 0.35 mV +/- 10 V
  • 0.35 mV +/- 5 V
  • 0.35 mV 0...10 V
  • 0.35 mV 0...5 V
  • 0.35 mV 1...5 V
  • 0.92 µA +/- 20 mA
  • 0.92 µA 0...20 mA
  • 0.92 µA 4...20 mA
Permitted Overload On Inputs
  • +/- 30 V +/- 10 V
  • +/- 30 V +/- 5 V
  • +/- 30 V 0...10 V
  • +/- 30 V 0...5 V
  • +/- 30 V 1...5 V
  • +/- 90 mA +/- 20 mA
  • +/- 90 mA 0...20 mA
  • +/- 90 mA 4...20 mA
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP070204EN
Sustainable Offer Status Green Premium product
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI0702004EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • CE
  • RCM
  • CSA
  • EAC
  • Merchant Navy
  • UL
Ambient Air Temperature For Operation 0-60 °C
Standards
  • EN/IEC 61010-2-201
  • EN/IEC 61131-2
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201
Shock Resistance 30 gn
Vibration Resistance 3 gn
Directives
  • 2014/35/EU - low voltage directive
  • 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage -40-85 °C
Relative Humidity 5-95 % 55-55 °C without condensation
Ip Degree Of Protection IP20
