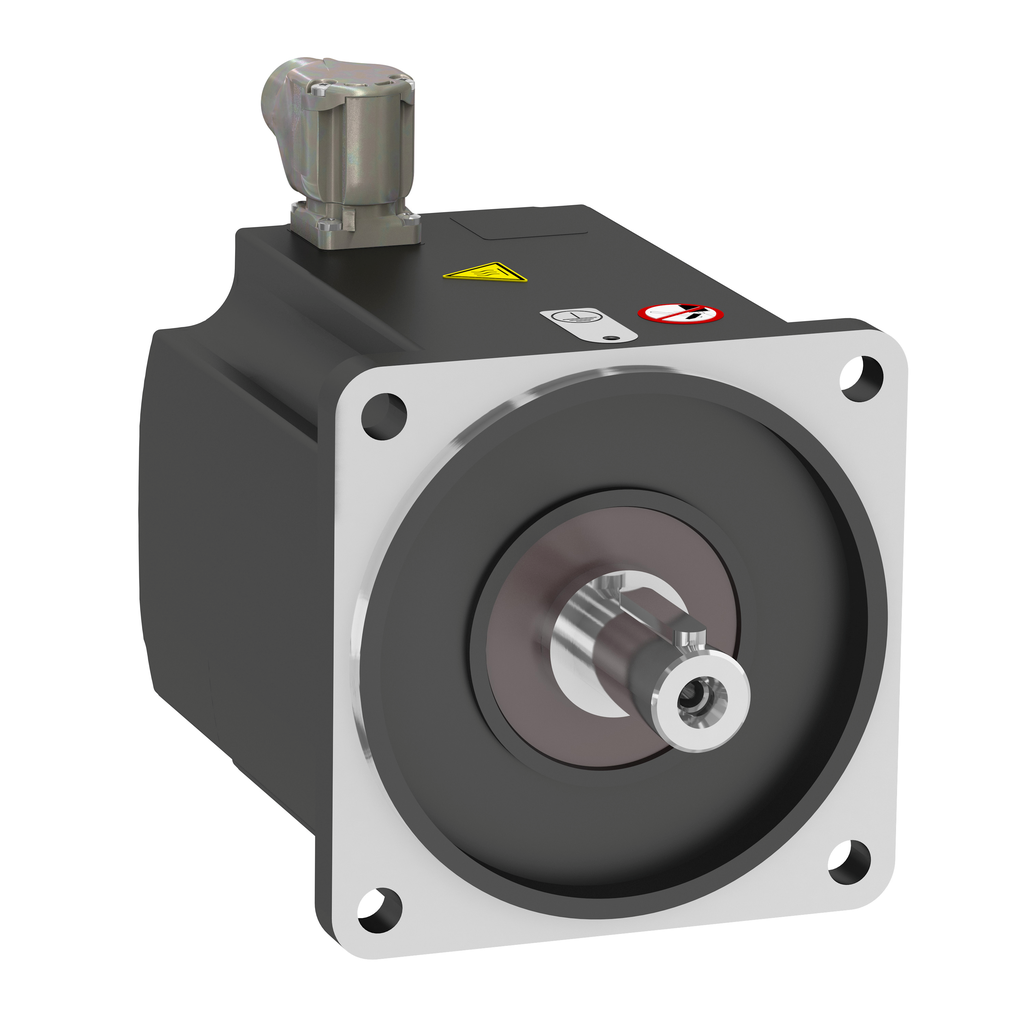

BMP1402F3NA2A - synchronous motor - BMP - 480 VAC - 3.95 kW - IP65 - IEC

BMP1402F3NA2A

synchronous motor - BMP - 480 VAC - 3.95 kW - IP65 - IEC

Add to Quote Catalogue

Specifications

Product Compatibility	variable speed drive ATV32 2.2 kW 200 V single phase variable speed drive ATV32 3 kW 400 V three phase variable speed drive ATV32 4 kW 400 V three phase variable speed drive ATV320 2.2 kW 200...240 V single phase variable speed drive ATV320 3 kW 380...500 V three phase variable speed drive ATV320 4 kW 380...500 V three phase
Nominal Output Power	3000 W ATV32 3 kW 400 V three phase 3000 W ATV32 4 kW 400 V three phase 2200 W ATV32 2.2 kW 200 V single phase 3000 W ATV320 3 kW 400 V three phase 3000 W ATV320 4 kW 400 V three phase 2200 W ATV320 2.2 kW 200 V single phase
Maximum Mechanical Speed	3600 rpm
Mounting Support	international standard flange
Ip Degree Of Protection	IP65 standard IP67 with IP67 kit
Shaft End	keyed
Nominal Speed	1500 rpm ATV32 2.2 kW 200 V single phase 3000 rpm ATV32 3 kW 400 V three phase 3000 rpm ATV32 4 kW 400 V three phase 1500 rpm ATV320 2.2 kW 200 V single phase 3000 rpm ATV320 3 kW 400 V three phase 3000 rpm ATV320 4 kW 400 V three phase
Electrical Connection	rotatable right-angled connector
Holding Brake	without
Product Or Component Type	synchronous motor
Nominal Torque	14.01 N.m ATV32 2.2 kW 200 V single phase 9.55 N.m ATV32 3 kW 400 V three phase 9.55 N.m ATV32 4 kW 400 V three phase 14.01 N.m ATV320 2.2 kW 200 V single phase 9.55 N.m ATV320 3 kW 400 V three phase 9.55 N.m ATV320 4 kW 400 V three phase
Device Short Name	BMP
Warranty	18 months
Number Of Mounting Holes	4
Shaft Diameter	24 mm
Key Width	8 mm
Minimum Operating Frequency	13 Hz ATV32 2.2 kW 200 V single phase 25 Hz ATV32 3 kW 400 V three phase 25 Hz ATV32 4 kW 400 V three phase 13 Hz ATV320 2.2 kW 200 V single phase 25 Hz ATV320 3 kW 400 V three phase 25 Hz ATV320 4 kW 400 V three phase
Mounting Holes Diameter	11 mm
Circle Diameter Of The Mounting Holes	165-165 mm
Type Of Cooling	natural convection
Maximum Radial Force Fr	2240 N 1000 rpm 1780 N 2000 rpm 1550 N 3000 rpm
Maximum Operating Frequency	150 Hz ATV32 2.2 kW 200 V single phase 300 Hz ATV32 3 kW 400 V three phase 300 Hz ATV32 4 kW 400 V three phase 150 Hz ATV320 2.2 kW 200 V single phase 300 Hz ATV320 3 kW 400 V three phase 300 Hz ATV320 4 kW 400 V three phase
Number Of Motor Stacks	2
Rotor Inertia	32 kg.cm²
Number Of Motor Poles	5
Maximum Axial Force Fa	0.2 x Fr
Centring Collar Depth	3.5 mm
Stator Resistance	0.34 Ohm 40 °C
Range Compatibility	Altivar Machine ATV320 Altivar 32
Nominal Operating Frequency	125 Hz ATV32 2.2 kW 200 V single phase 250 Hz ATV32 3 kW 400 V three phase 250 Hz ATV32 4 kW 400 V three phase 125 Hz ATV320 2.2 kW 200 V single phase 250 Hz ATV320 3 kW 400 V three phase 250 Hz ATV320 4 kW 400 V three phase
Shaft Length	50 mm
Phase	three phase
Length	192 mm
Maximum Current Irms	16.5 A ATV32 2.2 kW 200 V single phase 10.7 A ATV32 3 kW 400 V three phase 14.3 A ATV32 4 kW 400 V three phase 16.5 A ATV320 2.2 kW 200 V single phase 10.7 A ATV320 3 kW 400 V three phase 14.3 A ATV320 4 kW 400 V three phase
Net Weight	12 kg
Torque Constant	1.48 N.m/A 40 °C
Centring Collar Diameter	130 mm
Stator Inductance	4.23 mH for q-axis winding 40 °C 3.78 mH for d-axis winding 40 °C
Motor Flange Size	140 mm
[Us] Rated Supply Voltage	480 V
China Rohs Regulation	X
Rohs Exemption Information	Yes
Mercury Free	Yes
Pvc Free	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
