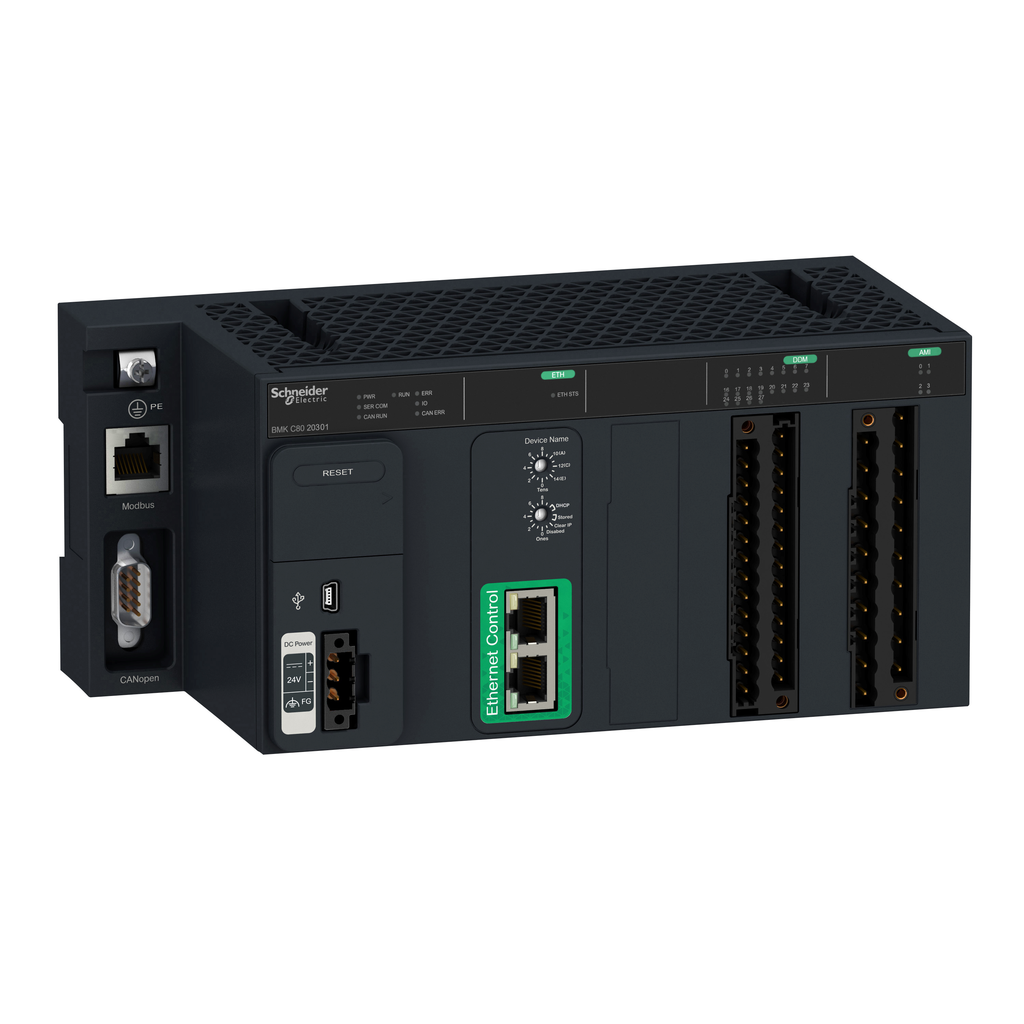

BMKC8020301
Modicon MC80, Controller, 8 DI, 12 DO, 4 AI
Specifications
| Range Of Product | Modicon MC80 |
|---|---|
| Product Or Component Type | processor module |
| Product Specific Application | thermo solar - parabolic through |
| Discrete Input Type | type 3 |
| Integrated Connection Type | USB port mini B USB |
| Discrete Output Number | 12 positive |
| Discrete Input Voltage | 19...30 V DC |
| Communication Port Protocol |
|
| Protection Type |
|
| Discrete Input Number | 8 positive logic (sink) |
| Discrete Input Current | 2.4 mA |
| Discrete Output Current |
|
| Current Consumption | <= 700 mA |
| Discrete Output Voltage | 19...30 V DC |
| Communication Service |
|
| Function Available | memory retention without battery |
| Analogue Input Number | 4 |
| Isolation Voltage | 1500 V DC |
| [Us] Rated Supply Voltage | 24 V - 15...20 % DC |
| Fast Read Cycle Time | 1.3 ms + 1.3 ms x number of channels used |
| Execution Time Per Instruction |
|
| Nominal Read Cycle Time | 6.5 ms for 4 channels |
| Product Compatibility |
|
| Analogue Input Resolution | 16 bits |
| Realtime Clock | with |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Analogue Input Type |
|
| Bus Length |
|
| Memory Description |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407022EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1407022EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications | RCM |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Marking | CE |
| Vibration Resistance | 3 gn |
| Relative Humidity | 0-95 % |
| Ambient Air Temperature For Storage | -40-85 °C |
