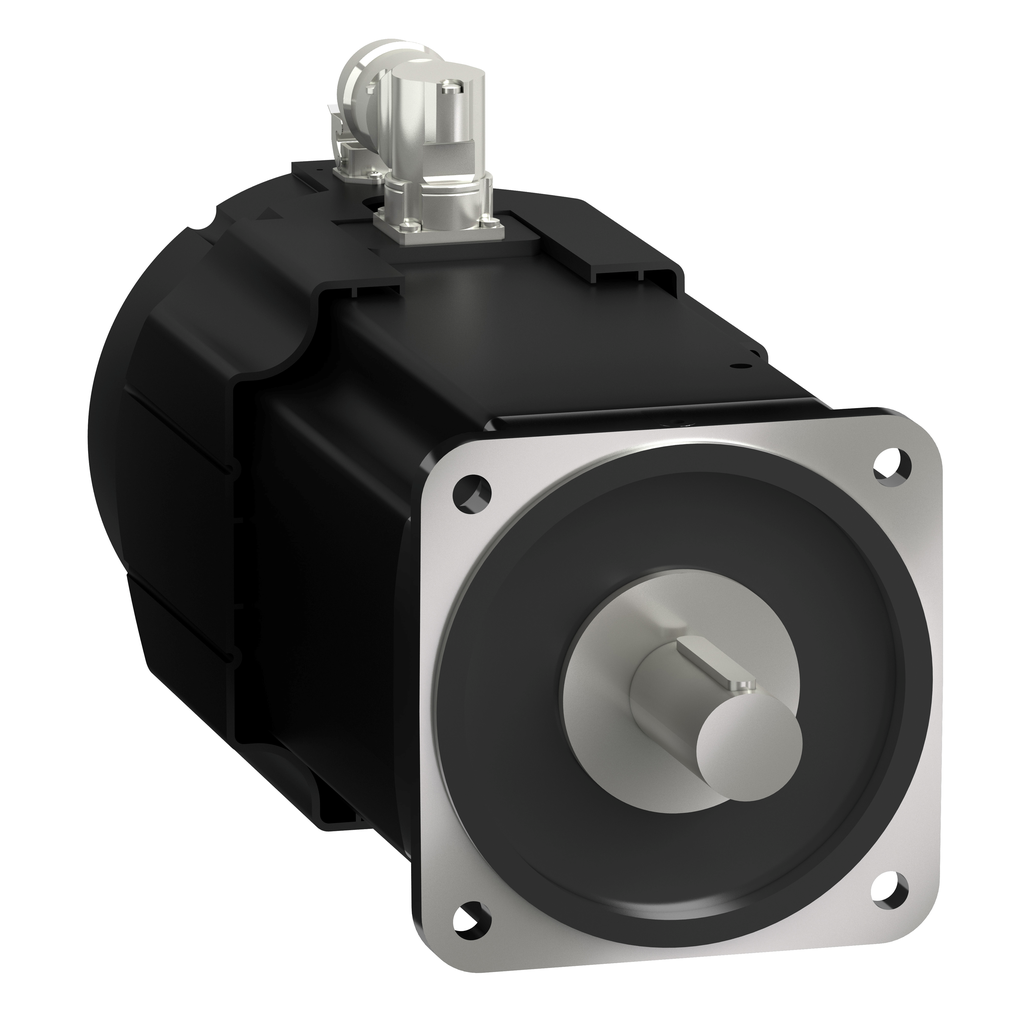

BMH1904P32A2B
servo motor BMH, Lexium 32, 100Nm, 3000rpm, untapped shaft, without brake, IP20, IP65, 128 multiturn encoder
Specifications
| Maximum Mechanical Speed | 3000 rpm |
|---|---|
| Mounting Support | international standard flange |
| Holding Brake | without |
| Speed Feedback Resolution | 131072 points/turn x 4096 turns |
| Product Or Component Type | servo motor |
| Nominal Output Power |
|
| Peak Stall Torque |
|
| Ip Degree Of Protection |
|
| Shaft End | keyed |
| Nominal Speed |
|
| Electrical Connection | rotatable right-angled connectors |
| Nominal Torque |
|
| Device Short Name | BMH |
| Continuous Stall Torque |
|
| Circle Diameter Of The Mounting Holes | 215 mm |
| Maximum Permanent Current | 100 A |
| Stator Electrical Time Constant | 29.6 ms 20 °C |
| Maximum Radial Force Fr |
|
| Number Of Motor Stacks | 4 |
| Rotor Inertia | 276.7 kg.cm² |
| Number Of Motor Poles | 10 |
| Back Emf Constant | 168 V/krpm 120 °C |
| Maximum Axial Force Fa | 0.2 x Fr |
| Centring Collar Depth | 4 mm |
| Second Shaft | without second shaft end |
| Shaft Length | 80 mm |
| Phase | three phase |
| Length | 449.5 mm |
| Maximum Current Irms |
|
| Net Weight | 57.4 kg |
| Centring Collar Diameter | 180 mm |
| Stator Inductance | 4.74 mH 20 °C |
| Motor Flange Size | 190 mm |
| [Us] Rated Supply Voltage | 480 V |
| Number Of Mounting Holes | 4 |
| Shaft Diameter | 38 mm |
| Key Width | 10 mm |
| Mounting Holes Diameter | 14 mm |
| Type Of Cooling | fan |
| Feedback Type | multiturn SinCos Hiperface |
| Stator Resistance | 0.16 Ohm 20 °C |
| Range Compatibility | Lexium 32 |
| Continuous Stall Current | 40 A |
| Torque Constant | 2.5 N.m/A 120 °C |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111049EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
