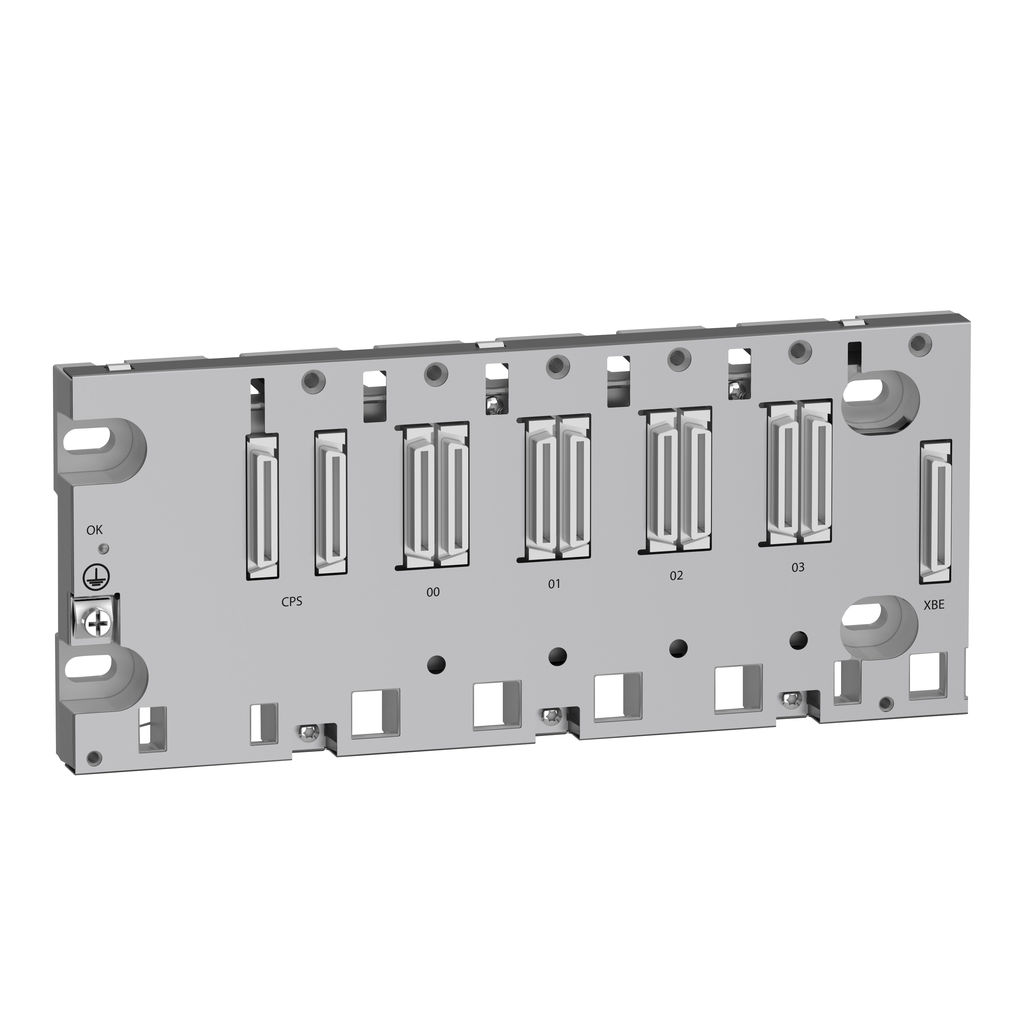

BMEXBP0400H
rack, Modicon X80, 4 slots, Ethernet backplane, ruggedized
Specifications
| Range Of Product | Modicon X80 |
|---|---|
| Product Specific Application | for severe environments |
| Accessory / Separate Part Type | ruggedized rack |
| Mtbf Reliability | 2000000 H |
| Fixing Mode |
|
| Power Consumption In W |
|
| Electrical Connection | 1 connector (XBE) expansion module |
| Number Of Slots | 4 bus X + Ethernet |
| Current Consumption |
|
| Product Compatibility |
|
| Net Weight | 0.705 kg |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2203018EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2203018EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Ambient Air Temperature For Operation | -25-70 °C |
| Directives |
|
| Standards |
|
| Relative Humidity | 5-95 % without condensation |
| Product Certifications |
|
| Environmental Characteristic |
|
| Protective Treatment | conformal coating |
| Ip Degree Of Protection | IP20 |
