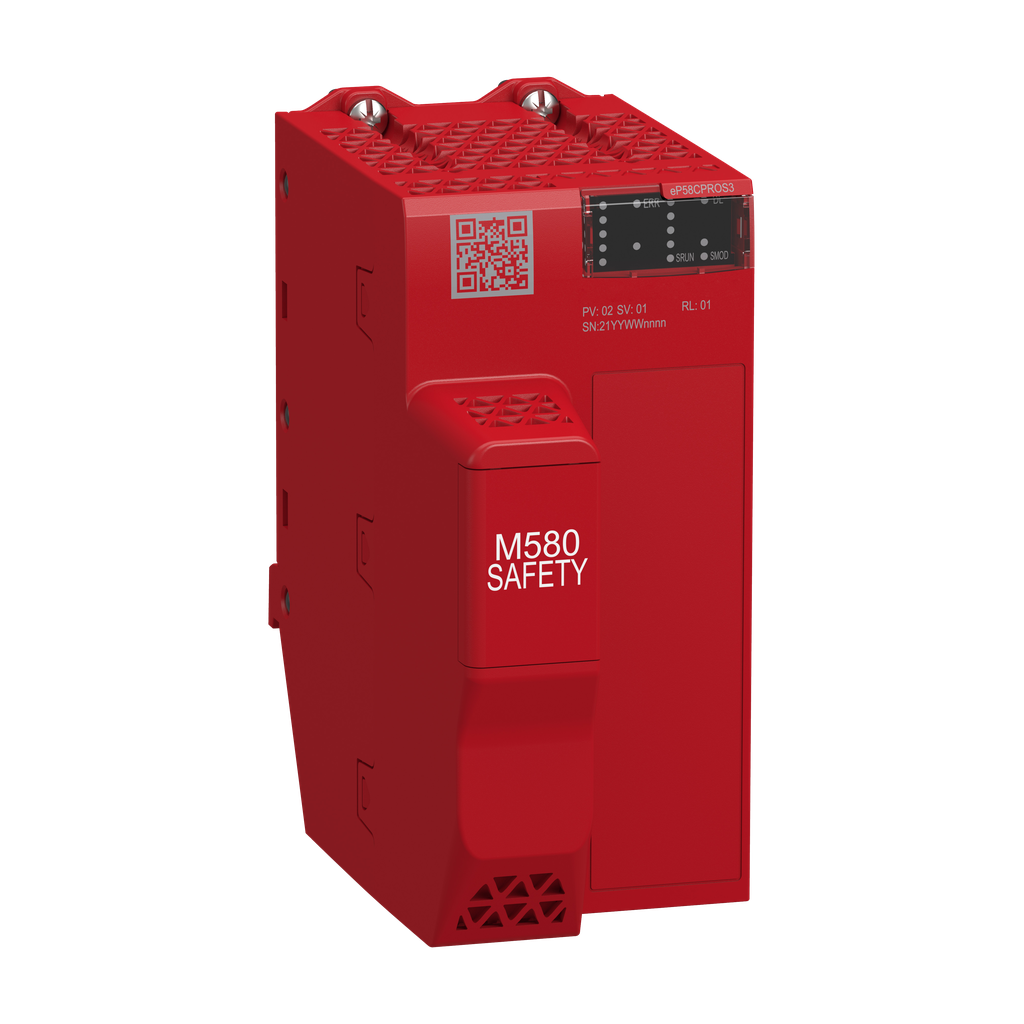

BMEP58CPROS3
standalone safety coprocessor, Modicon M580, SIL3
Specifications
| Range Of Product | Modicon M580 |
|---|---|
| Product Or Component Type | processor module |
| Mtbf Reliability | 946000 H |
| Marking | CE |
| Current Consumption | 295 mA 24 V DC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1312016EN_V3.pdf |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1312016EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -25-60 °C |
| Status Led |
|
| Standards |
|
| Product Certifications |
|
| Supply | internal power supply via rack |
| Shock Resistance | 15 gn |
| Environmental Characteristic |
|
| Vibration Resistance | 3 gn |
| Net Weight | 0.849 kg |
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Operating Altitude |
|
| Protective Treatment | conformal coating |
| Ip Degree Of Protection | IP20 |
| Safety Level |
|
