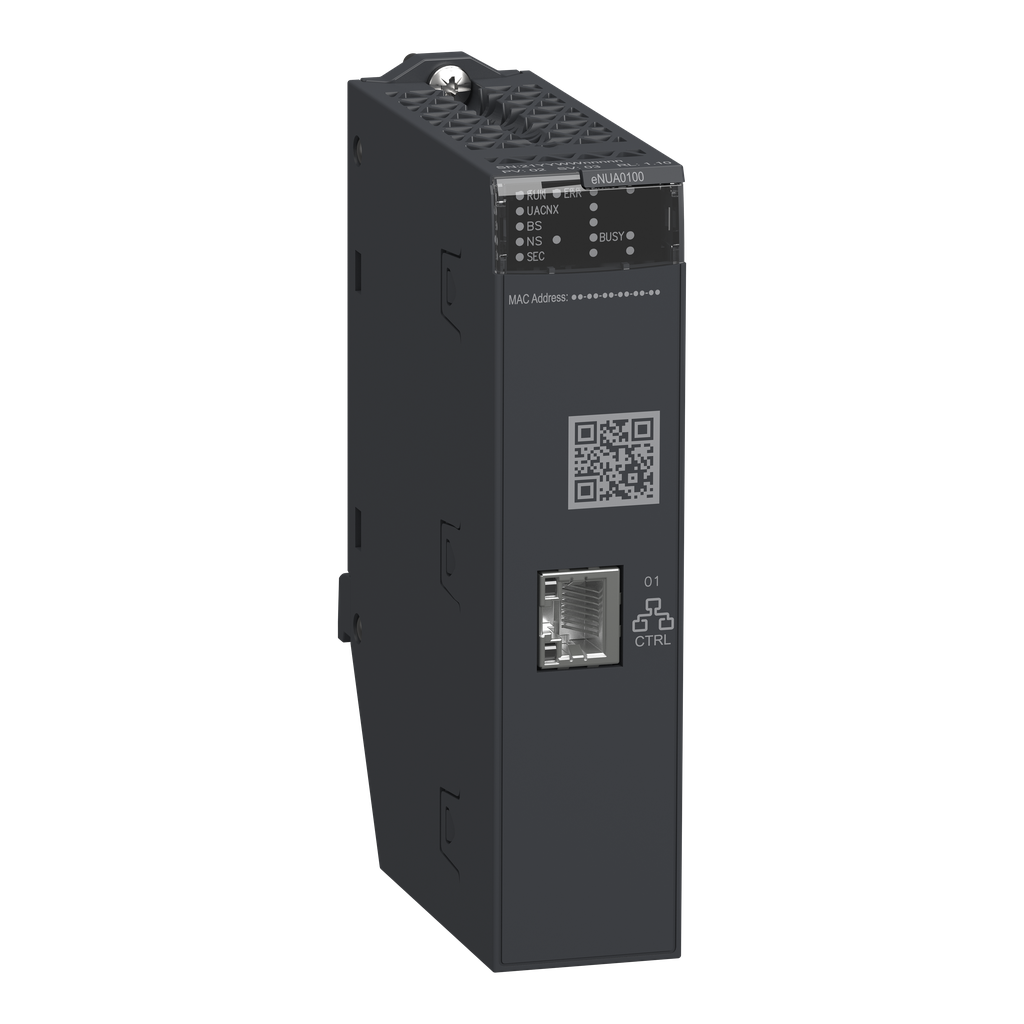

communication module, Modicon M580, OPC UA
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This module is an Ethernet communications module with an embedded OPC UA server for communication with OPC UA clients, including SCADA. It provides complete Ethernet transparency when connected to the Ethernet backplane. OPC UA is a reliable standard for industrial communications. It supports HTTPS protocol. It offers cybersecurity setting service. It weighs 0.383kg. It brings high-performance OPC UA capabilities to Modicon M580 ePAC systems. This product conforms to the OPC UA V1.03 and K3/C3, K3/C2 standards. It can be installed either on an Ethernet or a X-bus rack. The module is delivered in 1 packing unit. It can be installed in any X80 Ethernet backplane slot in the head rack of a Modicon M580 ePAC system. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon M580 |
|---|---|
| Product Or Component Type | communication module |
| Product Compatibility | Ethernet + X-bus rack |
| Cybersecurity |
|
| Height | 131 mm |
| Supply | internal power supply via rack |
| Marking |
|
| Current Consumption | <= 140 mA 24 V DC |
| Length | 86.05 mm |
| Transmission Support Medium | Ethernet backplane |
| Net Weight | 0.4 kg |
| Communication Service |
|
| Integrated Connection Type |
|
| Module Format | standard |
| Port Ethernet | 10/100/1000 BASE-TX |
| Width | 32 mm |
| Protective Treatment | standard version |
| Web Server | for configuration |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | 0-60 °C |
| Directives |
|
| Relative Humidity | 5-95 % at 55 °C |
| Local Signalling |
|
| Ip Degree Of Protection | IP20 |
