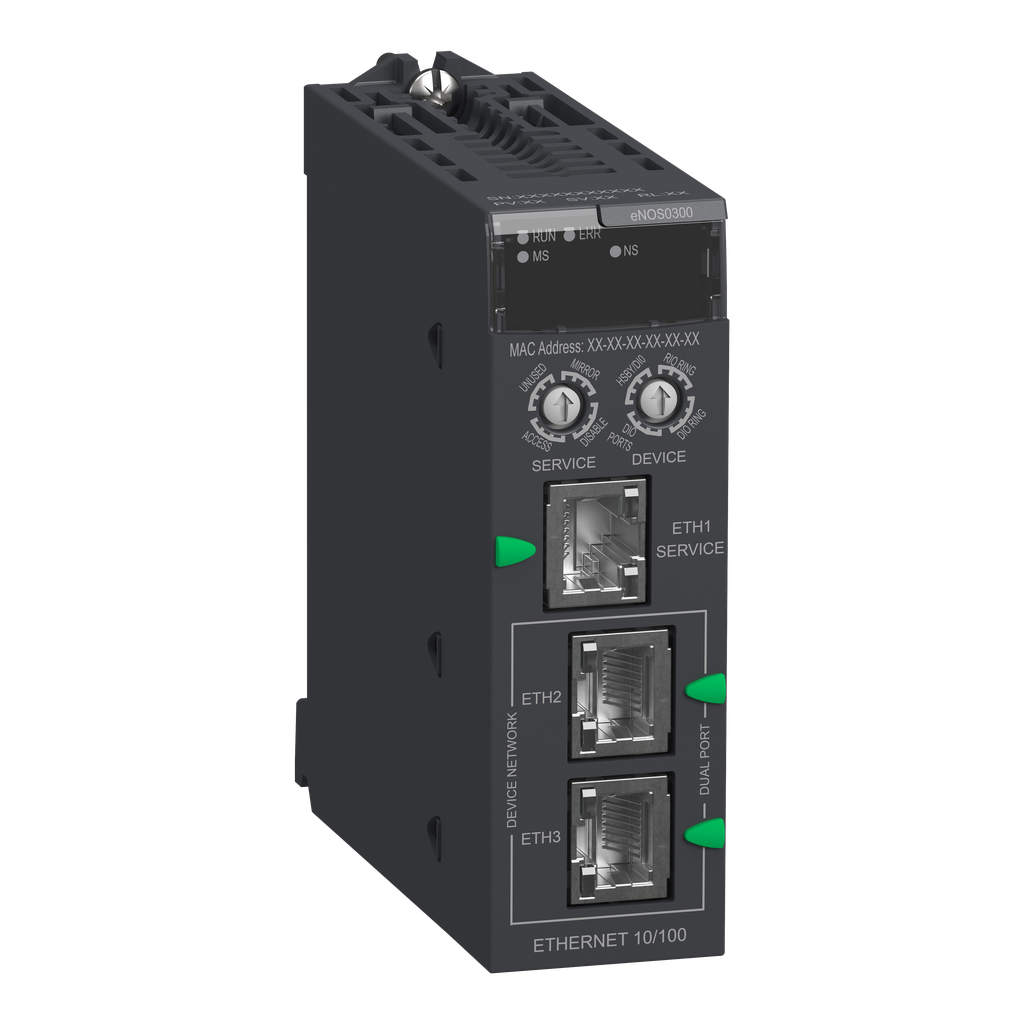

switch module, Modicon X80, network option switch
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This network option switch has 3 ports. It is a network option switch with a rated supply voltage of 24V and a power consumption of 4.5W. This product is robust, high quality and based on the latest innovative technology. Integrated connections are EtherNet/IP for device network and service port. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, ABS, BV, GL, EAC, LR, DNV, RINA. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This switch module is compatible with BMEXBP backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon X80 |
|---|---|
| Product Or Component Type | switch module |
| Product Compatibility | BMEXBP... backplane |
| Power Consumption In W |
|
| Communication Port Protocol | EtherNet/IP |
| Number Of Port | 3 |
| Integrated Connection Type |
|
| Local Signalling |
|
| Module Format | standard |
| [Us] Rated Supply Voltage | 24 V back plane |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | 0-60 °C |
| Marking | CE |
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 95-95 % without condensation |
| Overvoltage Category | II |
| Maximum Altitude Transport | 3000 m |
| Ip Degree Of Protection | IP20 |
| Operating Altitude | <= 6561.68 ft (2000 m) |
