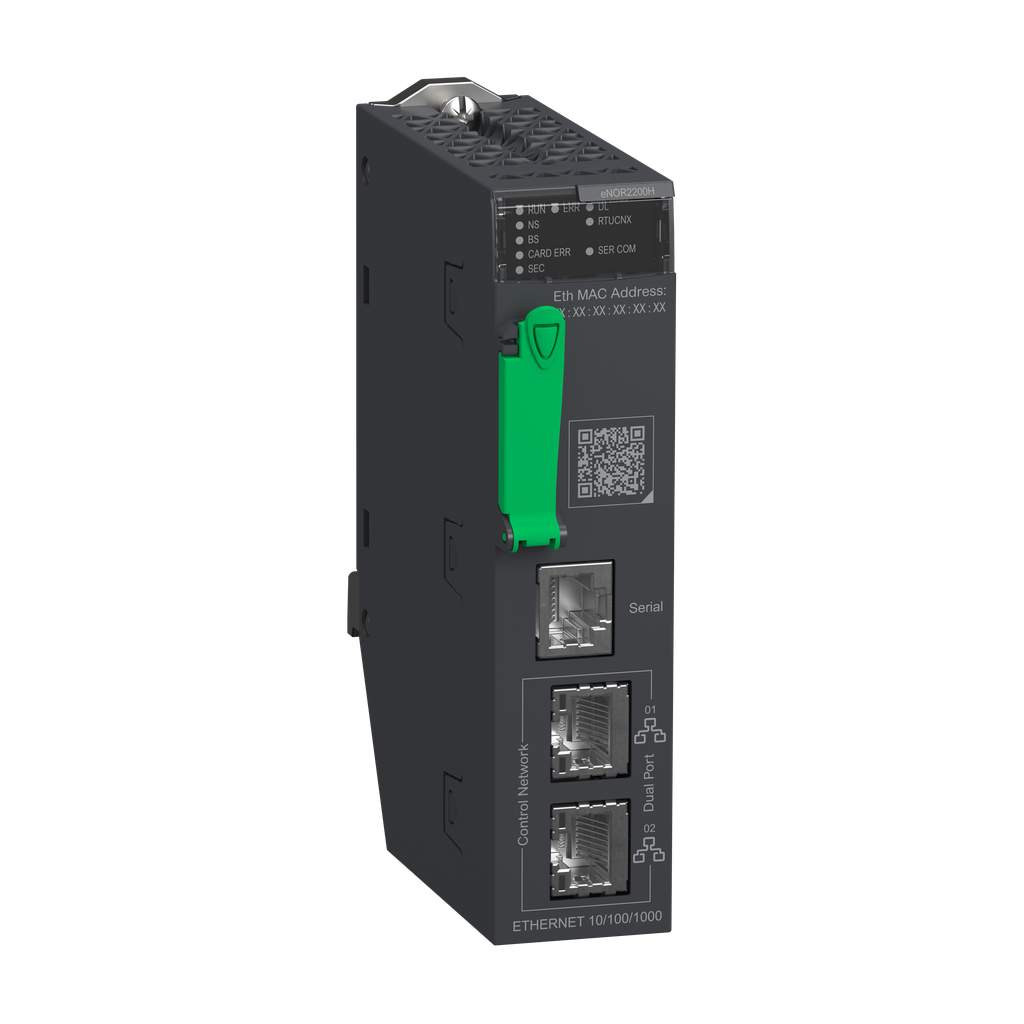

BMENOR2200H - communication module, Modicon M580, IEC 60870-5-101/104, DNP3, for severe environments

BMENOR2200H

communication module, Modicon M580, IEC 60870-5-101/104, DNP3, for severe environments

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This communication module enables M580 platform to use RTU protocol exchange with RTU stations. It features enhanced cybersecurity. It complies with M580 Hot Standby system. It supports up to 64 devices when module acts as Client/Master. It weighs 0.345kg. It provides enhanced cybersecurity. It complies with DNP3 NET IEC60870-5-104 RTU protocol. The module is delivered in 1 packing unit. It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	Modicon X80
Product Or Component Type	communication module
Product Compatibility	BMEXBP... - Ethernet + X-bus rack
Cybersecurity	role-based access control system hardening secure communiction (HTTPS) Achilles certified Syslog protocol support Transport Layer Security for RTU protocols SNMP logging certificate based authentication
Shock Resistance	30 gn
Height	131 mm
Supply	internal power supply via rack
Dielectric Strength	1500 V DC 1 min, between Serial port and bus/earth
Current Consumption	110 mA 24 V DC
Length	86 mm
Net Weight	0.38 kg
Communication Service	DNP3 NET server SAv2/SAv5 with pre-shared key DNP3 NET client SAv2/SAv5 with pre-shared key IEC 60870-5-101 server/client IEC 60870-5-104 server/client Modbus TCP messaging web server (HTTPS), HTML5 FDR client SNTP client SNMP agent time stamped events management automatic events backup on power loss transparent events routing from remote servers to SCADA data logging service
Integrated Connection Type	1 RS232 RJ45 115200 bit/s 8 wires 1 RS485 RJ45 115200 bit/s 1 twisted shielded pair 1 Ethernet 100 Mbit/s Ethernet backplane
Width	32 mm
Protective Treatment	conformal coating
Memory Description	support flash SD memory card (BMXRMS004GPF) 4 GB
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP070204EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI0702004EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	-25-70 °C
Standards	EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G EN/IEC 60079-0
Product Certifications	CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 safety certification non interfering type 1 UKCA
Environmental Characteristic	gas resistant class Gx ISA S71.04 gas resistant class 3C4 IEC 60721-3-3 dust resistant class 3S4 IEC 60721-3-3 sand resistant class 3S4 IEC 60721-3-3 salt resistant level 2 IEC 68252 mold growth resistant class 3B2 IEC 60721-3-3 fungal spore resistant class 3B2 IEC 60721-3-3 hazardous location class I division 2
Vibration Resistance	3 gn
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	5-95 % at 55 °C
Local Signalling	for cyber security (SEC) 1 LED (green/red) for serial communication (SER COM) 1 LED (yellow) for download in progress (DL) 1 LED (red) for processor or system fault (ERR) 1 LED (red) for memory card fault (CARD ERR) 1 LED (red) for status of Ethernet network (ETH STS) 1 LED (green/red) for processor running (RUN) 1 LED (green)
Operating Altitude	0...6561.68 ft (0...2000 m) 2000 m...5000 m with derating factor
Ip Degree Of Protection	IP20
