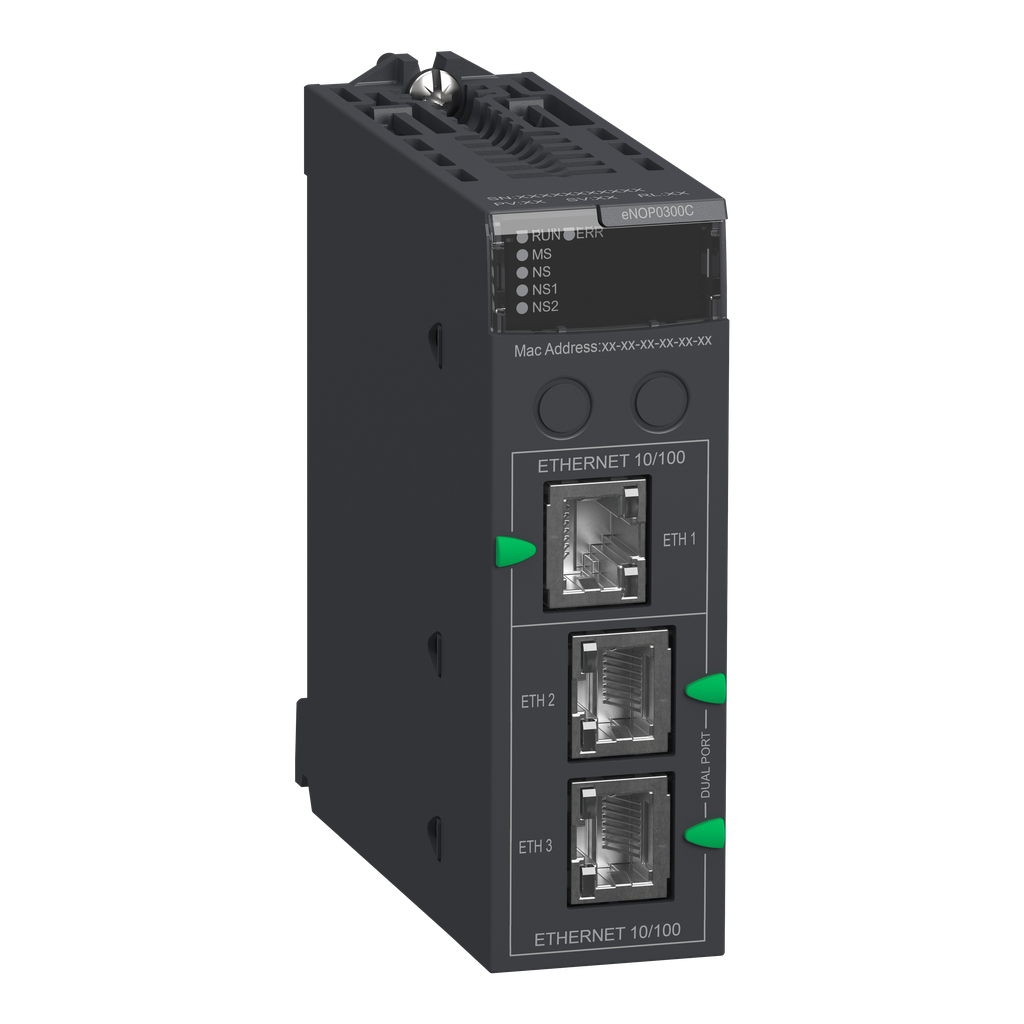

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This M580 module provides interfaces for IEC 61850 communication It supports communication as IEC 61850 client, IEC 61850 server, GOOSE publisher, GOOSE subscriber, and Modbus TCP server and client. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. The BMENOP0300 module has three external Ethernet ports, whose IP addresses can be configured. The maximum number of BMENOP0300 modules that can be mounted on a local rack is determined by the type of CPU. It weighs 0.345kg. It provides high network availability. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. it is compatible with the entire range of M580 CPUs, in both standalone and redundant configuration. The module is delivered in 1 packing unit. The BMENOP0300 IEC 61850 module is installed on the local Ethernet backplane of a M580 system. The benefits of Modicon M580 are reduced time to market, improved reliability and sustainability, improved productivity with high performance and increased operating profitability due to efficient access to data. The benefits of Modicon M580 are reduced time to market, improved productivity with high performance and increased operating profitability due to improved access to data.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon M580 |
---|---|
Product Or Component Type | communication module |
Physical Interface | 3 Ethernet 10/100BASE-TX |
Transmission Support Medium | ethernet cable |
Transmission Rate |
|
Net Weight | 0.24 kg |
Current Consumption | 1250 mA 3.3 V DC internal |
Communication Service |
|
Module Format | standard |
Product Compatibility | M580 PAC |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP070204EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI0702004EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ambient Air Temperature For Operation | 0-60 °C |
Standards |
|
Product Certifications |
|
Environmental Characteristic |
|
Directives |
|
Ambient Air Temperature For Storage | -40-85 °C |
Relative Humidity | 0-95 % without condensation |
Protective Treatment | conformal coating |
Operating Altitude | <= 6561.68 ft (2000 m) |
