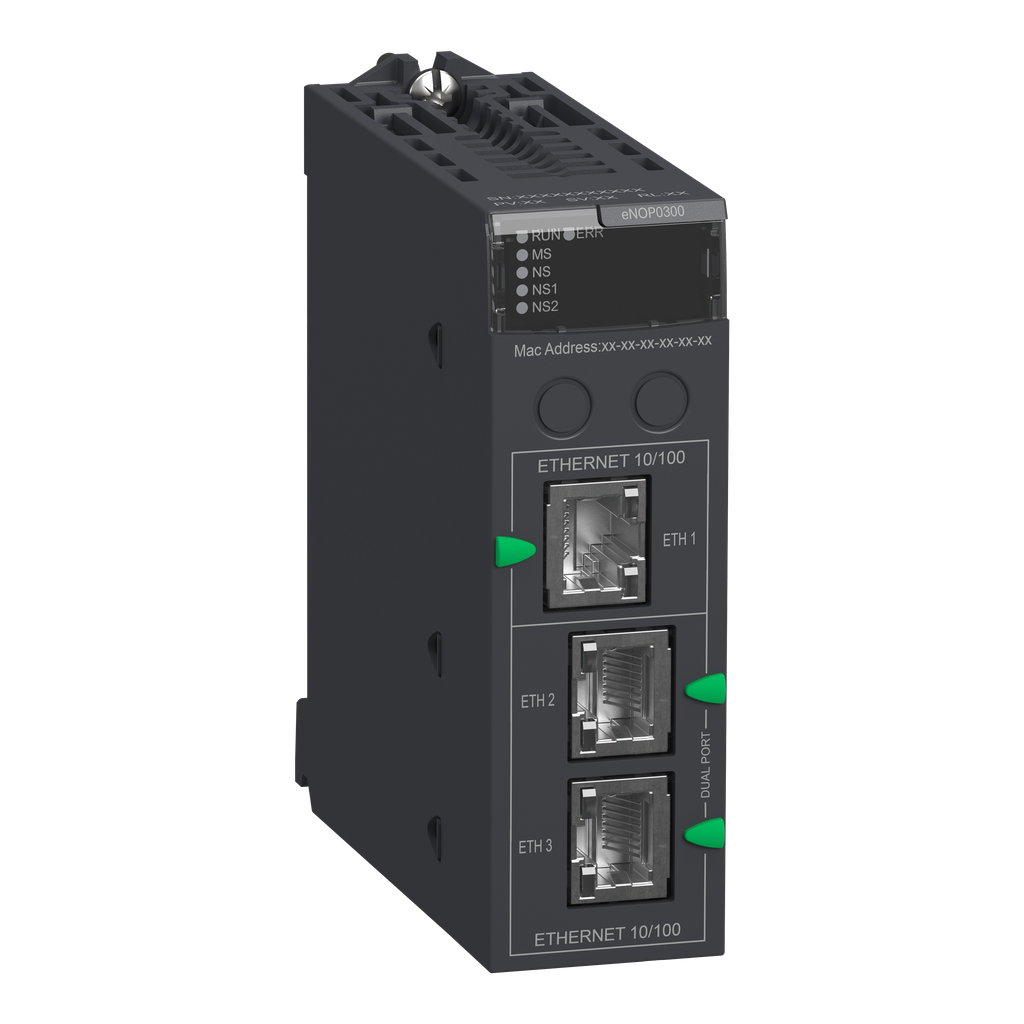

communication module, Modicon M580, IEC 61850
This communication module is part of the Modicon M580 range, an offer of PACs with built-in Ethernet and communication modules. This communication module offers ethernet cable for transmission support medium with 10Mbps and 100Mbps transmission rate. It is interfaced with 3 Ethernet 10/100BASE-TX. This communication module enables M580 platform to proceed to IEC 61850-compliant data exchange. It features MMS messaging client for IEC 61850, MMS messaging server for IEC 61850, Goose for IEC 61850, Modbus TCP messaging, RSTP support etc. It weighs 0.24kg. It is suitable for medium to large process applications. It is compatible with M580 PAC. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data. Modicon M580 ePAC is the controller which can help hybrid manufacturers achieve better, measurable and earlier ROI.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon M580 |
|---|---|
| Product Or Component Type | communication module |
| Physical Interface | 3 Ethernet 10/100BASE-TX |
| Transmission Support Medium | ethernet cable |
| Transmission Rate |
|
| Net Weight | 0.24 kg |
| Current Consumption | 1250 mA 3.3 V DC internal |
| Communication Service |
|
| Module Format | standard |
| Product Compatibility | M580 PAC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | 0-60 °C |
| Environmental Characteristic | standard environment |
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 0-95 % without condensation |
| Operating Altitude | <= 6561.68 ft (2000 m) |
