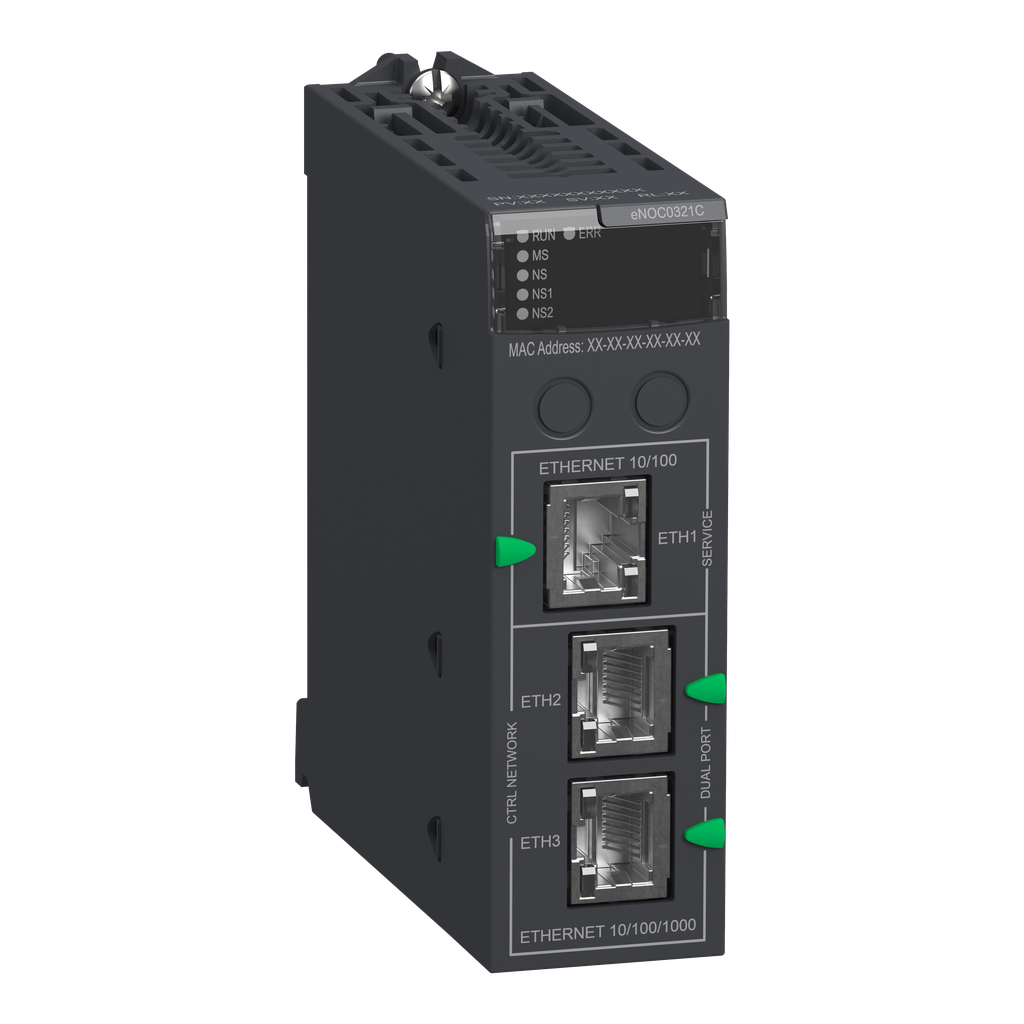

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This Ethernet control router acts as an interface between the M580 PLC and other Ethernet network devices, even in severe environments. It provides bridge transparency from the control network to the device network Thanks to a protective coating on its circuit board, this product can be used in harsh environments. It provides services such as embedded IP forwarding, IPSec feature, FDR server, time synchronization, SMTP, embedded multiport switch, and multiple diagnostics, etc. It is a communication module with a current consumption of 555mA, works with internal power supply. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This connection sub-base is compatible with BMEXBPxxx - Ethernet + X-bus rack. The module is delivered in 1 packing unit. It occupies one slot on the rack. The benefits of Modicon M580 are reduced time to market, improved reliability and sustainability, improved productivity with high performance and increased operating profitability due to efficient access to data. The benefits of Modicon M580 are reduced time to market, improved productivity with high performance and increased operating profitability due to improved access to data.

Brand: Schneider Electric
