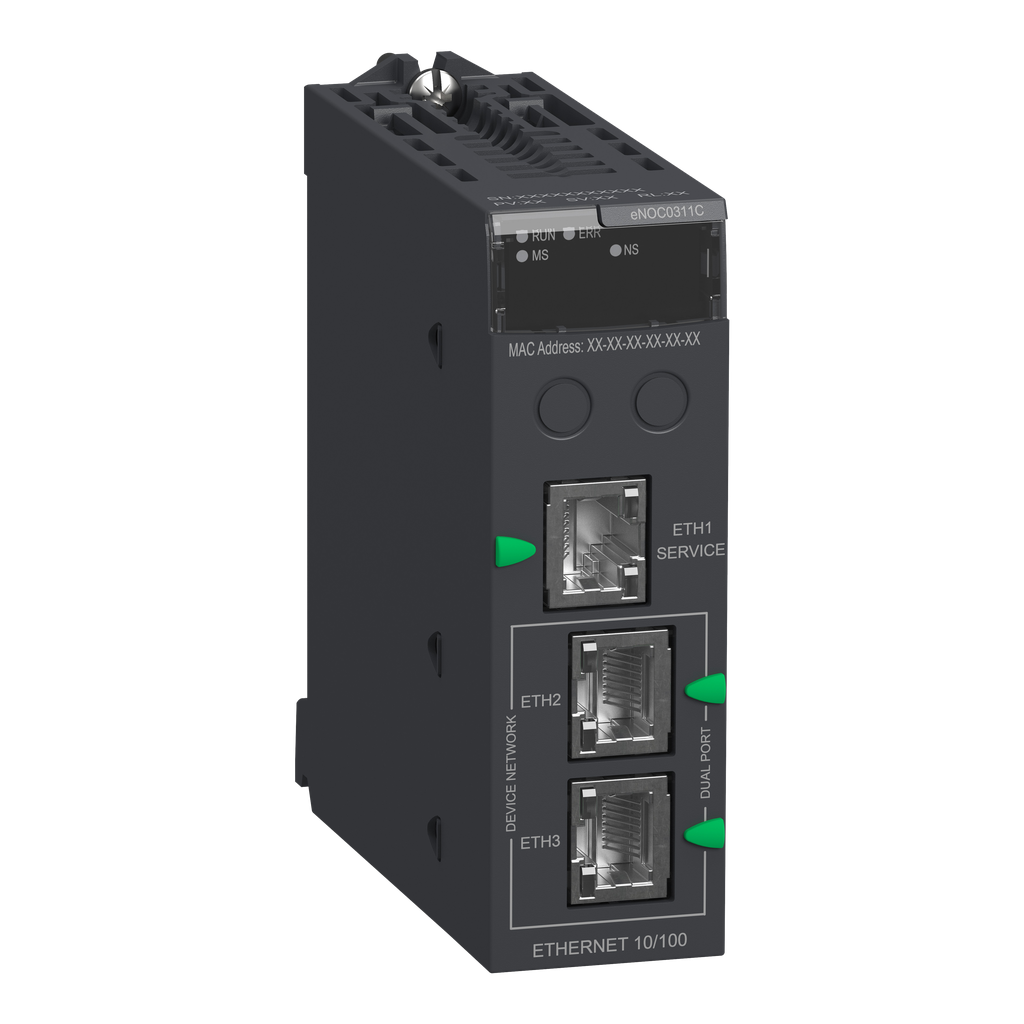

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This Ethernet FactoryCast module acts as an interface between the M580 PLC and other Ethernet network devices in severe environments. It provides web-based visualization of ePAC diagnostics and system data Thanks to a protective coating on its circuit board, this product can be used in harsh environments. Web-based visualization services are custom web pages, rack viewer, ePAC program viewer, customizable dashboard, trand viewer etc. It is a communication module with a current consumption of 555mA, works with internal power supply. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This connection sub-base is compatible with BMEXBPxxx - Ethernet + X-bus rack. The module is delivered in 1 packing unit. It occupies one slot on the rack. The benefits of Modicon M580 are reduced time to market, improved reliability and sustainability, improved productivity with high performance and increased operating profitability due to efficient access to data. The benefits of Modicon M580 are reduced time to market, improved productivity with high performance and increased operating profitability due to improved access to data.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon M580 |
---|---|
Product Or Component Type | communication module |
Product Compatibility | BMEXBP... - Ethernet + X-bus rack |
Product Specific Application | for severe applications |
Concept | Transparent Ready |
Web Services | FactoryCast configurable |
Supply | internal power supply via rack |
Marking | CE |
Current Consumption |
|
Transmission Support Medium | Ethernet backplane |
Net Weight | 0.2 kg |
Communication Service |
|
Integrated Connection Type | 3 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair |
Module Format | standard |
Port Ethernet | 10BASE-T/100BASE-TX |
Protective Treatment | conformal coating |
Web Server | advanced |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP070204EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI0702004EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ambient Air Temperature For Operation | 0-60 °C |
Standards |
|
Product Certifications |
|
Environmental Characteristic |
|
Directives |
|
Local Signalling |
|
Ip Degree Of Protection | IP20 |
