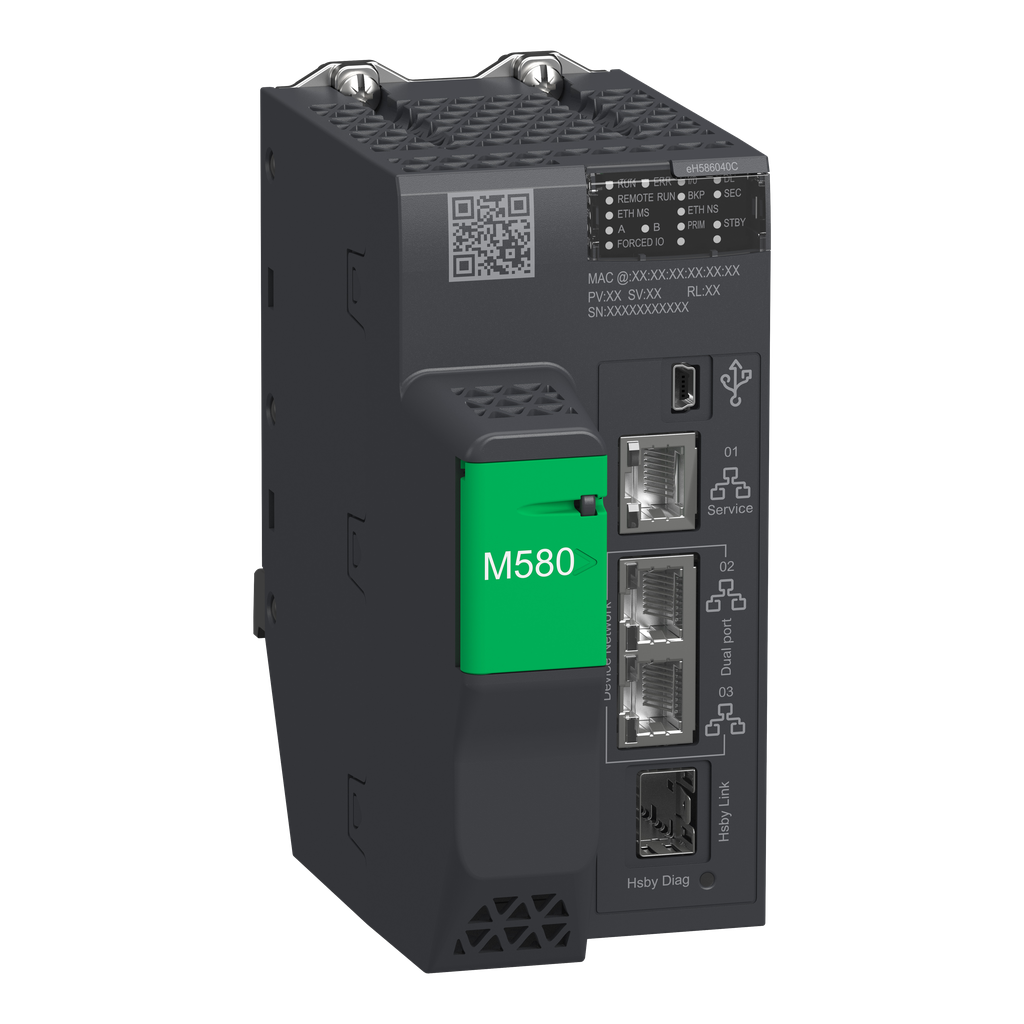

redundant processor, Modicon M580, 64MB, 61 Ethernet devices, 31 remote IO racks of X80 and Quantum, conformal coating
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This redundant processor module offers a maximum of 1 rack configuration. It is a processor module with a current consumption of 295mA at 24V DC. It supports 64 distributed equipment. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. It is integrated with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for connections. It offers 600000 hours of MTBF. It has 31 - 2 racks per remote drop for I/O station. It has an integrated RAM of 64MB for program and data, integrated RAM of 10kb for system memory and an expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by UL, ATEX, IEC-Ex, CE, Merchant Navy, CSA, RCM and EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon M580 |
|---|---|
| Product Or Component Type | redundant processor module |
| Impregnation Material | conformal coated |
| Mtbf Reliability | 650000 H |
| Number Of Distributed Equipment | 64 |
| Communication Module Processor Capacity |
|
| Communication Service |
|
| Number Of Racks | 1 |
| Marking | CE |
| Current Consumption | 365 mA 24 V DC |
| Application Structure |
|
| Number Of Remote I/O Station | 31 - 2 X80 and Quantum drops |
| Integrated Connection Type |
|
| Application Specific I/O |
|
| Number Of Instructions Per Ms |
|
| Memory Description |
|
| Control Channels | programmable loops |
| Checks | process control |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1312016EN_V3.pdf |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1312016EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -25-60 °C |
| Status Led |
|
| Standards |
|
| Product Certifications |
|
| Supply | internal power supply via rack |
| Shock Resistance | 30 gn |
| Environmental Characteristic |
|
| Vibration Resistance | 3 gn |
| Net Weight | 0.849 kg |
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Operating Altitude |
|
| Protective Treatment | conformal coating |
| Ip Degree Of Protection | IP20 |
