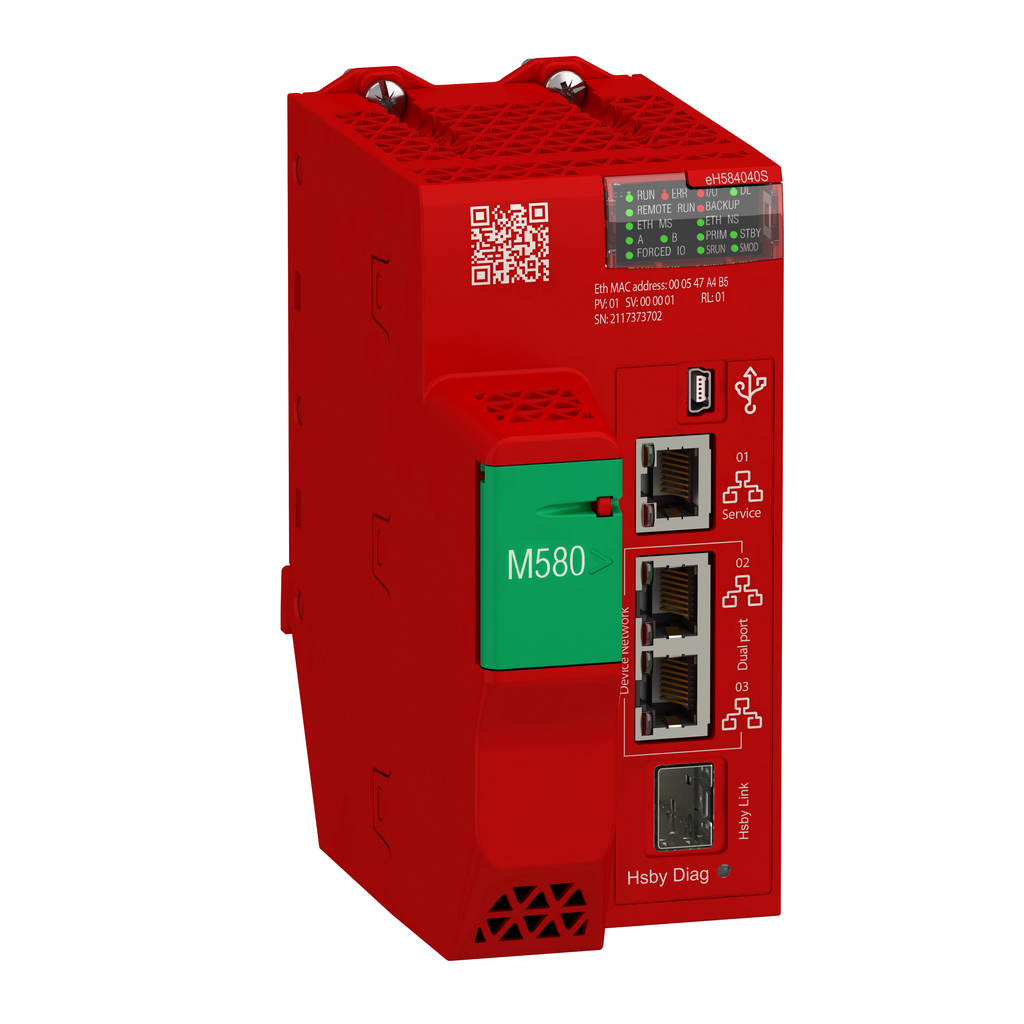

BMEH584040S
redundant safety processor, Modicon M580, 16MB, 61 Ethernet devices, 16 remote IO racks of X80 & Quantum IO
Specifications
| Range Of Product | Modicon M580 |
|---|---|
| Product Or Component Type | redundant processor module |
| Impregnation Material | conformal coated |
| Mtbf Reliability | 650000 H |
| Number Of Distributed Equipment | 61.0 |
| Communication Module Processor Capacity |
|
| Communication Service |
|
| Number Of Racks | 1 |
| Marking | CE |
| Current Consumption | 360 mA 24 V DC |
| Application Structure |
|
| Number Of Remote I/O Station | 16.0 - 2 X80 and Quantum drops |
| Integrated Connection Type |
|
| Application Specific I/O |
|
| Number Of Instructions Per Ms |
|
| Memory Description |
|
| Control Channels | programmable loops |
| Checks |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1312016EN_V3.pdf |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1312016EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -25-60 °C |
| Status Led |
|
| Standards |
|
| Product Certifications |
|
| Supply | internal power supply via rack |
| Shock Resistance | 15 gn |
| Environmental Characteristic |
|
| Vibration Resistance | 3 gn |
| Net Weight | 0.849 kg |
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Operating Altitude |
|
| Protective Treatment | conformal coating |
| Ip Degree Of Protection | IP20 |
| Safety Level |
|
