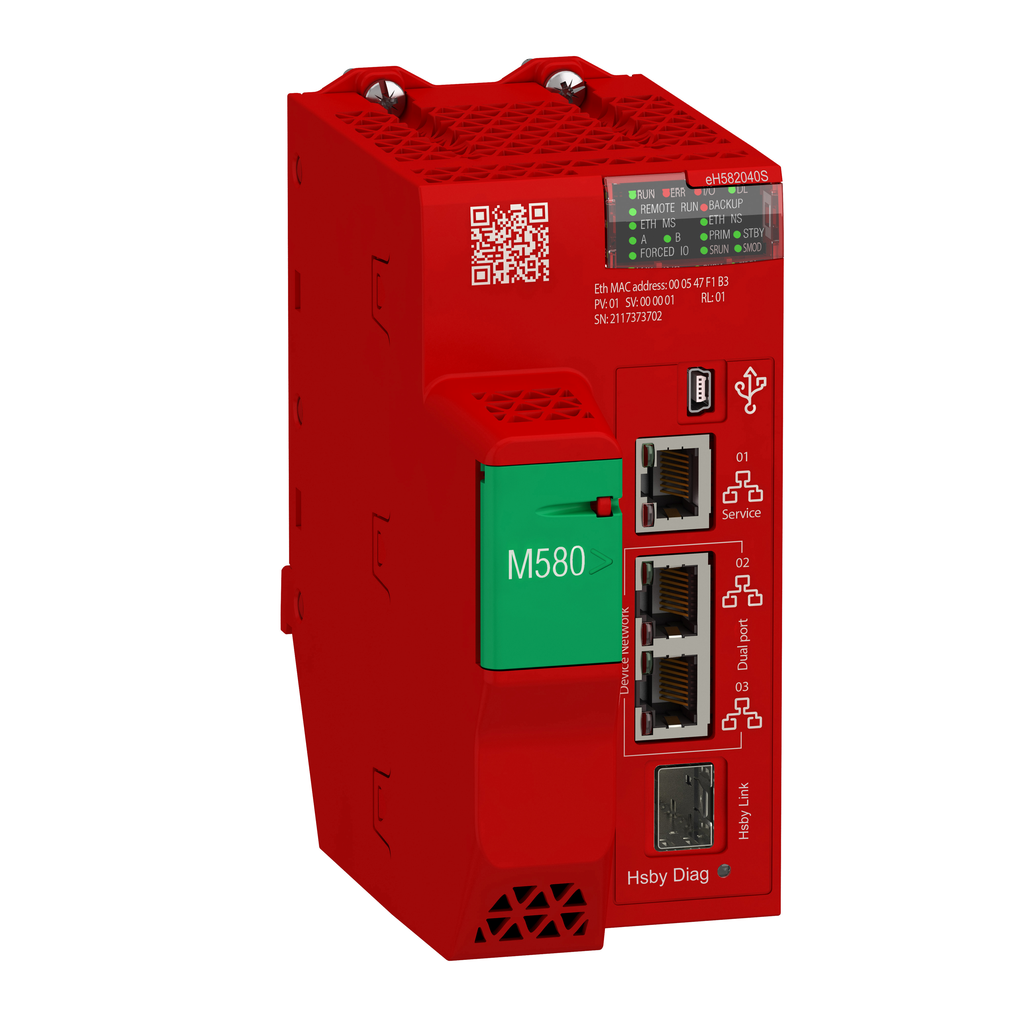

BMEH582040S
redundant safety processor, Modicon M580, 8MB, 61 Ethernet devices, 8 remote IO racks
This processor module is part of the Modicon M580 range, an offer of PACs and safety PLCs with built-in Ethernet. This redundant processor is equipped with ethernet TCP/IP and mini B USB integrated connection ports. It offers 7,63,800 hours of MTBF. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 and TUV. It is suitable for rack mount. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data. Modicon M580 ePAC is the controller which can help hybrid manufacturers achieve better, measurable and earlier ROI.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon M580 |
|---|---|
| Product Or Component Type | redundant processor module |
| Impregnation Material | conformal coated |
| Mtbf Reliability | 638000 H |
| Number Of Distributed Equipment | 61 |
| Communication Module Processor Capacity |
|
| Communication Service |
|
| Number Of Racks | 1 |
| Marking | CE |
| Current Consumption | 360 mA 24 V DC |
| Application Structure |
|
| Number Of Remote I/O Station | 8 - 2 remote drop |
| Integrated Connection Type |
|
| Application Specific I/O |
|
| Number Of Instructions Per Ms |
|
| Memory Description |
|
| Control Channels | programmable loops |
| Checks |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1312016EN_V3.pdf |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1312016EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -25-60 °C |
| Status Led |
|
| Standards |
|
| Product Certifications |
|
| Supply | internal power supply via rack |
| Shock Resistance | 15 gn |
| Environmental Characteristic |
|
| Vibration Resistance | 3 gn |
| Net Weight | 0.849 kg |
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Operating Altitude |
|
| Protective Treatment | conformal coating |
| Ip Degree Of Protection | IP20 |
| Safety Level |
|
