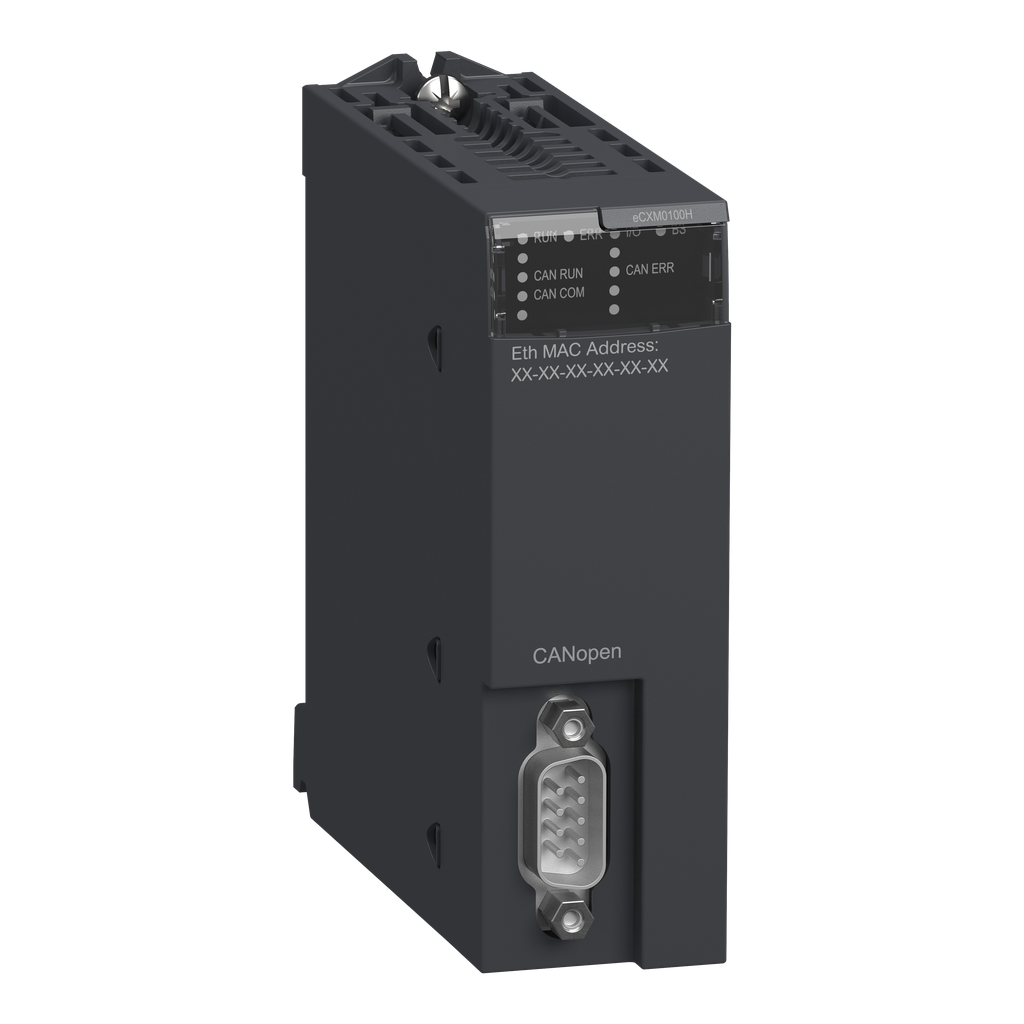

BMECXM0100H
communication module, Modicon X80, CANopen, master, hardened
Specifications
| Range Of Product | Modicon X80 |
|---|---|
| Product Or Component Type | CANopen communication module |
| Structure Type | open industrial fieldbus |
| [Us] Rated Supply Voltage | 24 V DC internal |
| Mode Of Transmission | NRZ |
| Transmission Support Medium | Profibus DP twisted shielded pairs cable |
| Transmission Rate |
|
| Current Consumption | 70 mA |
| Communication Service | implicit exchange of process data - 20...70 °C |
| Number Of Slave | 63 |
| Integrated Connection Type | Profibus DP - 1 SUB-D 9-pin female Profibus DP |
| Physical Interface | DB9 connector |
| Module Format | standard |
| Product Compatibility | M580 PLC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Product Certifications |
|
| Environmental Characteristic |
|
| Directives |
|
| Ambient Air Temperature For Storage | -45-85 °C |
| Relative Humidity | 10-95 % |
| Protective Treatment | conformal coating |
| Operating Altitude | <= 6561.68 ft (2000 m) |
