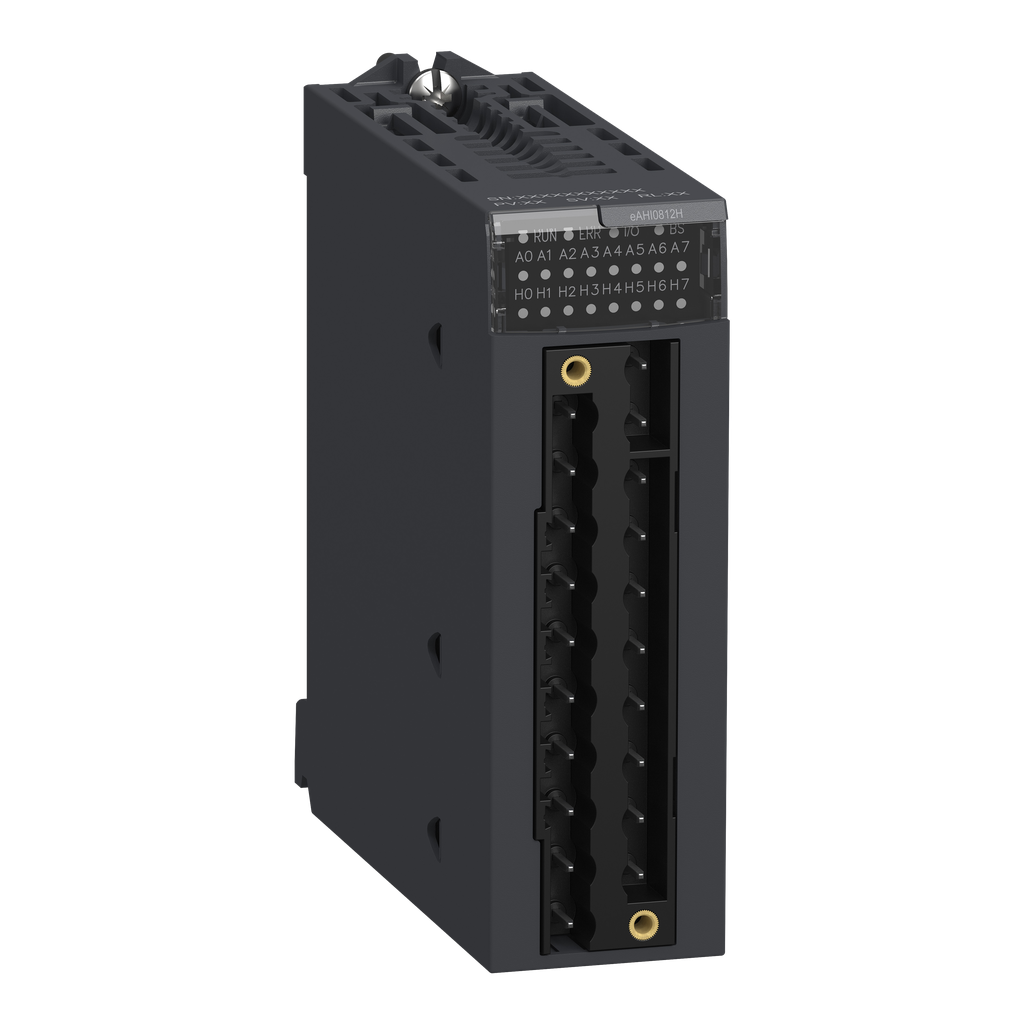

BMEAHI0812H
analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA, for severe environments
Specifications
| Range Of Product | Modicon X80 |
|---|---|
| Product Or Component Type | analog input module |
| Measurement Error |
|
| Temperature Drift | 50 ppm/°C |
| Analogue Input Resolution | 15 bits + sign |
| Net Weight | 0.233 kg |
| Input Impedance | 250 Ohm internally protective resistor (3.6 to 50 Ohm) |
| Electrical Connection |
|
| Topology | point-to-point |
| Input Output Isolation | isolated |
| Analogue Input Number | 8 |
| Isolation Voltage |
|
| Function Available | I/O mapping |
| Application Specific I/O | HART |
| Product Compatibility |
|
| Analogue Input Type | current 4...20 mA |
| Checks | broken wire detection |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070204EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Product Certifications |
|
| Environmental Characteristic |
|
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Operating Altitude |
|
| Protective Treatment | conformal coating |
