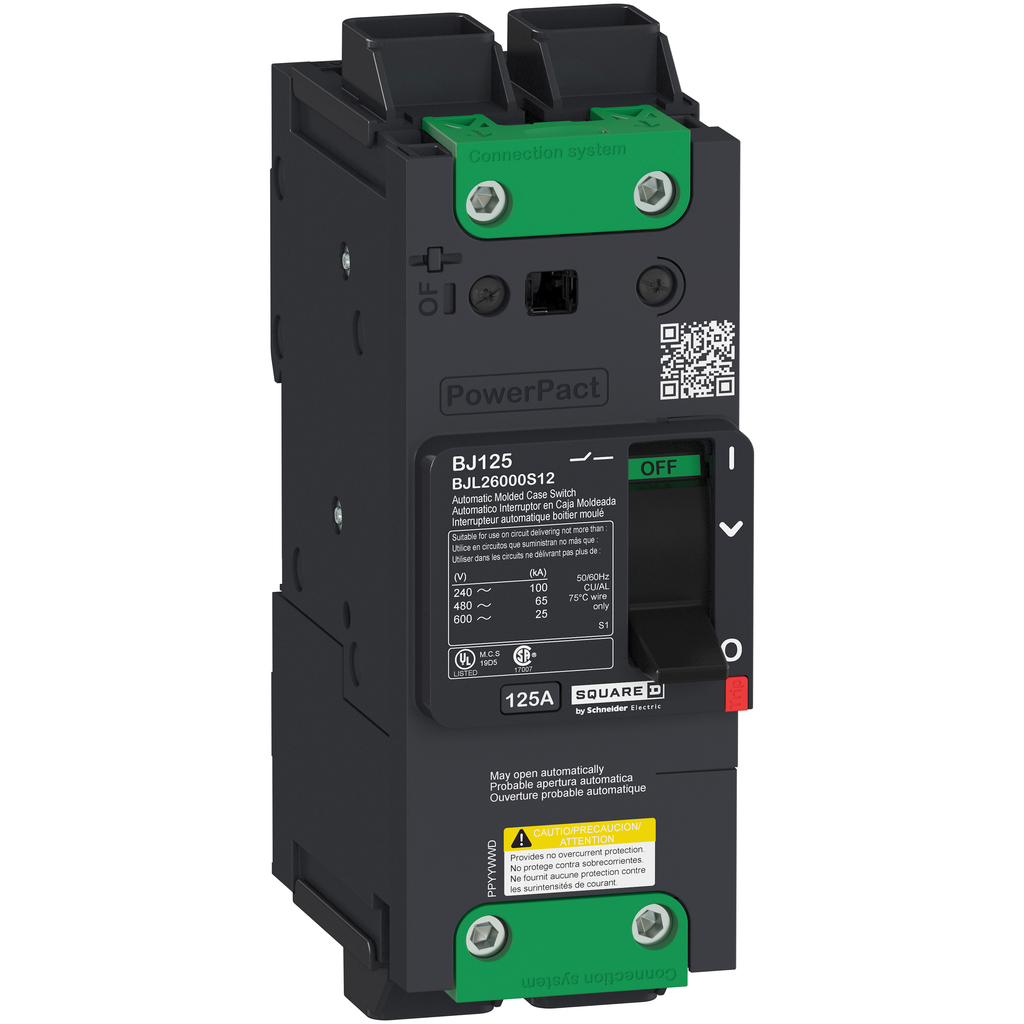

BDL26000S12
Automatic Switch, PowerPacT B, Unit Mount, 600 V AC, 125 A, 2 Pole, EverLink
Specifications
| Product Or Component Type | automatic switch |
|---|---|
| Product Name | PowerPact B |
| Range | PowerPact |
| Device Application | distribution |
| Mounting Mode |
|
| Height | 137 mm |
| Connection Pitch | 27 mm |
| Contact Position Indicator | yes |
| [Ue] Rated Operational Voltage | 600Y/347 V AC 50/60 Hz UL 489 |
| Tightening Torque |
|
| Breaking Capacity Code | D |
| 9 Mm Pitches | 6 |
| Magnetic Tripping Current | 1320-1320 A |
| Number Of Slots |
|
| Electrical Connection |
|
| Magnetic Hold Current | 880 A |
| Control Type | toggle |
| Wire Stripping Length | 20 mm |
| Mechanical Durability | 15000 cycles IEC 947-1 Annex K ed 5.2 |
| Short-Circuit Withstand |
|
| Electrical Durability | 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In |
| Local Signalling | for presence of auxiliary contacts flag (green) |
| Poles Description | 2P |
| Quantity Per Set | set of 1 |
| Line Rated Current | 125 A |
| Awg Gauge |
|
| Color | Gray RAL 7016) |
| Width | 36 mm |
| Depth | 89 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1610005EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free product |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards | UL 489 |
| Product Certifications | UL |
| Ambient Air Temperature For Storage | -50-85 °C |
| Quality Labels | CE |
| Operating Altitude |
|
