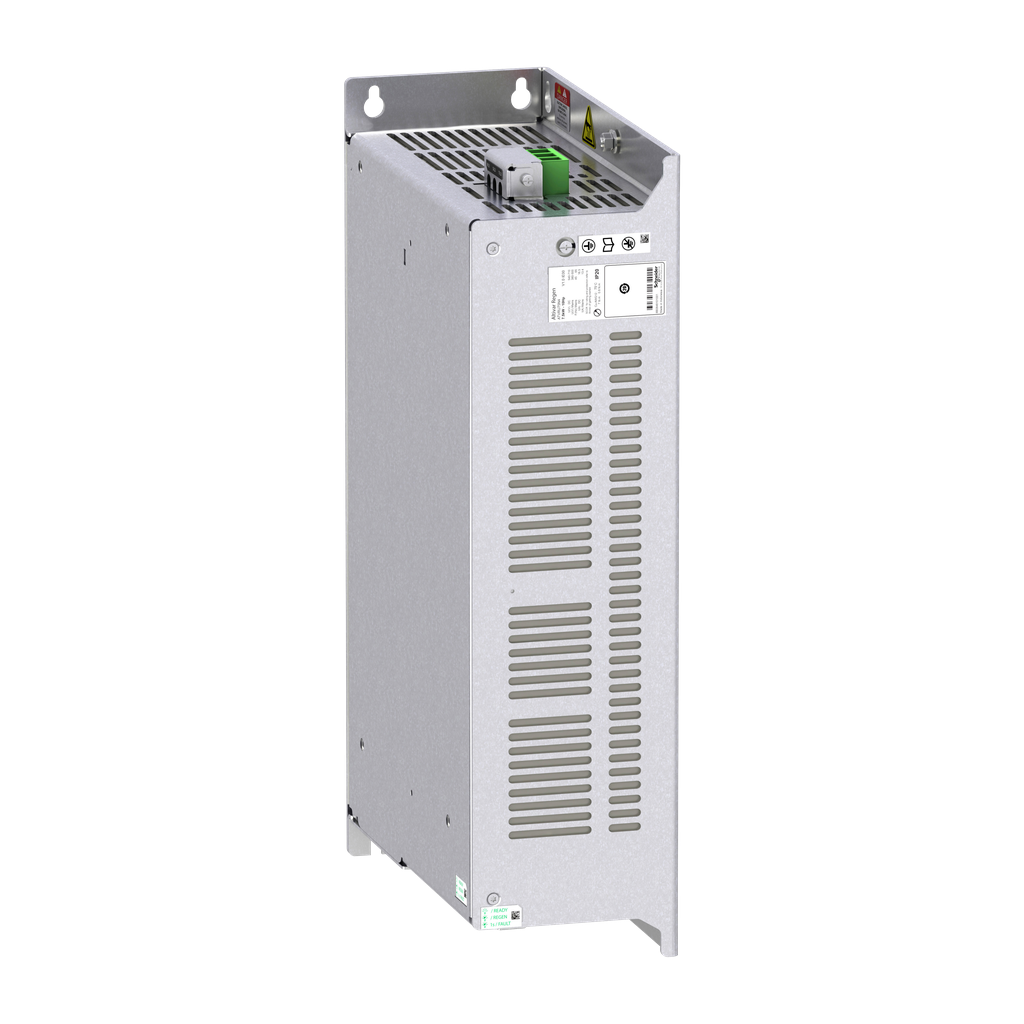

ATVRU75N4 - Regenerative unit, Altivar, 7,5kW, for Altivar variable speed drive

ATVRU75N4

Regenerative unit, Altivar, 7,5kW, for Altivar variable speed drive

This regenerative unit is an option for variable speed drives of Altivar range. It has built in EMC filter compliant with standard IEC 61800-3. Its rated power is equal to 7.5kW. The main function of the ATV Regen product is to provide an option to regenerate energy back to the AC supply. Its protection index is IP20. Its maximum operating temperature is 50 °C. It weighs 6kg and its dimensions are 80mm wide, 337mm high, 175mm deep. It is designed for heavy braking applications such as material working, material handling and hoisting with easy setting. It conforms to international standards IEC 61800-3 and IEC 61800-5-1. This regen unit is compatible with ATV320, ATV340 and ATV900 drives. The product is delivered in one package. It can installed in either vertical or horizontal position. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

[Ue] Rated Operational Voltage	456...778 V DC
Range Of Product	Altivar
Product Or Component Type	power module
[Us] Rated Supply Voltage	380...500 V - 15...10 %
Kw Rating	6.8 kW
Range Compatibility	Altivar Machine ATV340 Altivar Process ATV900 Altivar Machine ATV320
Device Application	energy regeneration
Network Frequency	45...65 Hz
Height	337 mm
Fixing Mode	by screws
Input Current	16.5 A 380 V AC voltage inputs continuous) 14.5 A 500 V AC voltage inputs continuous) 22.9 A 380 V AC voltage inputs transient for 60 s) 19.1 A 500 V AC voltage inputs transient for 60 s)
Phase	3 phase
Maximum Dc Bus Voltage	300...880 V DC
Net Weight	6 kg
Input Power	6.8 kW 380...500 V AC voltage inputs continuous) 10.2 kW 380...500 V AC voltage inputs transient for 60 s)
Output Current	13.4 A 380 V AC continuous) 11.9 A 500 V AC continuous) 18.4 A 380 V AC transient for 60 s) 15.4 A 500 V AC transient for 60 s)
Electrical Connection	control removable screw terminal block 0.5...1.5 mm², AWG 20...AWG 16 bottom) power supply removable screw terminal block 2.5...4 mm², AWG 12...AWG 10 top) DC bus removable screw terminal block 2.5...4 mm², AWG 12...AWG 10 bottom)
Width	80 mm
Depth	175 mm
Maximum Voltage Drop At Rated Load	3 %
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1604005EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1604005EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	cUL
Standards	IEC 61800-5-1 IEC 61800-3
Ambient Air Temperature For Operation	-10-50 °C without derating 50-60 °C with derating factor
Environmental Characteristic	chemical pollution resistance class 3C3 EN/IEC 60721-3-3 dust pollution resistance class 3S2 EN/IEC 60721-3-3
Pollution Degree	2 EN/IEC 61800-5-1
Ambient Air Temperature For Storage	-40-70 °C
Type Of Cooling	fan
Operating Altitude	<= 3280.84 ft (1000 m) without derating 3280.84...9842.52 ft (1000...3000 m) with power derating 1 % per 100 m
Operating Position	vertical or horizontal position
