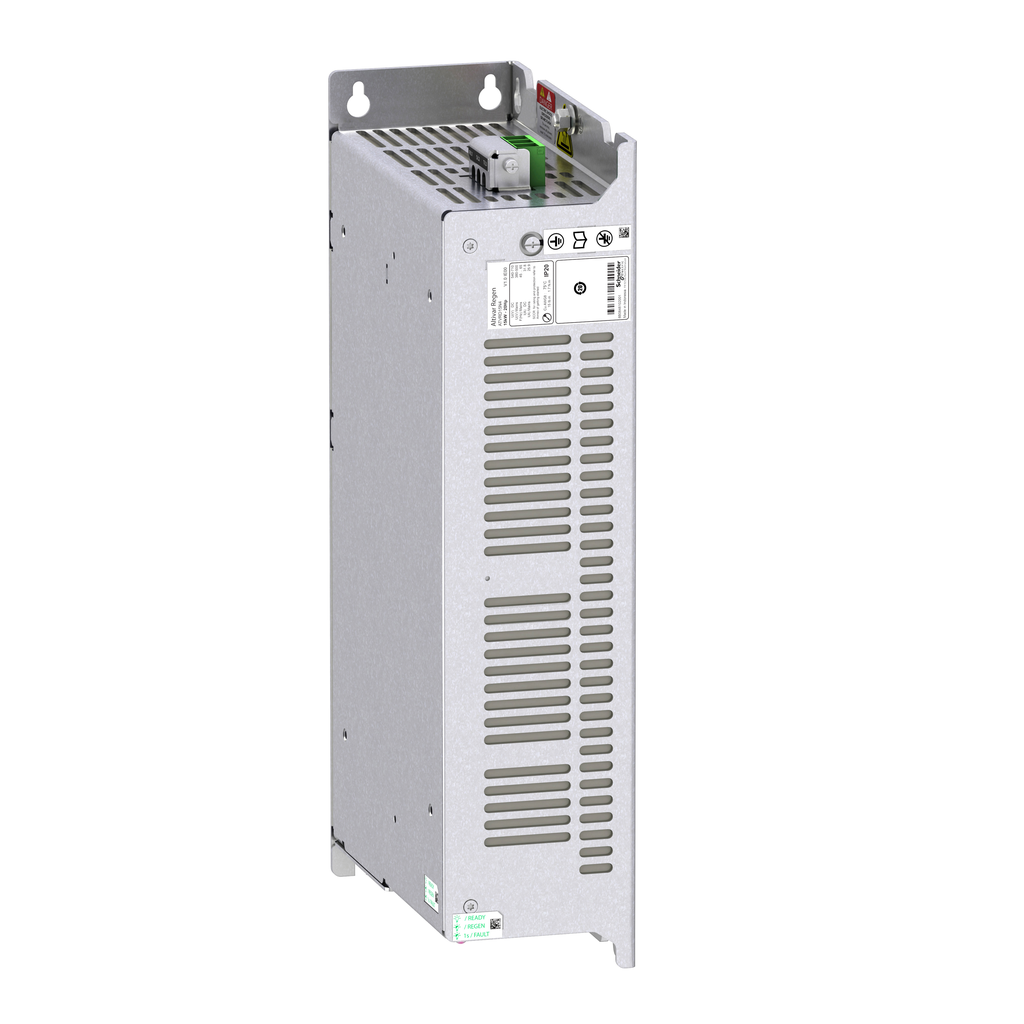

This regenerative unit is an option for variable speed drives of Altivar range. It has built in EMC filter compliant with standard IEC 61800-3. Its rated power is equal to 15kW. The main function of the ATV Regen product is to provide an option to regenerate energy back to the AC supply. Its protection index is IP20. Its maximum operating temperature is 50 °C. It weighs 11.5kg, and its dimensions are 105mm wide, 399mm high, 235mm deep. It is designed for heavy braking applications such as material working, material handling and hoisting with easy setting. It conforms to international standards IEC 61800-3 and IEC 61800-5-1. This regen unit is compatible with ATV320, ATV340 and ATV900 drives. The product is delivered in one package. It can installed in either vertical or horizontal position. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Brand: Schneider Electric
Add to Quote Catalogue[Ue] Rated Operational Voltage | 456...778 V DC |
---|---|
Range Of Product | Altivar |
Product Or Component Type | power module |
[Us] Rated Supply Voltage | 380...500 V - 15...10 % |
Kw Rating | 13.5 kW |
Range Compatibility |
|
Device Application | energy regeneration |
Network Frequency | 45...65 Hz |
Height | 399 mm |
Fixing Mode | by screws |
Input Current |
|
Phase | 3 phase |
Maximum Dc Bus Voltage | 300...880 V DC |
Net Weight | 11.5 kg |
Input Power |
|
Output Current |
|
Electrical Connection |
|
Width | 105 mm |
Depth | 235 mm |
Maximum Voltage Drop At Rated Load | 3 % |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1608001EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1608001EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications | cUL |
Standards |
|
Ambient Air Temperature For Operation |
|
Environmental Characteristic |
|
Pollution Degree | 2 EN/IEC 61800-5-1 |
Ambient Air Temperature For Storage | -40-70 °C |
Type Of Cooling | fan |
Operating Altitude |
|
Operating Position | vertical or horizontal position |
