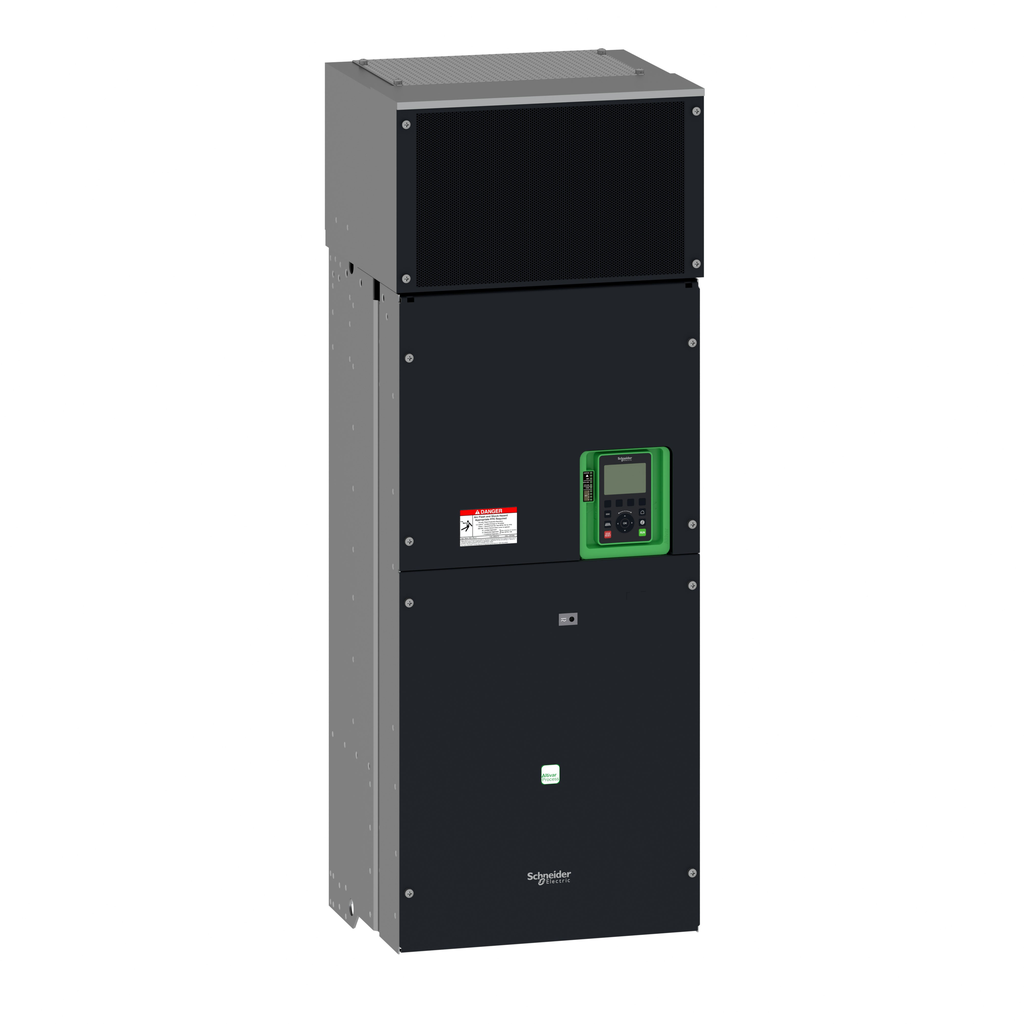

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 220kW / 350hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 160kW / 250hp for applications requiring significant overload (up to 150%). It weighs 172kg and its dimensions are, 440mm wide, 1195mm high, 380mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
Brand: Schneider Electric
Add to Quote CatalogueProspective Line Isc | 50 kA |
---|---|
Product Destination |
|
Line Current |
|
Emc Filter | integrated 50 m EN/IEC 61800-3 category C3 |
Asynchronous Motor Control Profile |
|
Variant | standard version |
Product Or Component Type | variable speed drive |
Apparent Power |
|
Switching Frequency |
|
Communication Port Protocol |
|
Product Specific Application | process and utilities |
Safety Function | STO (safe torque off) SIL 3 |
Maximum Horse Power Rating |
|
Supply Frequency | 50...60 Hz - 5...5 % |
Option Card |
|
Range Of Product | Altivar Process ATV600 |
Speed Drive Output Frequency | 0.1-500 Hz |
Ip Degree Of Protection |
|
Motor Power Kw |
|
[Us] Rated Supply Voltage | 380...480 V |
[Us] Rated Supply Voltage | 380...480 V - 15...10 % |
Discrete Input Logic | 16 preset speeds |
Type Of Cooling | forced convection |
Continuous Output Current |
|
Nominal Switching Frequency | 2.5 kHz |
Device Short Name | ATV630 |
Synchronous Motor Control Profile |
|
Discrete Input Logic |
|
Analogue Output Type |
|
Discrete Output Type |
|
Maximum Switching Current |
|
Exchange Mode | half duplex, full duplex, autonegotiation Ethernet/Modbus TCP |
Power Range |
|
Phase | 3 phase |
Net Weight | 172 kg |
Type Of Polarization | no impedance |
Relay Output Type |
|
Frequency Resolution |
|
Maximum Transient Current |
|
Analogue Input Number | 3 |
Motor Slip Compensation |
|
Discrete Output Number | 0 |
Method Of Access | slave Modbus TCP |
Discrete Input Number | 8 |
Local Signalling |
|
Linearity Error |
|
Number Of Addresses | 1-247 Modbus serial |
Width | 440 mm |
Transmission Rate |
|
Depth | 380 mm |
Analogue Input Type |
|
Discrete And Process Manufacturing |
|
Sampling Duration |
|
Electrical Connection |
|
Maximum Output Frequency | 500 kHz |
Height | 1195 mm |
Acceleration And Deceleration Ramps | linear adjustable separately from 0.01...9999 s |
Transmission Frame | RTU |
Relay Output Number | 3 |
Data Format | 8 bits, configurable odd, even or no parity |
Accuracy |
|
Connector Type |
|
Input Compatibility |
|
Permissible Temporary Current Boost |
|
Mounting Mode | wall mount |
Analogue Output Number | 2 |
Physical Interface |
|
Minimum Switching Current | relay output R1, R2, R3 5 mA 24 V DC |
Refresh Time | relay output R1, R2, R3)5 ms +/- 0.5 ms) |
Enclosure Mounting | wall mounted |
Isolation | between power and control terminals |
Output Voltage | <= power supply voltage |
Quantity Per Set | 1 |
Braking To Standstill | by DC injection |
Discrete Input Type | DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) |
Protection Type |
|
Supply |
|
Mercury Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Upgradeability | Upgraded components available |
Rohs Exemption Information | Yes |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Power Dissipation In W |
|
Standards |
|
Insulation Resistance | > 1 MOhm 500 V DC for 1 minute to earth |
Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
Vibration Resistance |
|
Noise Level | 66 dB 86/188/EEC |
Regulation Loop | adjustable PID regulator |
Operating Altitude |
|
Overvoltage Category | III |
Pollution Degree | 2 |
Electromagnetic Compatibility |
|
Ambient Air Temperature For Operation |
|
Volume Of Cooling Air | 860 m3/h |
Marking | CE |
Pollution Degree | 2 EN/IEC 61800-5-1 |
Noise Level | 73 dB |
Ambient Air Temperature For Storage | -25-70 °C |
Relative Humidity | 5-95 % without condensation IEC 60068-2-3 |
Operating Position | vertical +/- 10 degree |
Maximum Thdi | <48 % full load IEC 61000-3-12 |
