ASILUFC5 - AS-Interface communication module, TeSys Ultra, 24VDC

ASILUFC5

AS-Interface communication module, TeSys Ultra, 24VDC

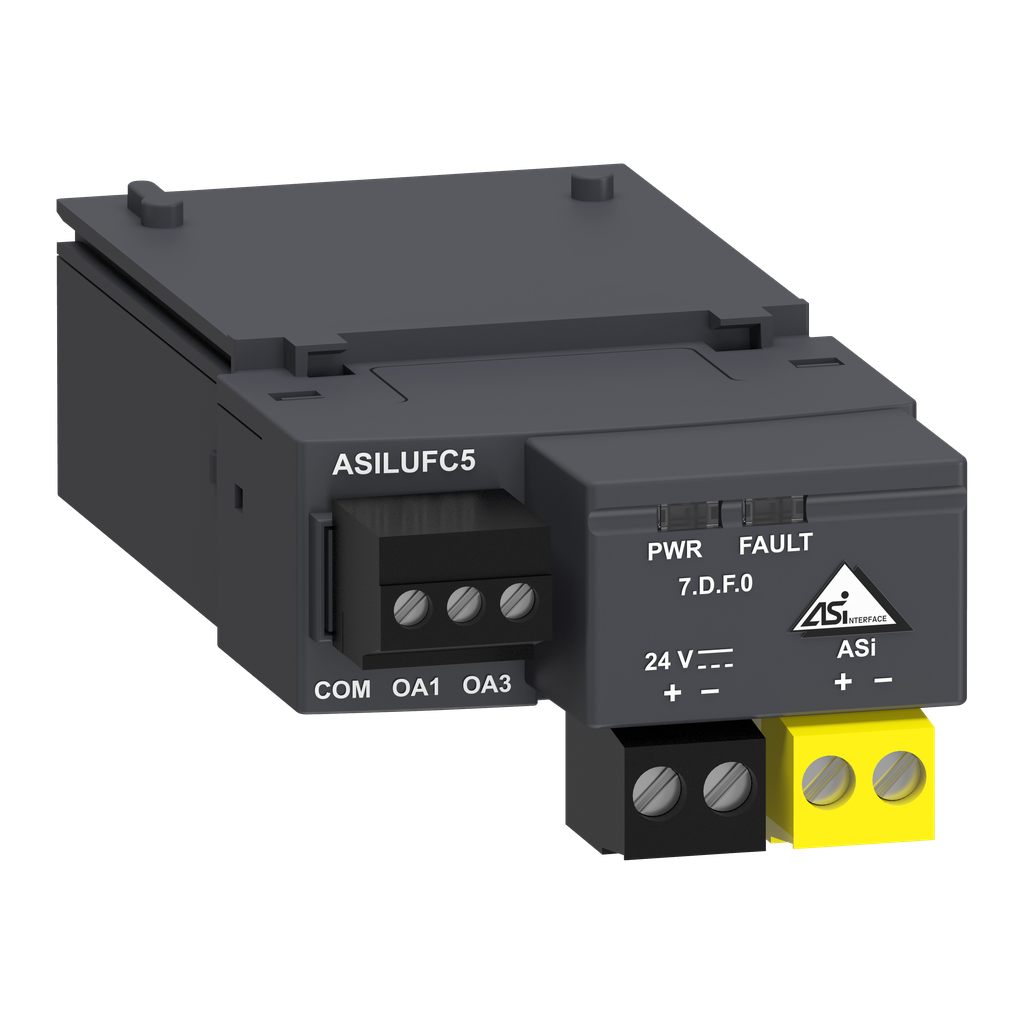

TeSys U communication module for AS-Interface bus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a yellow 2-point plug-in connector for connection to an AS-I network (limited to 31 slaves), a black 2-point plug-in connector for connection to an external 24V DC supply. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 2 LEDs indicating 24V voltage presence (PWR) and communication status (FAULT). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Compatibility	TeSys (TeSys Ultra) LUB non reversing power base TeSys (TeSys Ultra) LU2B reversing power base
Product Or Component Type	communication module
Product Compatibility	LUCA LUCL LUCD LUCM LUCC LUCB
Device Application	communication
Device Short Name	ASILUF
Range	TeSys
Warranty	18 months
Addressing	31 slaves
Function Available	AS-Interface communication module
Communication Port Protocol	Profibus DP
Mounting Mode	plug-in
Switching Current Capacity	500 mA 24 V against short-circuits solid state
Bus Type	AS-Interface
Local Signalling	2 LEDs front panel
Current Consumption	200 mA 24 V output 25 mA normal operation 30 mA fault operation
Connection Pitch	3.81 mm output 5.08 mm input
Tightening Torque	input 0.5-0.6 N.m 3.5 mm output 0.2-0.25 N.m 2.5 mm
Connections - Terminals	input screw clamp terminals 1 0.2-1.5 mm²flexible without cable end input screw clamp terminals 1 0.2-1.5 mm²rigid without cable end input screw clamp terminals 1 0.25-1.5 mm²flexible with cable end input screw clamp terminals 2 0.2-1 mm²flexible without cable end input screw clamp terminals 2 0.2-1 mm²rigid without cable end input screw clamp terminals 2 0.25-1 mm²flexible with cable end input screw clamp terminals 2 0.5-1 mm²flexible with cable end output screw clamp terminals 1 0.14-1 mm²flexible without cable end output screw clamp terminals 1 0.14-1 mm²rigid without cable end output screw clamp terminals 1 0.25-0.5 mm²flexible with cable end output screw clamp terminals 1 0.25-1 mm²flexible with cable end output screw clamp terminals 2 0.14-0.5 mm²rigid without cable end output screw clamp terminals 2 0.14-0.75 mm²flexible without cable end output screw clamp terminals 2 0.25-0.34 mm²flexible with cable end output screw clamp terminals 2 0.5-0.5 mm²flexible with cable end
Mounting Location	front side
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: Cancer - www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ip Degree Of Protection	IP20 conforming to IEC 60529
