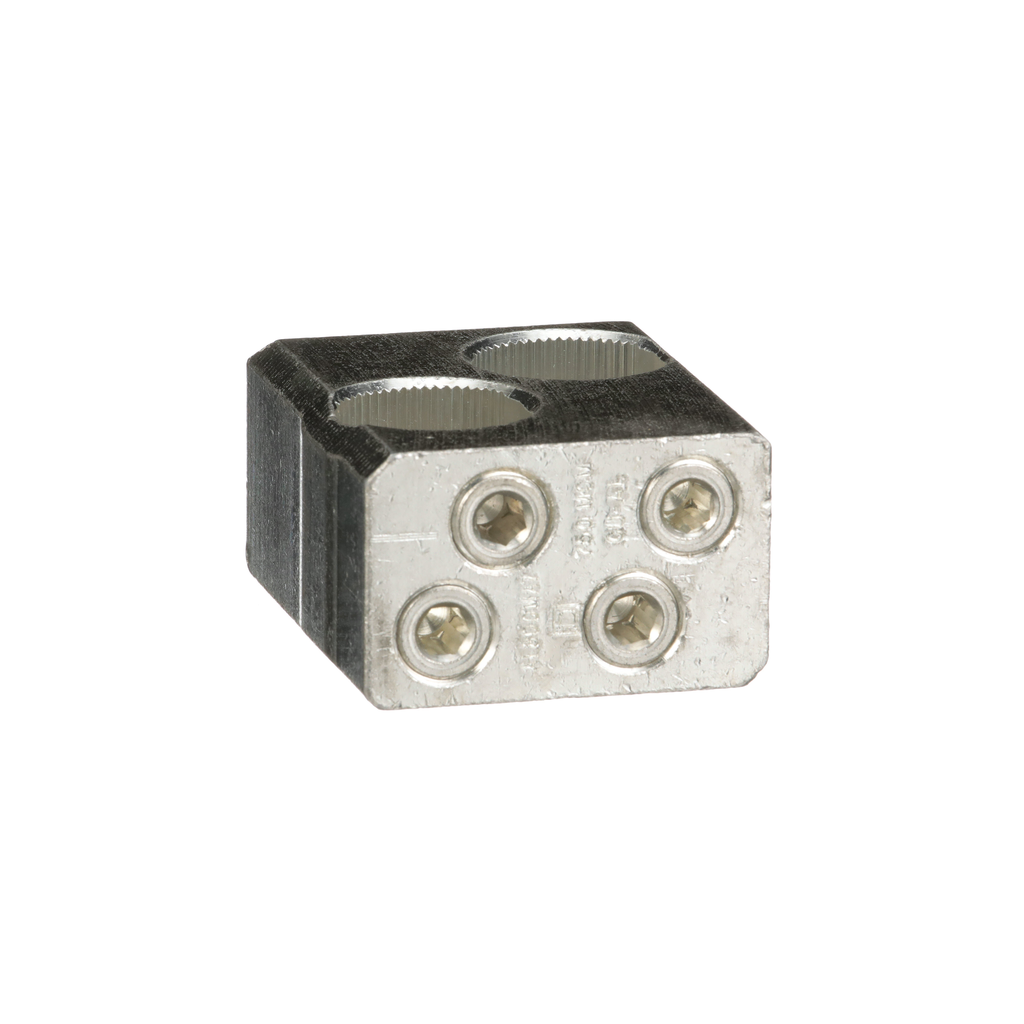

AL800MA7
Connector accessory, MA, ME, MH, MX molded case circuit breakers, 800A, 500 to 750kcmil, mechanical lug kit, aluminum
This lug kit is a connector accessory for PowerPact MA, ME, MH, MX, circuit breakers. This is an aluminum tapped lug kit. This accessory has a rated current of 800 amps. The lug kit are for terminal connection and will accept a wire size of 500 to 750 kcmil. This product complies with UL standards. This lug can be used only on standard circuit breakers. This lug has a tightening torque of 34 Nm and a cross section of 240 to 400mm.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Warranty | 18 months |
|---|---|
| Tightening Torque | 34-34 N.m 240-400 mm² (500...750 kcmil) |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407012EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407012EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- Supplemental Digest 11: Obsolescent and Obsolete Circuit Breakers (2019) - SD_0100CT1902_SEC-11 (pdf)
- Obsolescent and Obsolete Circuit Breakers Supplemental 177 (2018) - Legacy+SD_0100CT1502_SEC-11 (pdf)
- Lug Kit Installation Instructions for Legacy MA, MH, ME, and MX Circuit Breakers - 48040-648-04_k214 (pdf)
