AL30FD

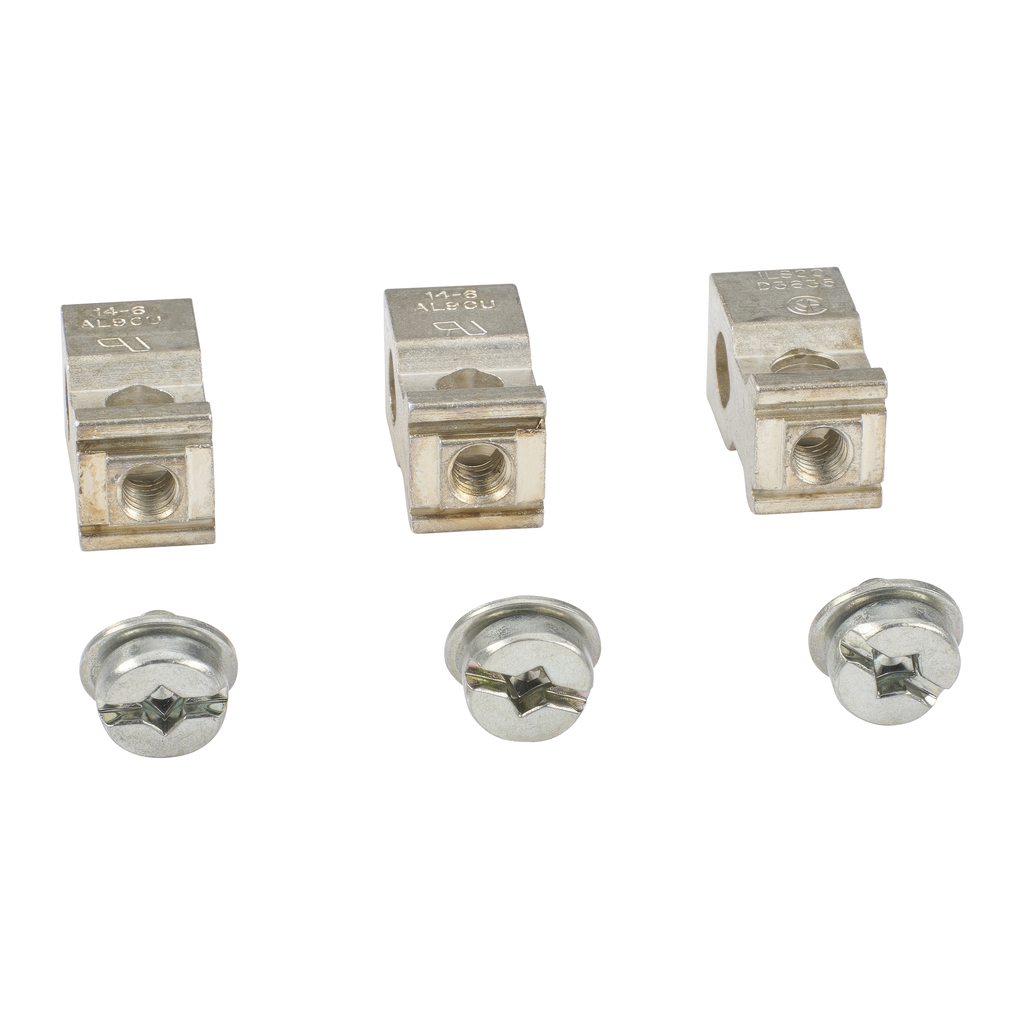

FA / LA CIRCUIT BREAKER MECHANICAL LUG KIT (3)
Specifications
| Quantity Per Set | set of 3 |
|---|---|
| Warranty | 18 months |
| Tightening Torque | 3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6) |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1610005EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free product |
Documents
- Spec Sheet
- Square D E-Frame Thermal Magnetic Circuit Breakers - Catalog - 0515CT2101 (pdf)
- Digest Catalog 09: Panelboards - 0100CT1901_SEC-09 (pdf)
- PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf)
- Powerbus Busway Brochure - 5600BR1201 (pdf)
- EDB, EGB and EJB Ring Terminal Circuit Breakers - Installation Instructions - 48840-221-01 (pdf)
- AL30FD, AL100FD, and CU100FD Lug Kits Installation Instructions - 48840-098-02 (pdf)
