AL2500RK

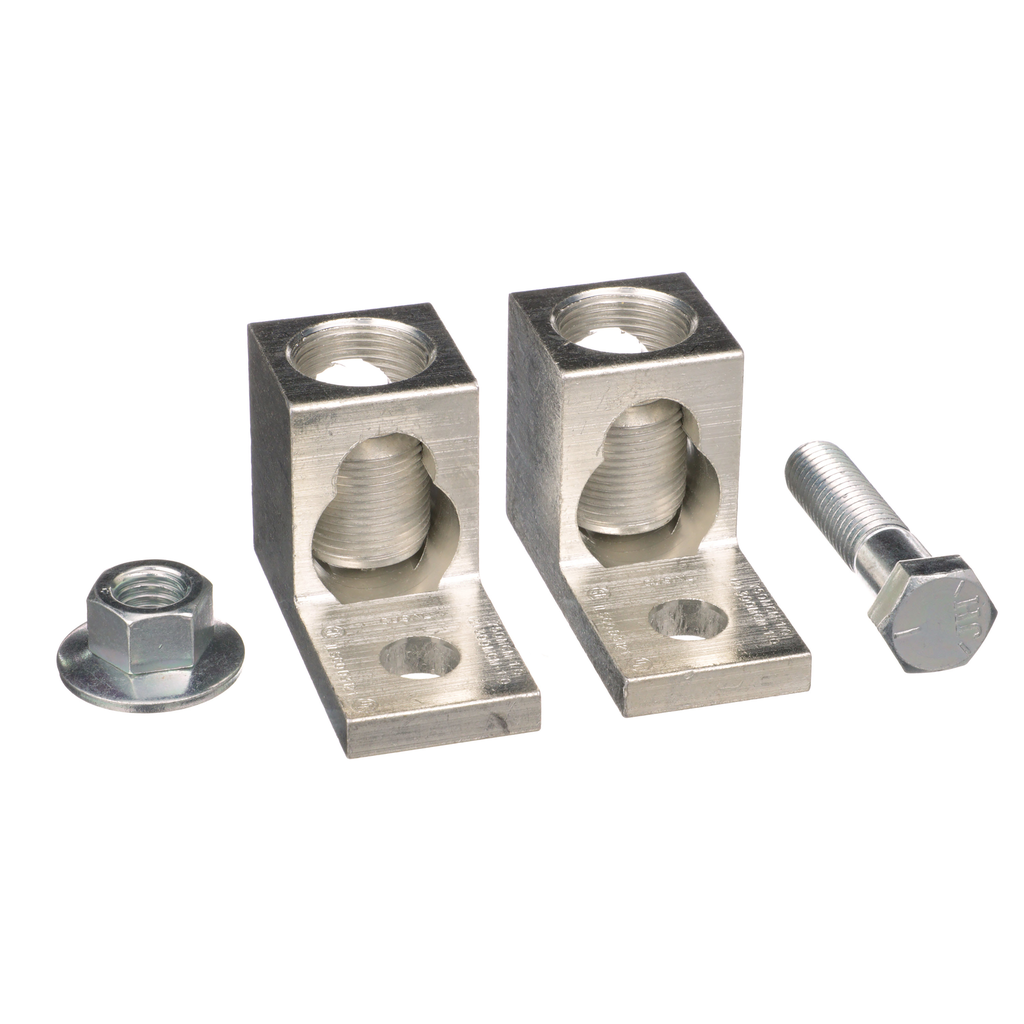

Circuit breaker accessory, PowerPacT R, lug kit, mechanical, 2500A, 1/0 AWG to 750kcmil, unit mount, Al, qty 2
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This mechanical lug kit is for PowerPacT R circuit breakers. These aluminum lugs are rated for 2500A. The lugs accept 1/0 AWG to 750kcmil aluminum and copper conductors. These lugs comply with UL and CSA standards. Common Design Features, Mounting holes, door trim, and handle accessories.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Compact NS1600b...3200 |
|---|---|
| Circuit Breaker Type | R-Frame |
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 2 |
| Product Or Component Type | mechanical lug |
| Warranty | 18 months |
| Line Rated Current | 2500-2500 A |
| Mounting Mode | unit mount |
| Tightening Torque |
|
| Kcmil Size | 750 kcmil |
| Location Of Connection |
|
| Awg Gauge | AWG 1/0...750 kcmil aluminium/copper |
| Product Compatibility | PowerPact R PowerPact |
| Material | aluminium |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407012EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407012EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
Documents
- Spec Sheet
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- 9422CMP Cable Operating Mechanisms Installation Instructions - 30072-452-43_03 (pdf)
- Lug Kits for R-Frame Circuit Breakers (Catalog Numbers AL2500RK, YA2000R3, YA2000R5, and YA2500R7) Installation Instructions - 48049-255-02 (pdf)
- Altivar 61 and 71 VHP Drives Installation Instructions - 30072-454-92_01 (pdf)
