AL1200R53K

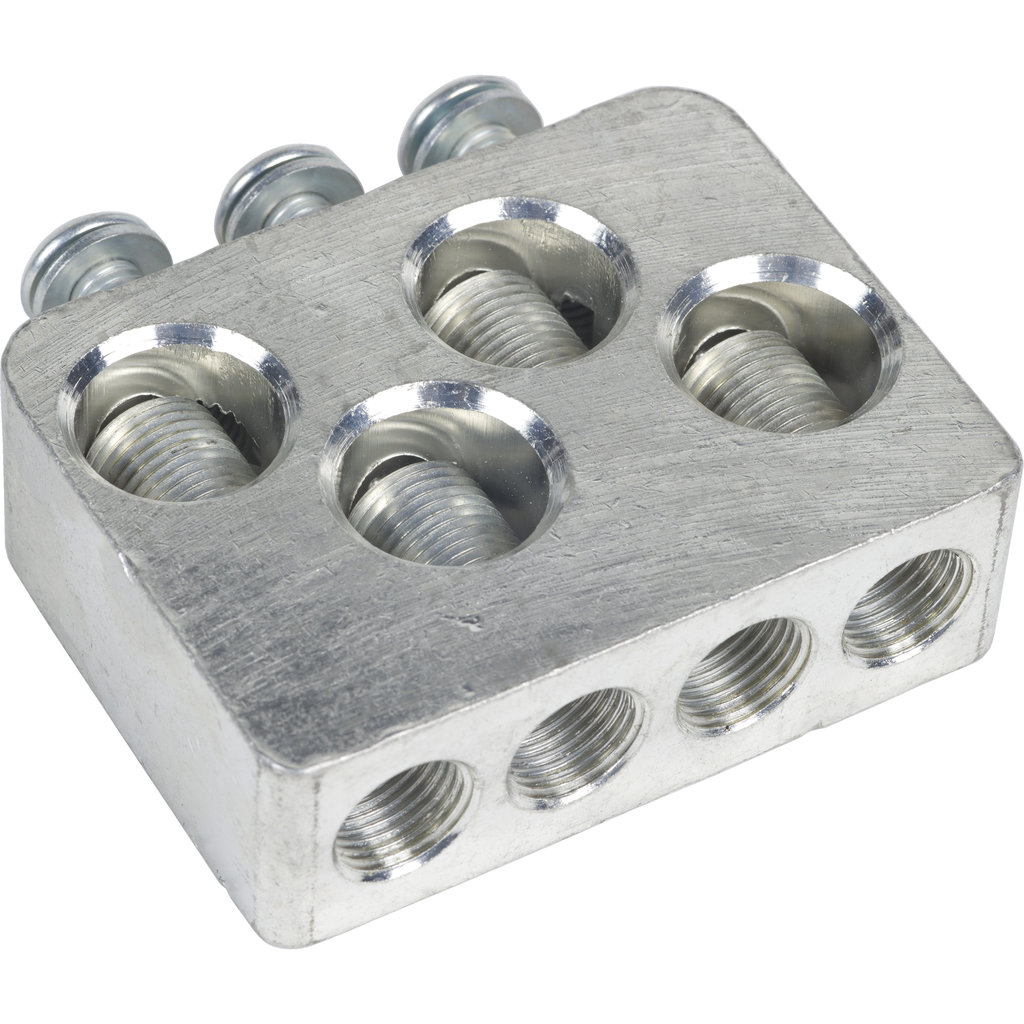

Circuit breaker accessory, PowerPacT R, lug kit, mechanical, 1200A, 3/0 AWG to 600kcmil, Al
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This mechanical lug kit is for PowerPacT R circuit breakers. These aluminum lugs are rated to 1200A. The lugs accept 3/0 AWG to 600kcmil aluminum and copper conductors. These lugs comply with UL and CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | PowerPact R |
|---|---|
| Circuit Breaker Type |
|
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 1 |
| Product Or Component Type | mechanical lug |
| Warranty | 18 months |
| Line Rated Current | 1200-1200 A |
| Tightening Torque | 50-50 N.m 95-300 mm² (AWG 3/0...600 kcmil) |
| Poles Description | 3P |
| Kcmil Size | 600 kcmil |
| Location Of Connection |
|
| Awg Gauge | AWG 3/0...600 kcmil aluminium/copper |
| Product Compatibility | PowerPact R PowerPact |
| Material | aluminium |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407012EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407012EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications |
|
