AL1200P6KU4
Connector accessory, PowerPacT P, circuit breakers, 1200A, mechanical lug kit, aluminum

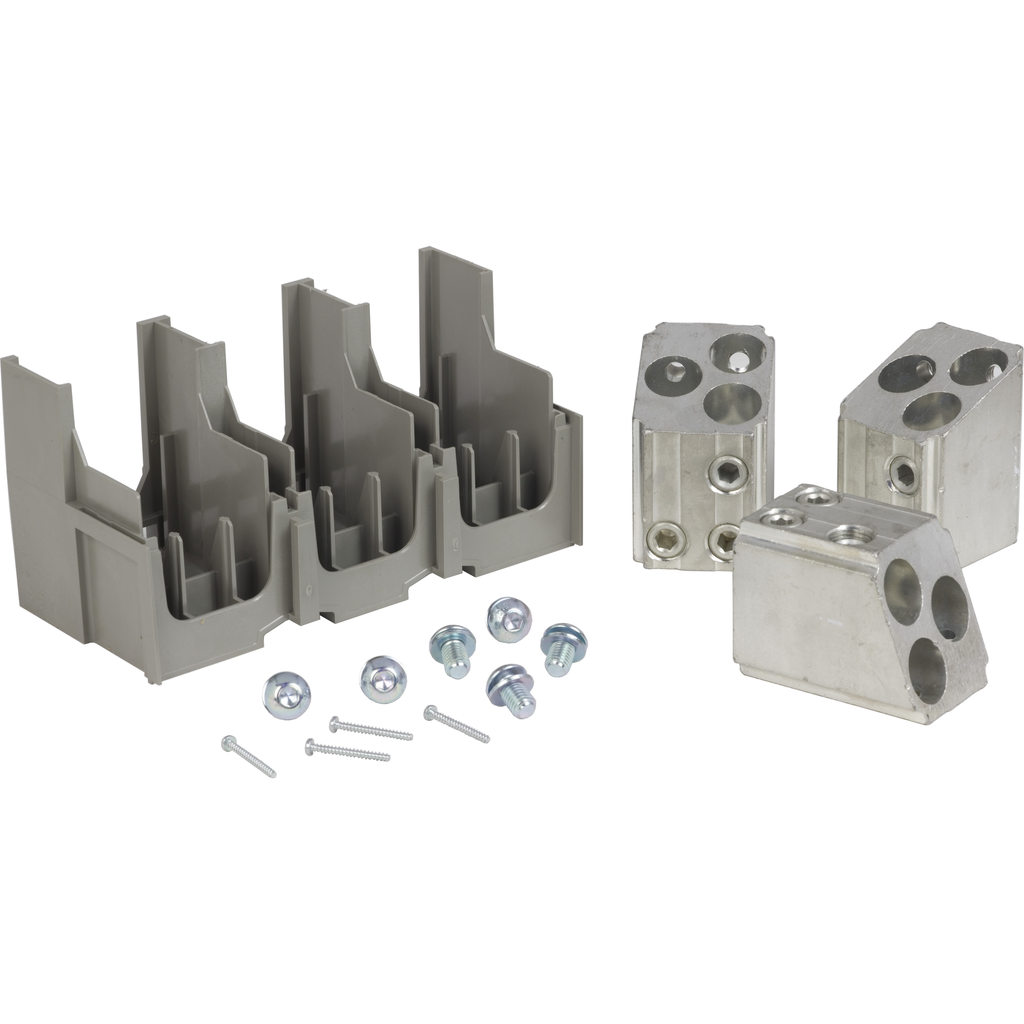

This lug kit is a connector accessory for PowerPact P-Frame circuit breakers. This is an aluminum lug kit for unit mounted circuit breakers. This accessory has a rated current of 1200 amps. The lug kit are for terminal connection and will accept a wire size of AWG 3/0 with a 600 kcmil. This product complies with UL and CSA standards. This lug can be used only on standard circuit breakers. This lug has a tightening torque of 50-50 Nm, with a cable cross section of 95-300 mm².
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | PowerPact P |
|---|---|
| Circuit Breaker Type | P-frame |
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 3 |
| Product Or Component Type | mechanical lug |
| Warranty | 18 months |
| Line Rated Current | 1200-1200 A |
| Mounting Mode | unit mount |
| Tightening Torque | 50-50 N.m 95-300 mm² (AWG 3/0...600 kcmil) |
| Kcmil Size | 600 kcmil |
| Location Of Connection |
|
| Awg Gauge | AWG 3/0...600 kcmil aluminium/copper |
| Product Compatibility | PowerPact P PowerPact |
| Material | aluminium |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407012EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407012EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications |
|
