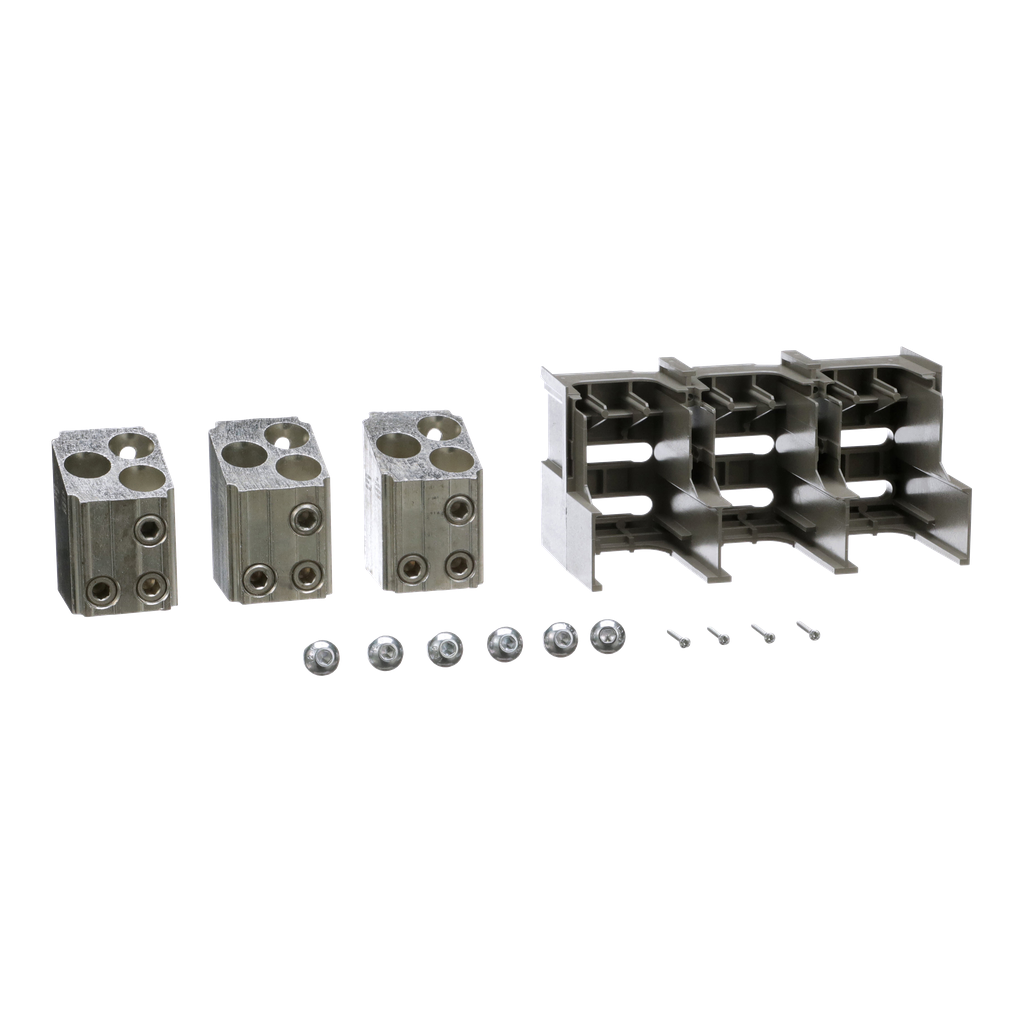

The current-limiting attributes of PowerPact P-Frame, AL1200P6KU, Lug kit for the circuit breakers provide greater protection for downstream devices by limiting the let-through current in the event of a fault. These current limiting circuit breakers ship with a label that identifies them as UL/CSA Current-Limiting Circuit Breakers. These lug kits come in sets of 4.The PowerPact Advantage. Proven Performance, Industry-leading circuit breaker innovation and protection for heavy-duty commercial and industrial applications. Smart, Integrated metering options provide a cost-effective solution to reduce energy consumption, optimize energy costs, and improve energy availability for your facilities. Flexible, Full range of thermal-magnetic and electronic trip molded case circuit breakers from 15 A to 3000 A, delivering the ratings, configurations, and operators for your unique applications. Simple, Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. Common Design Features, Mounting holes, door trim, and handle accessories.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | PowerPact P |
---|---|
Circuit Breaker Type | standard |
Accessory / Separate Part Category | connection accessory |
Quantity Per Set | set of 3 |
Product Or Component Type | mechanical lug |
Warranty | 18 months |
Line Rated Current | 1200-1200 A |
Mounting Mode | wall-mounted |
Tightening Torque | 50-50 N.m 95-300 mm² (AWG 3/0...600 kcmil) |
Kcmil Size | 600 kcmil |
Awg Gauge | AWG 3/0...600 kcmil aluminium/copper |
Material | aluminium |
Mounting Location |
|
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI1407012EN |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1407012EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Product Certifications |
|
